ABOUT THIS YACHT

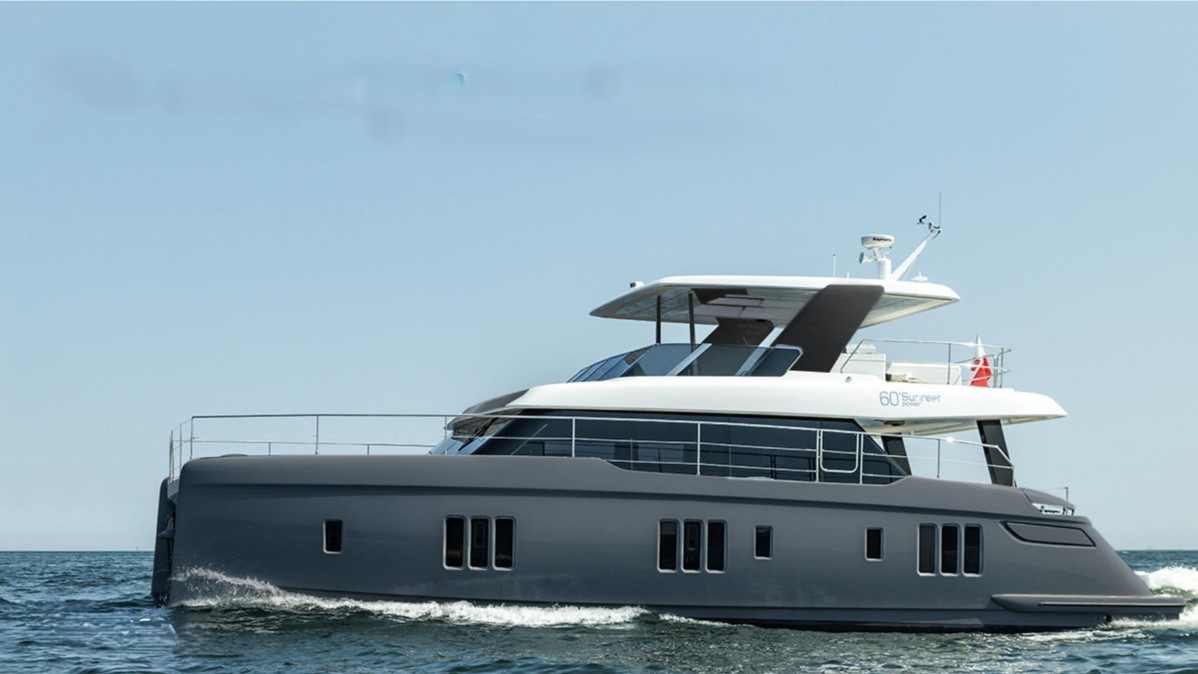

2023 SUNREEF 60 POWER I THE ULTIMATE LUXURIOS CAT

TRANSATLANTIC

257 SQM of living space

Guest - 8 plus Crew

4 Cabins for guests, each with bathroom

2 Crew cabins, each with bathroom

Galley in the hull



Williams SPORT JET 460 INCLUDED !!!





MODEL VERSION

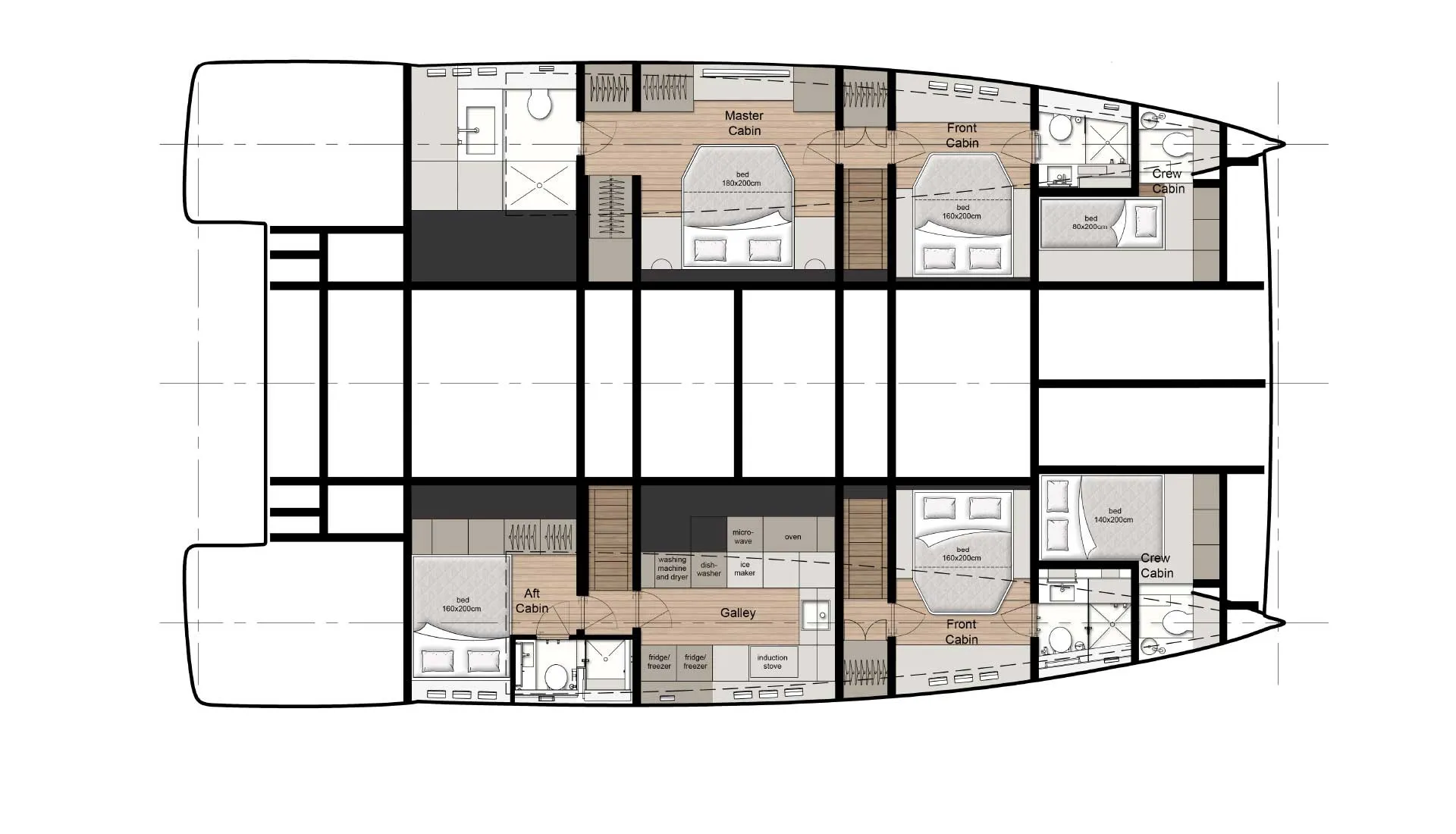

Custom layout with galley down, master cabin, 3x Guest cabins and 2 crew cabins

Structure and hull finishing:

• Hulls, deck, flybridge and all structural bulkheads made of E-glass sandwich laminate in infusion technology.

• Hull external osmosis protection provided by vinylester resin

Bimini

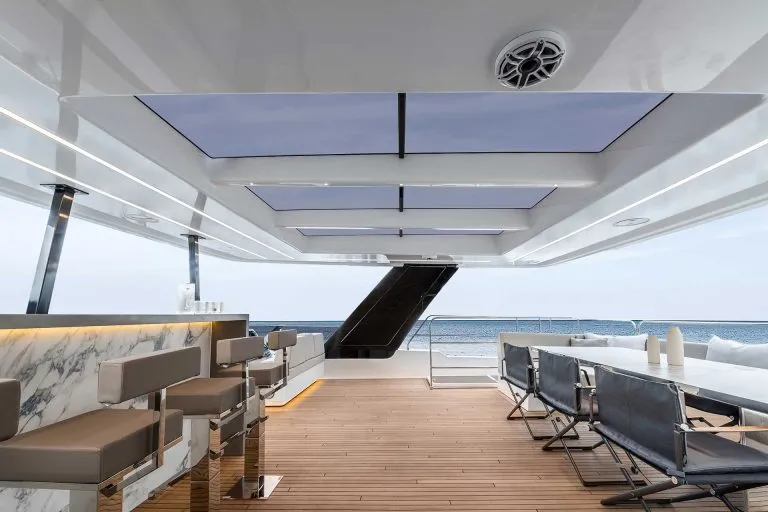

• Full composite hard top bimini on the flybridge with integrated lights

MAIN MACHINERY, PROPULSION AND MANEUVERING EQUIPMENT

Propulsion plant

• 2 x Main engines 850hp (MAN i6-850) with pair of propellers

• Engine speed controls on flybridge and in saloon

• Engine room sound insulation

• Rope cutters on the propeller shafts

• Water sensors for fuel filters

• Throttling valves on gearboxes

• 2 electric pumps for changing the oil

Power Supply System

• Marine type generator 1 1 KV A, 5 0H z , 2 3 0V

• Second Generator 19KVA, 50Hz, 230V

Mooring and tools

• Windlass REGAL 2300W 24V

• Galvanized anchor CQR 66kg

• 80m chain (diameter 13mm DIN)

• Additional anchor 20kg + 20m galvanized chain (diameter 10mm)

• Mooring set (8x fender, 4x mooring rope)

• 50m tow line

• Steering wheel

Manouvering equipment

• 1 x Bow thrusters

DECK GEAR

• Flush hatches on deck

• Rigid wave breaking window on flybridge

• Garage for water toys

• Swim ladder on the skirts

• Hatch at the top of the stairway between cockpit and flybridge

• Hydraulic gangway

• Hydraulic platform 1000kg capacity

• Cockpit windshield - transparent canvas

• Additional 2x electric mooring aft winch

• Shower head on the cockpit ceiling with mixing valve

• Covers set (navigation station, flybridge tables)

• Extension of the shade on the bimini on the aft

INTERIOR

Curtains and blinds

• Curtains and backdrop for entrance door

• Manual roman blinds in cabins

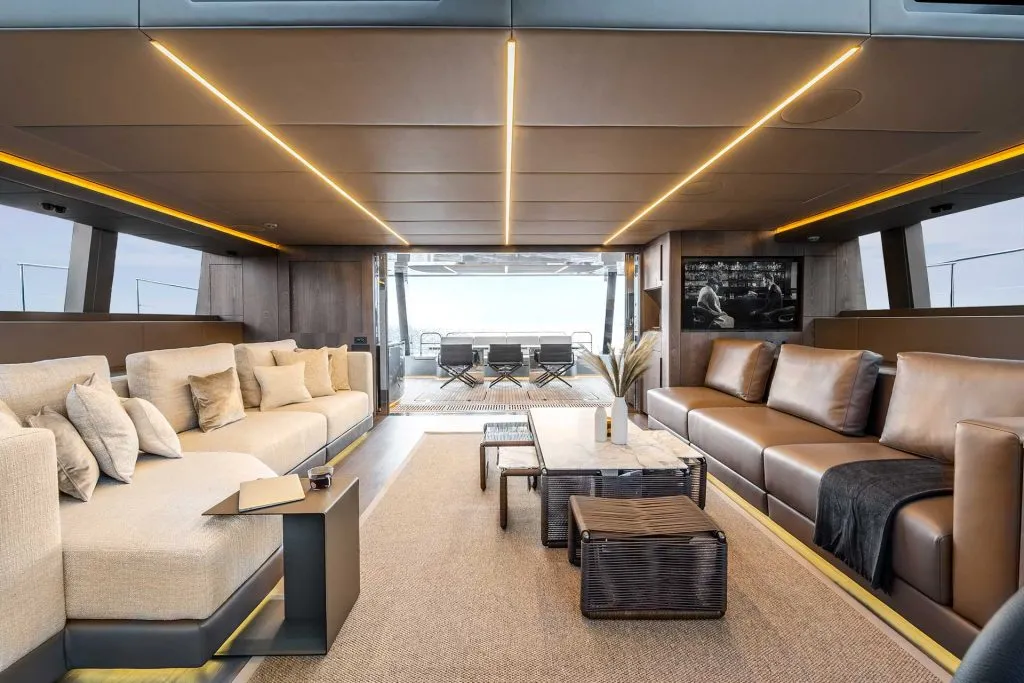

• Electric blinds (plisse) in saloon

• Electrically operated recessed blinds or plisses in the saloon

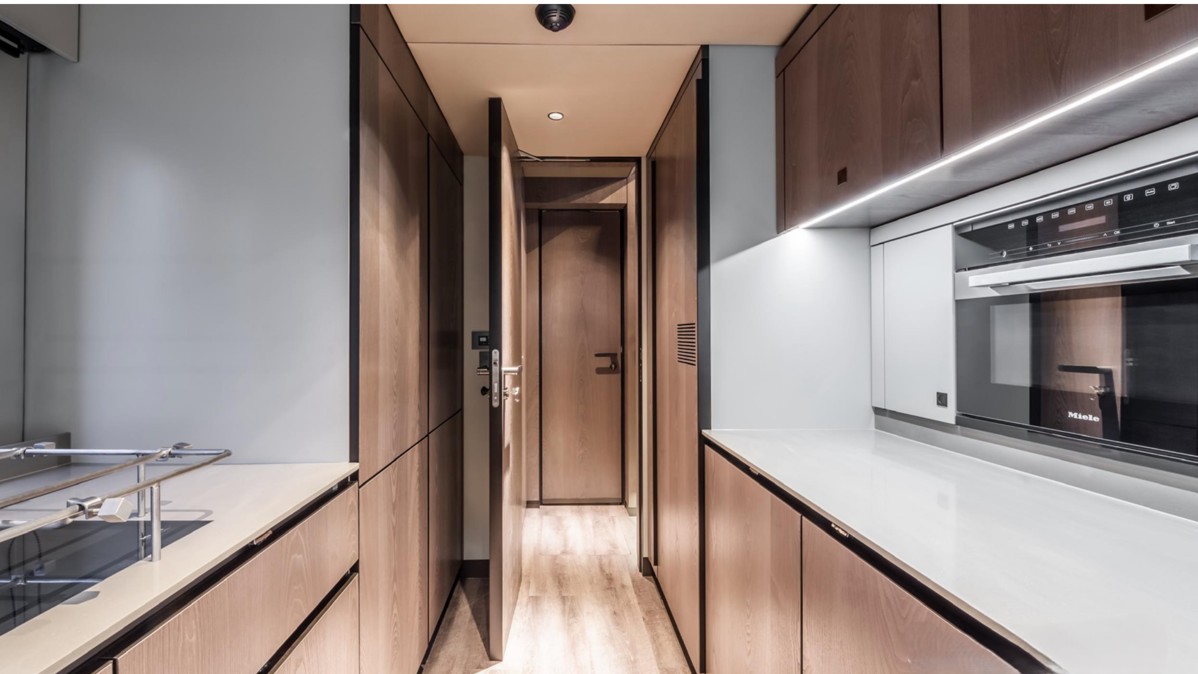

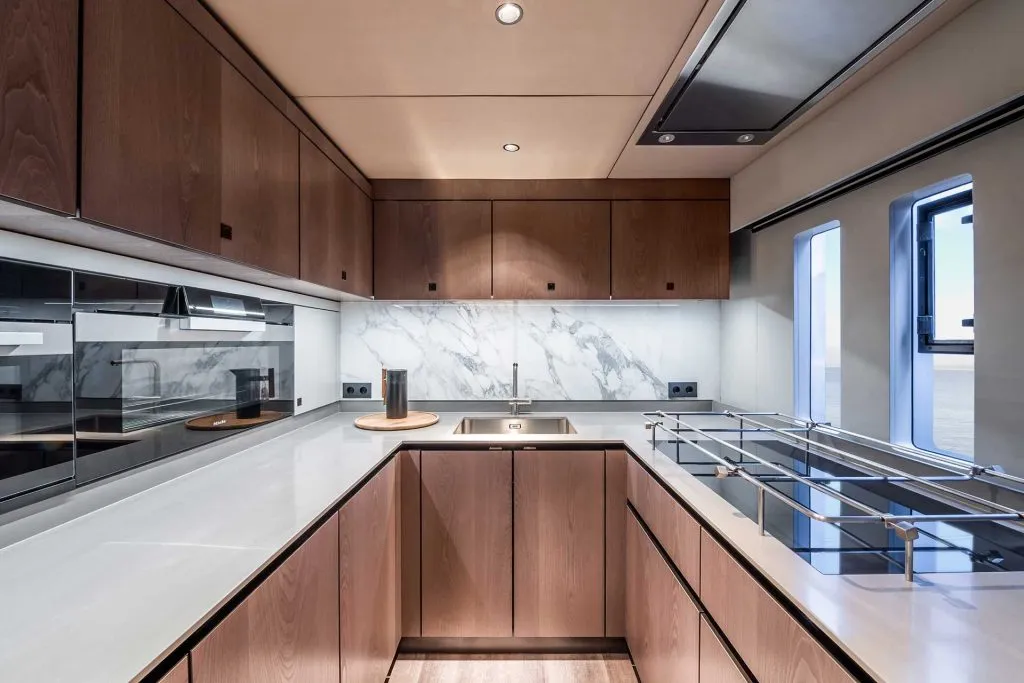

Galley and household appliances MIELE

• Refrigerator with freezer

• Dishwasher

• Electric oven

• Cooker with hood

• Washer & dryer

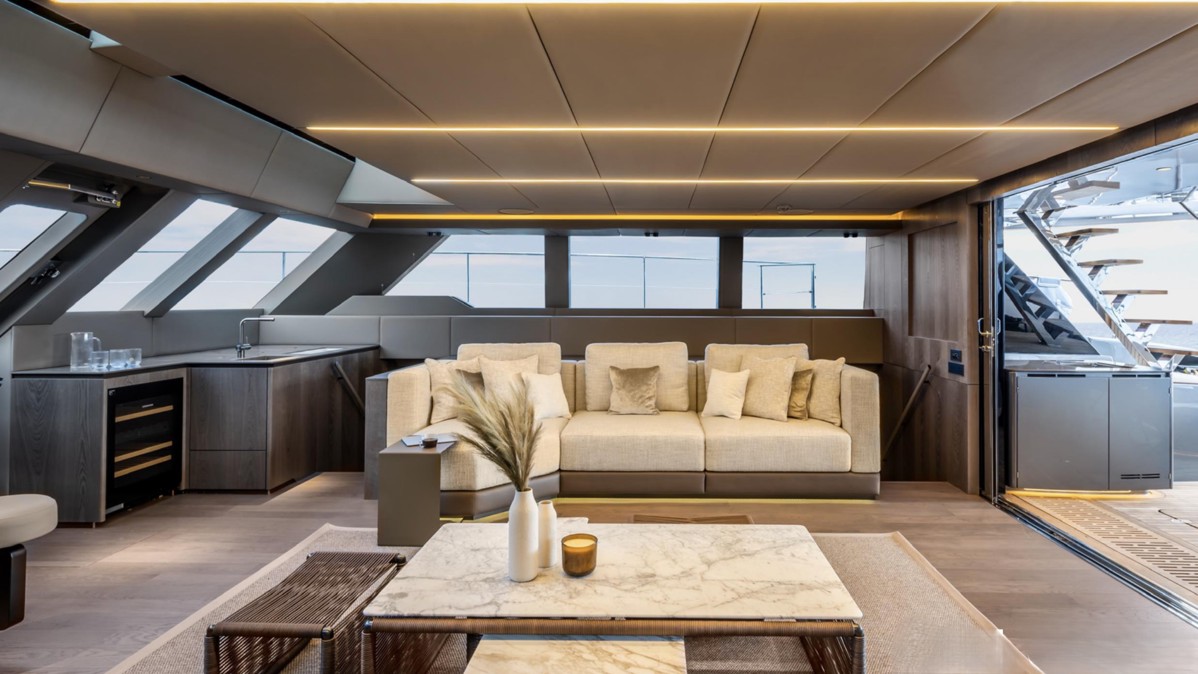

• Wine cooler for 32 bottles mounted in saloon

• Additional fridge, sink in saloon

• Storage for the coffee machine and fridge in saloon

Materials

• Interior deck floor with metalized lacquer and cockpit bar

• Master cabin and guest cabis countertops finished with sintered quartz

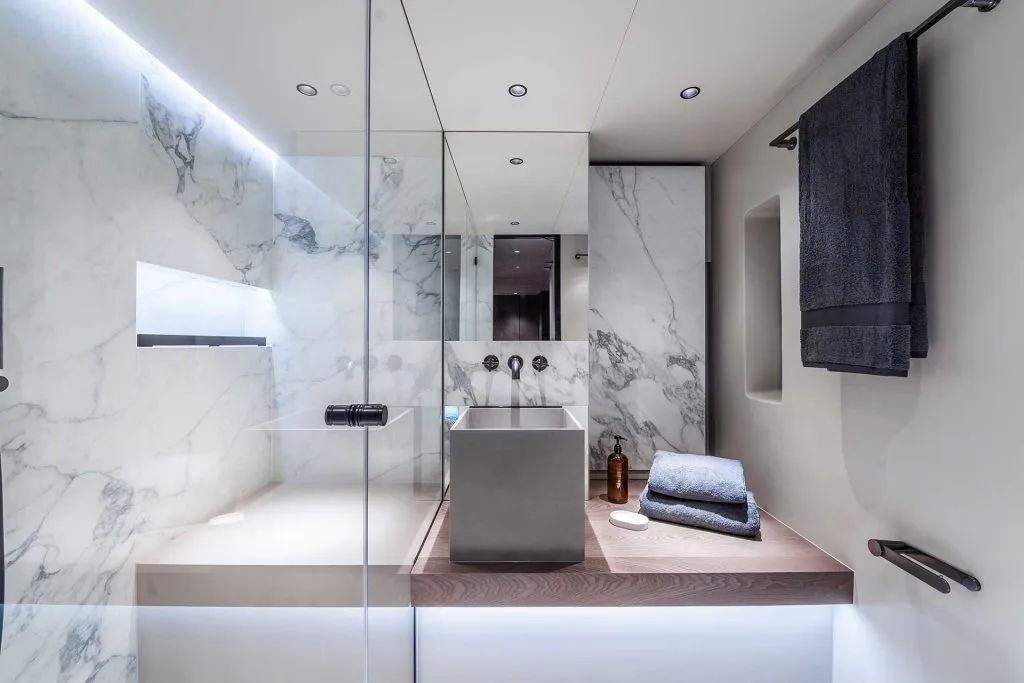

• Master bathroom and guest bathrooms floor with sintered quartz

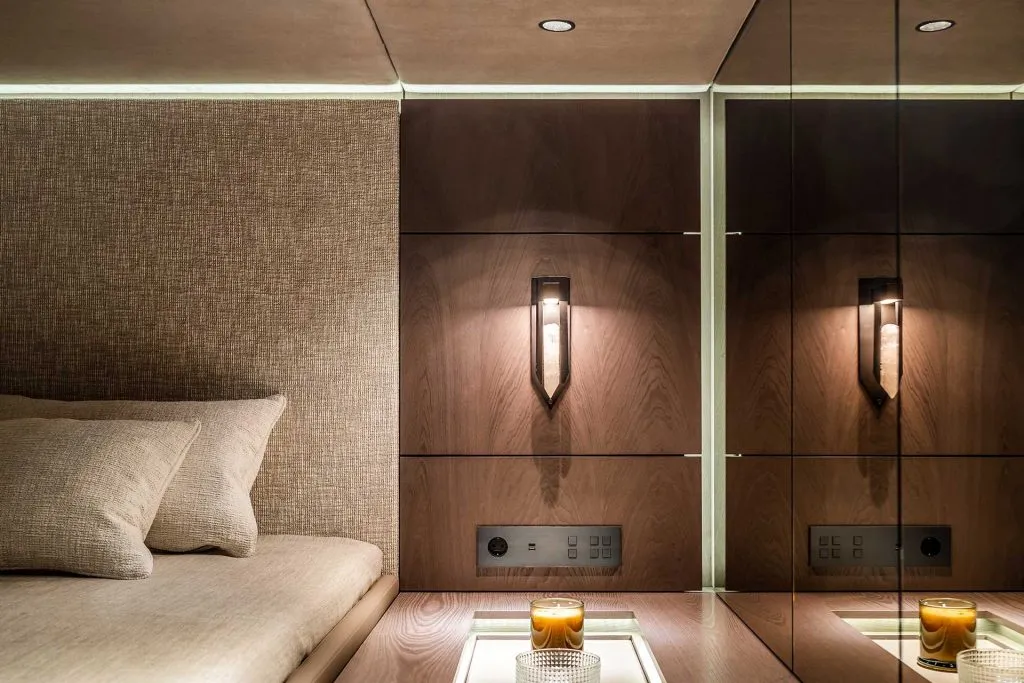

• Christopher Boots lamps

EXTERIOR

External hull painting system

• Antifouling (with Epoxy primer)

• Flybridge in lwhite gelcoat

• Side of hulls with metalized lacquer

Deck covering

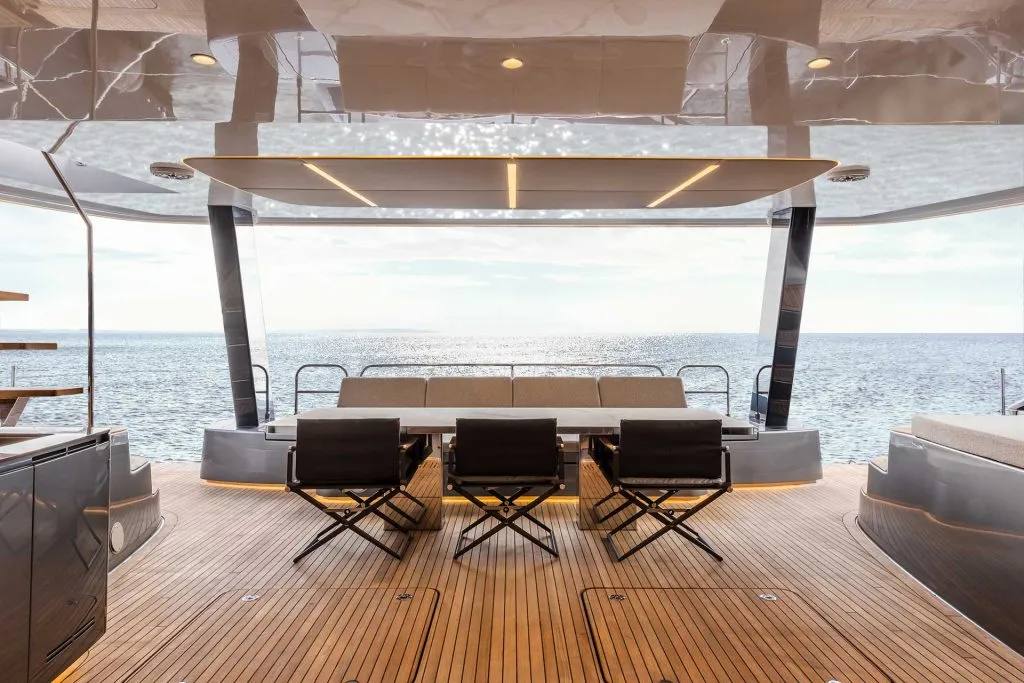

• Cockpit and skirts floor covered with teak

• Deck covered with teak and installed flush hatches

• Flybridge covered with teak

• Hydraulic platform covered with teak

External Doors

• Sliding door from cockpit to saloon (manual operated) - Stainles steel frames

• Pantograph electric door to front deck

Open decks furniture

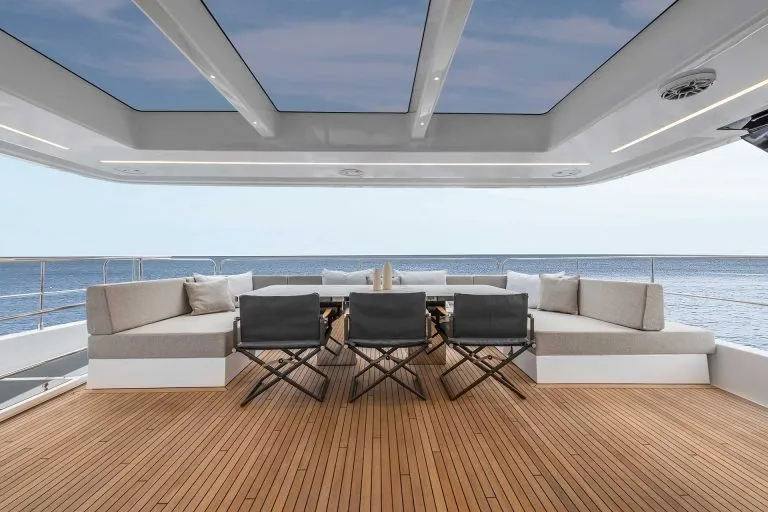

• Sunpad area on aft flybridge

• Extension of the shade on the bimini on the aft

• Multifunctional full-size rest-lounge with foldable backrest

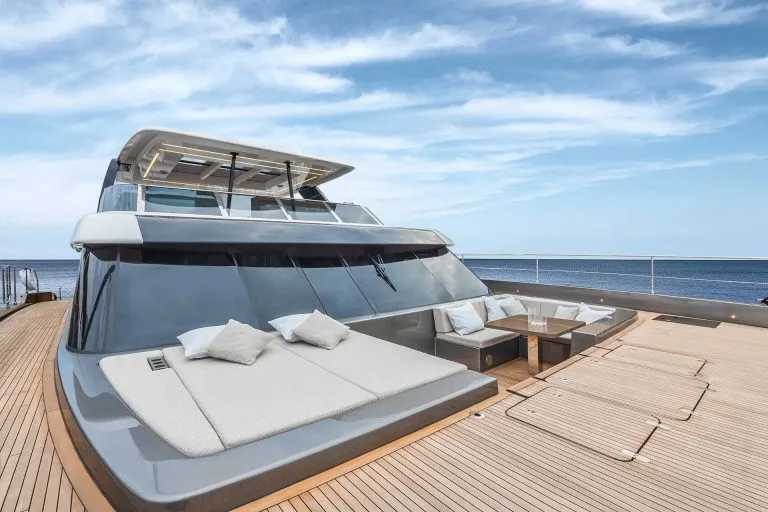

• Front deck cushions

• Bar module in cockpit with sink with retractable faucet for the bar module, low fridge and ice maker

• Bar module on the flybridge with sink with retractable faucet for the bar module, low fridge, ice maker and Electric Stainless Steel BBQ

• Diving bottles holder

• Quartz on cockpit an flybride table

• Upgraded navigation station seating

• Upgraded aft seating area and extended table on fly

• Dotty Medium beige exterior pouf

• Chairs upgrade from standard to Dedon Seax Lounge Chair (7pcs)

PIPING SYSTEMS

Fuel System

• 2 x Fuel tanks 5 000 l each

Bilge System

• 4 Electrical bilge pumps and 2 manual bilge pump

• 2 x Forepeak bilge pumps (one (1) per each forepeak)

• piping and valves for bilge pumping

Fresh Water

• Fresh water tank with level indicators (volume 800 l)

• Fresh water pressurizing pump

• 2 x Fresh water heaters (80 l capacity each)

• Fresh water inlet (Connection between the boat’s water network and the shore water supply)

• Hand shower on deck

• Shower head on the cockpit ceiling with mixing valve

• Watermaker 280l/h - 220V

• Watermaker 95l/h - 24V

• Additionnal fresh water tank

Deck Wash System

• Pressurized fresh water outlet on cockpit (female quick-coupling snap connector)

• Fresh water outlet for washing the deck

• Retractable hose (5mb) in chain locker for chain wash

Sanitary Drains System

• Blackwater tanks 500l

• Electric toilets 24V in bathrooms with fresh water flush

HVAC System

• Air conditioning system - capacity 160 000 BTU/h

• Air conditioning for forepeaks

ELECTRICAL SYSTEMS

AC distribution system

• Main Switchboard AC 230V @ 50 Hz, 1 phase with extension panel

• Victron Quattro 24V/5000W/120A

• Shore power inlet (32A 230V 50Hz inlet) & shore power cord (1x 20m 3-cond)

• One 230V socket per cabin, two 230V socket in salon, dining area and kitchen, 2x USB socket in each cabin and 2x in saloon

DC distribution system

• Main Switchboard 25.6V DC

• DC distribution system and wiring

• Lithium battery banks (25.6V DC / 11,2 kWh)

• Sets of starting batteries for gensets

• 2 x Chargers for Genset starting batteries (one per each engine room)

Night mode

• Night-Mode DC-25.6V Lithium batterie bank upgrade from 11,2 kWh to 56

kWh including upgrade of charger and 230 Volts inverter

Automation system

• Automation system (Domotic) with following functions

Control:

- Lighting with dimming

- Navigation lights

- Control of valves and pumps of black water

Measurement:

- Tank level monitoring with alarm: fresh water, black water, fuel

- Battery and charger monitoring with alarm: starter/ main batteries bank/ emergency batteries (if installed)

- Measurement of temperature in the engine room

LIGHTS

Lighting system

• Interior lighting with LED lamps

• Lights in the engine rooms

• Spot lights on skirt’s steps and sidewalks

• Spot lights on front terrace deck and cockpit ceiling

• Domotic smart system controlling lights (including dimmers for ceiling lights)

• Exterior lighting package – underlighting of fixed furniture on flybridge and cockpit - LED stripe in white; cockpit ceiling two LED stripes surrounding in white; LED white stripes on skirts, bimini LED stripe surrounding in white if composite bimini ordered

• 10 x Underwater lights LED

NAVIGATION EQUIPMENT

• Compass (size 135mm)

• Chronometer

• Barometer

Raymarine Navigation Package

2 x Raymarine Axiom XL 16” Touch Multifunction Display

Raymarine RD424HD 24” 4kW 608mm digital radome radar

Raymarine Evolution autopilot

Raymarine AIS700 - Automatic Identification System

Multisensor (depth, speed & temperature sensor)

Wind sensor

GPS

Raymarine Modular Dual-Station VHF Radio System Ray90

Searchlight with control unit

Electric Fog Horn

Wireless autopilot controller

AUDIO-VIDEO AND IT EQUIPMENT AND SERVICES

• Yamaha Home Cinema Receiver 7.2 + 5x ceiling speakers + 1x active subwoofer

• 2 waterproof speakers in the cockpit and 2 in the flybridge

• 2 waterproof speakers on front deck

• 4G/LTE Wifi antenna worldwide

• Starlink equipment

• 1 Printer HP OfficeJet 250 Mobile

• Widescreen LED TV 55” with installation (saloon)

SAFETY EQUIPMENT

• Automatic fire extinguishing system in the engine rooms

• Complete rescue equipment with life-rafts for 16 persons

• EPIRB (included in option MCA)
