ABOUT THIS YACHT

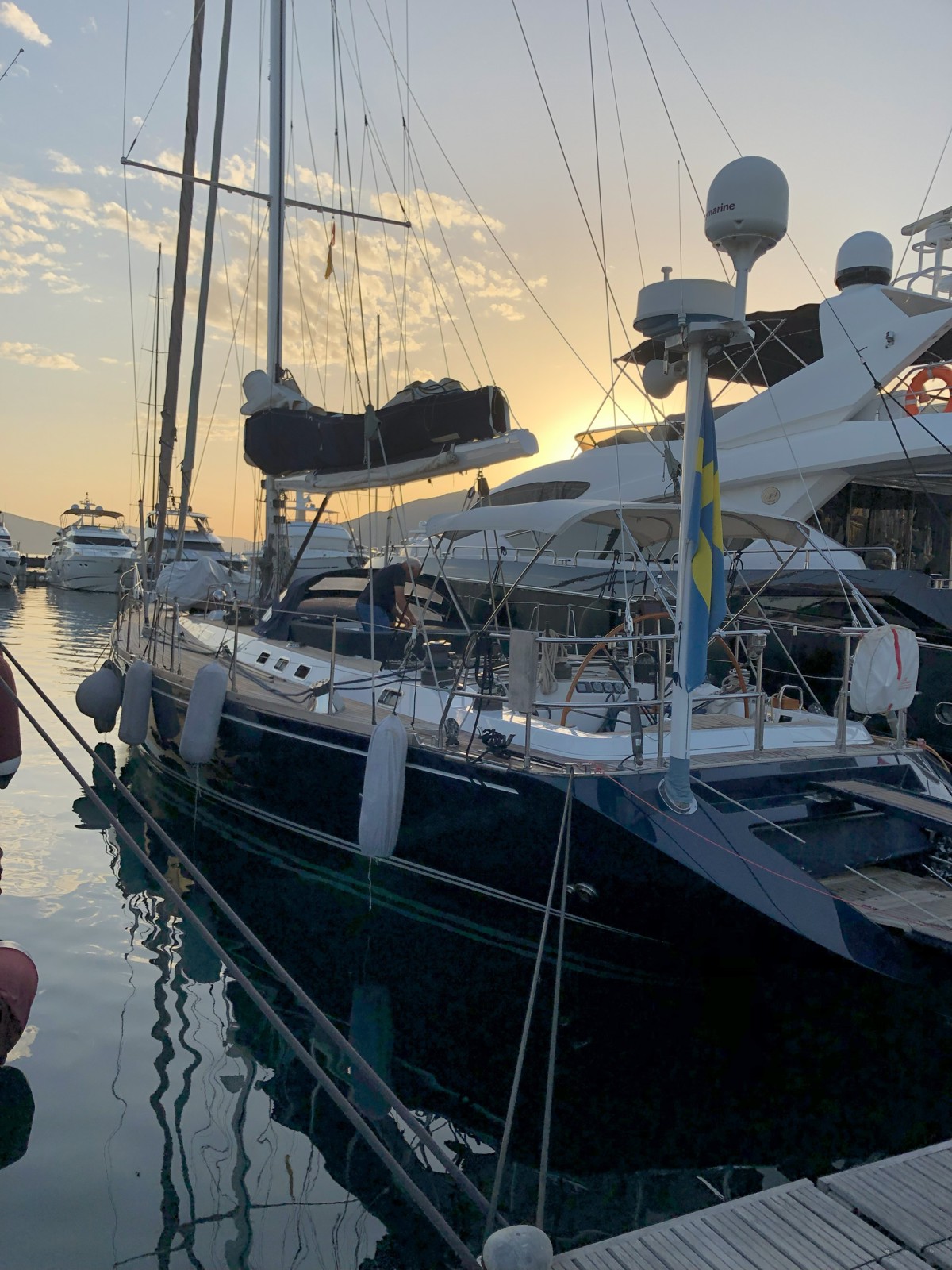

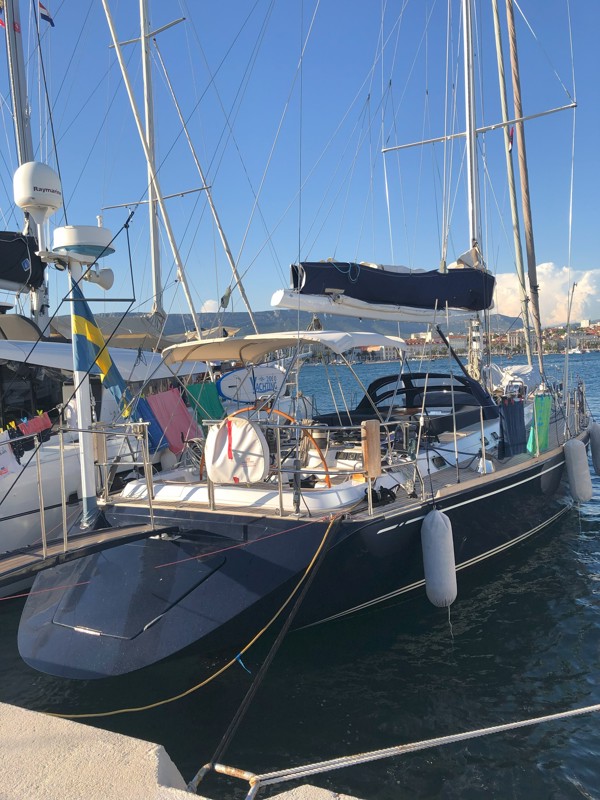

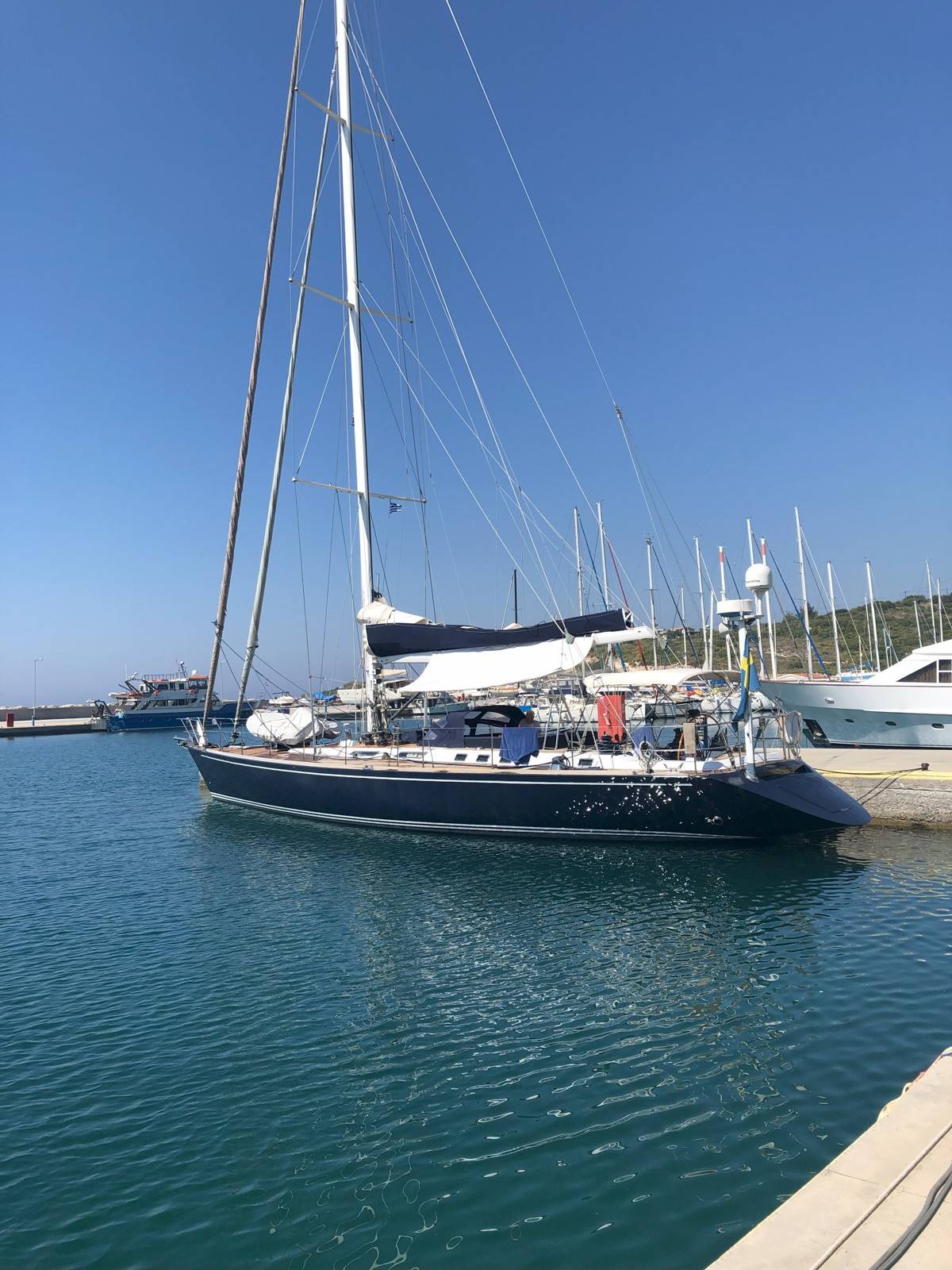

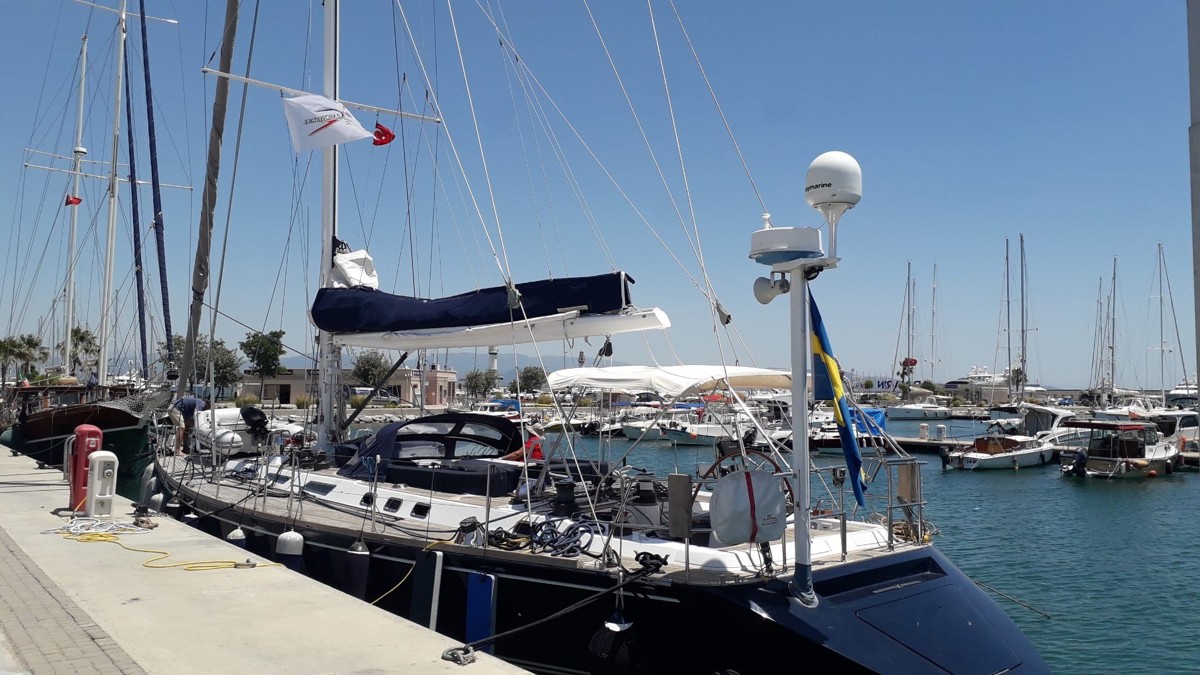

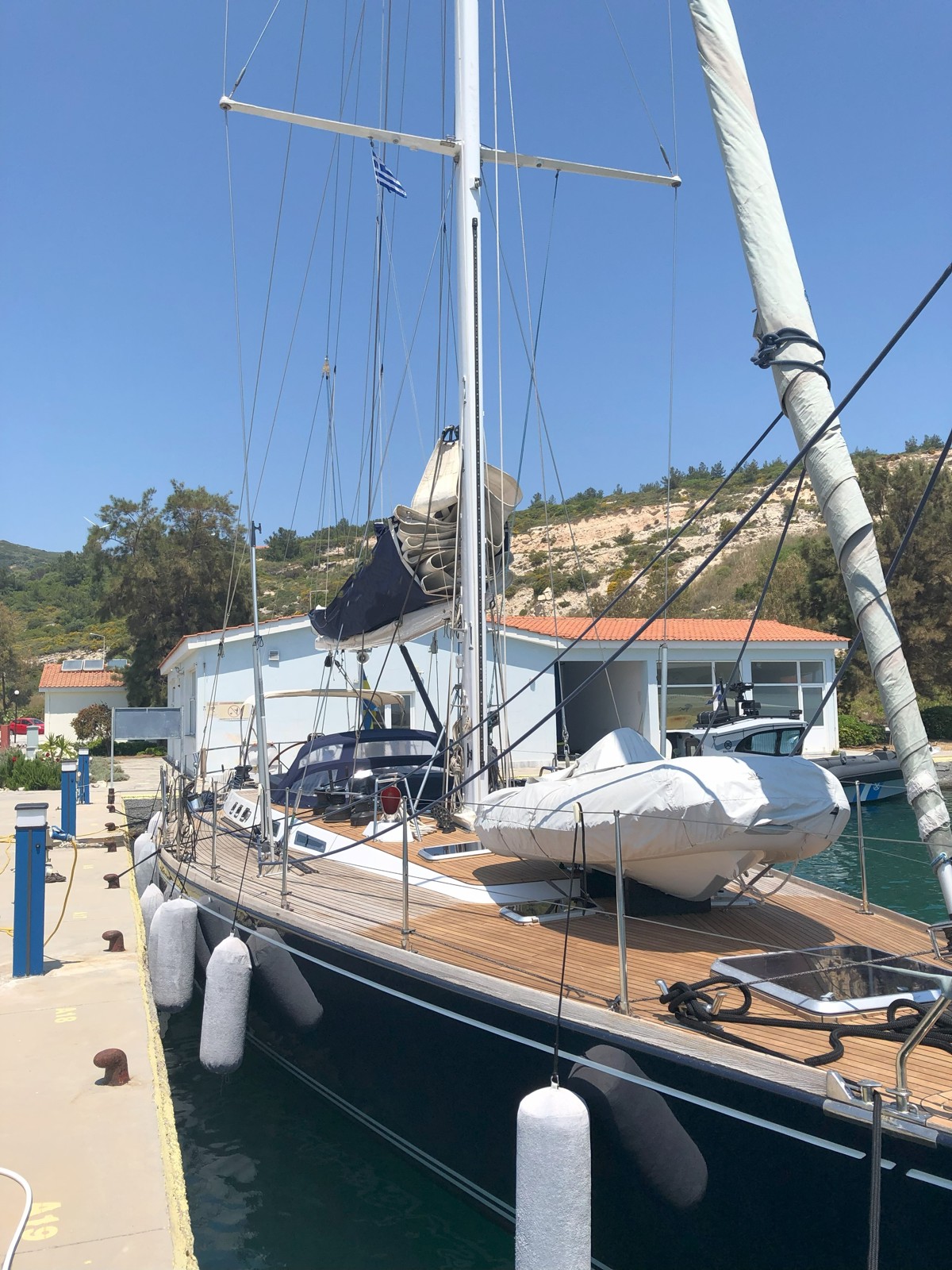

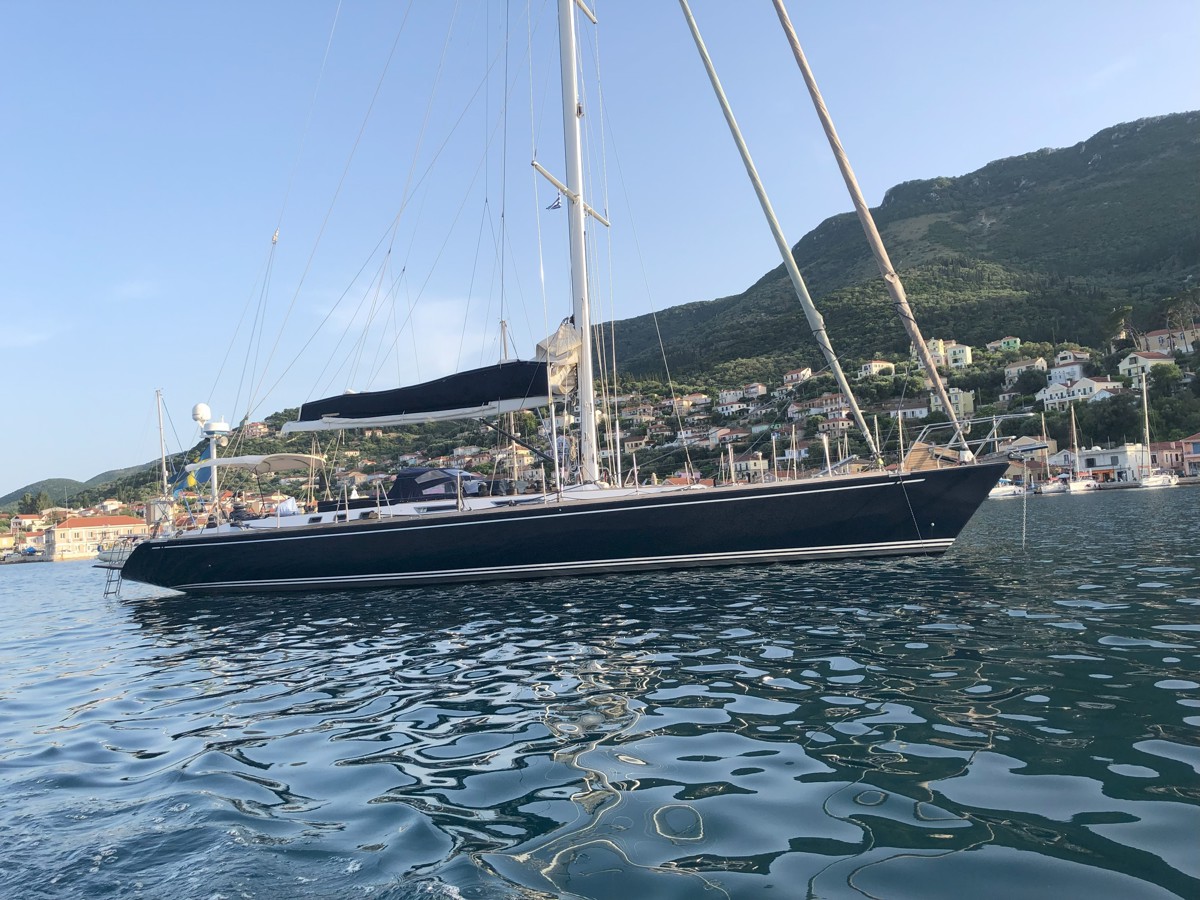

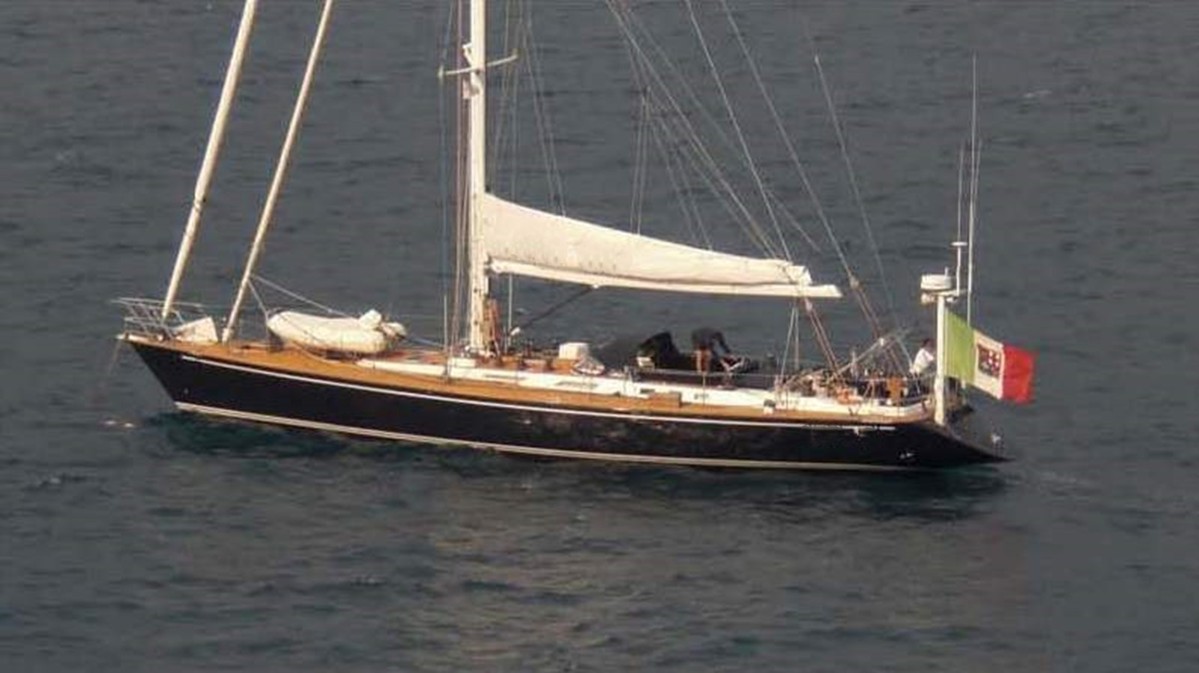

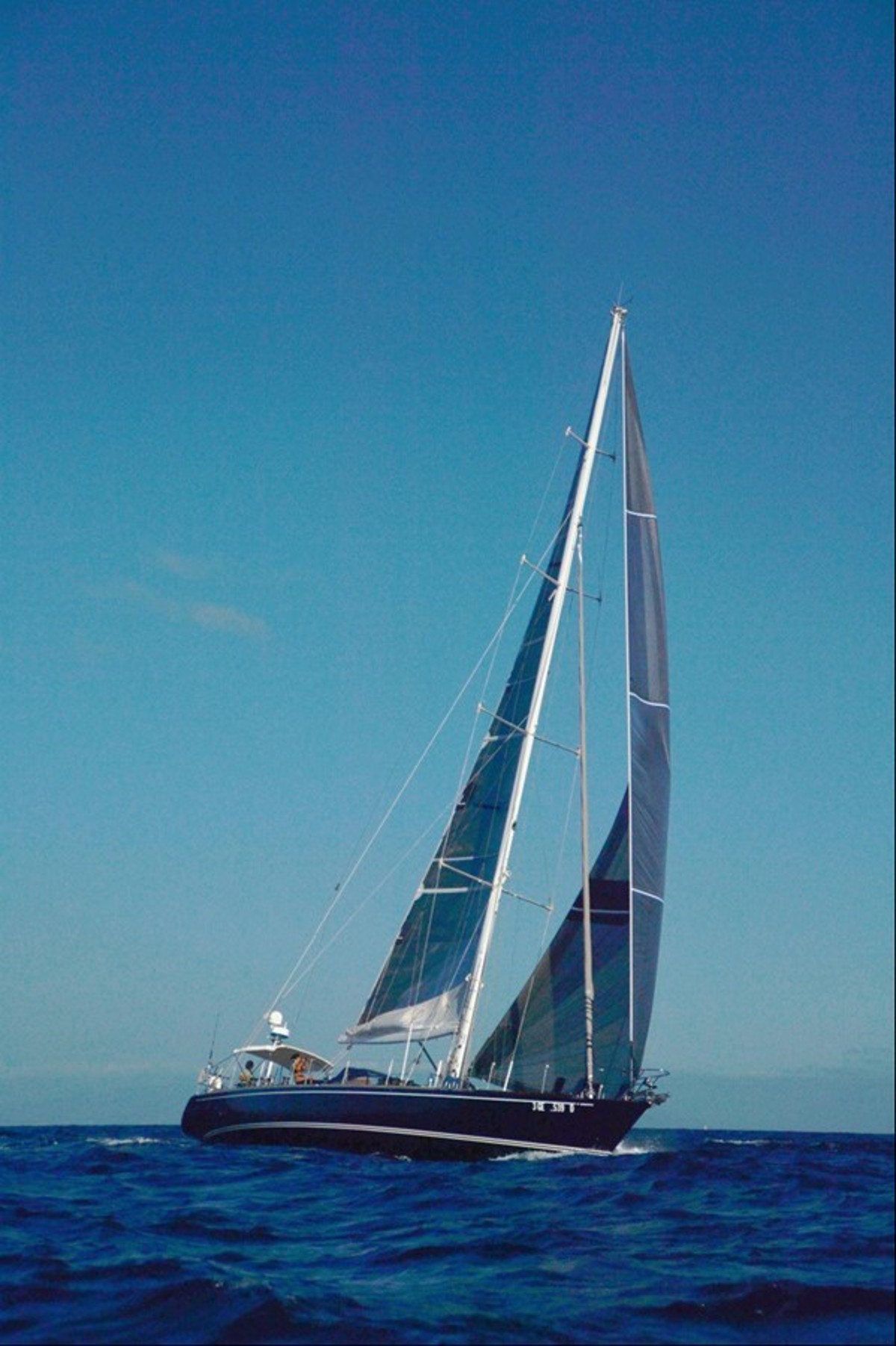

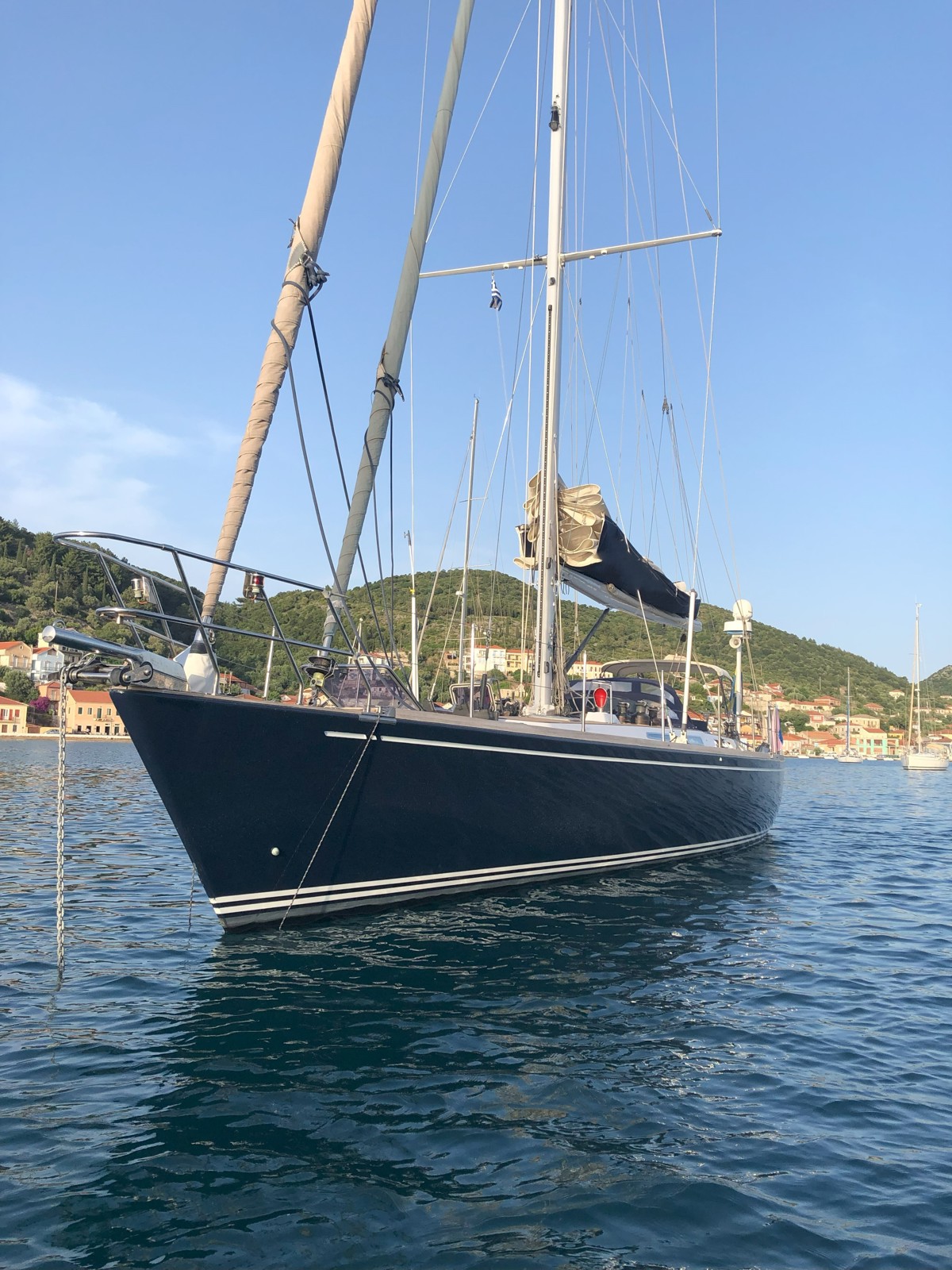

1994 Nauta Yachts (CNB) Nauta 65 (EU VAT PAID) Flag Swedish

KEY FEATURES

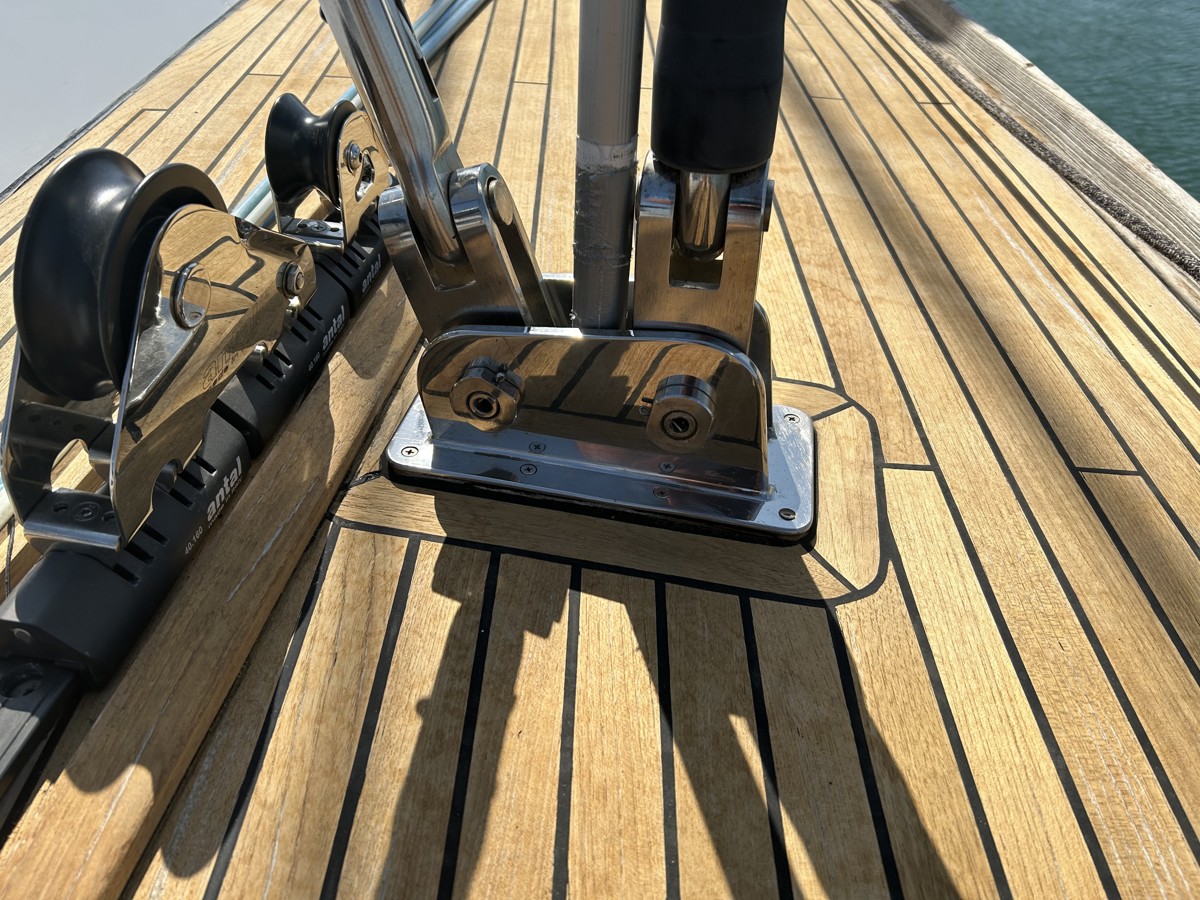

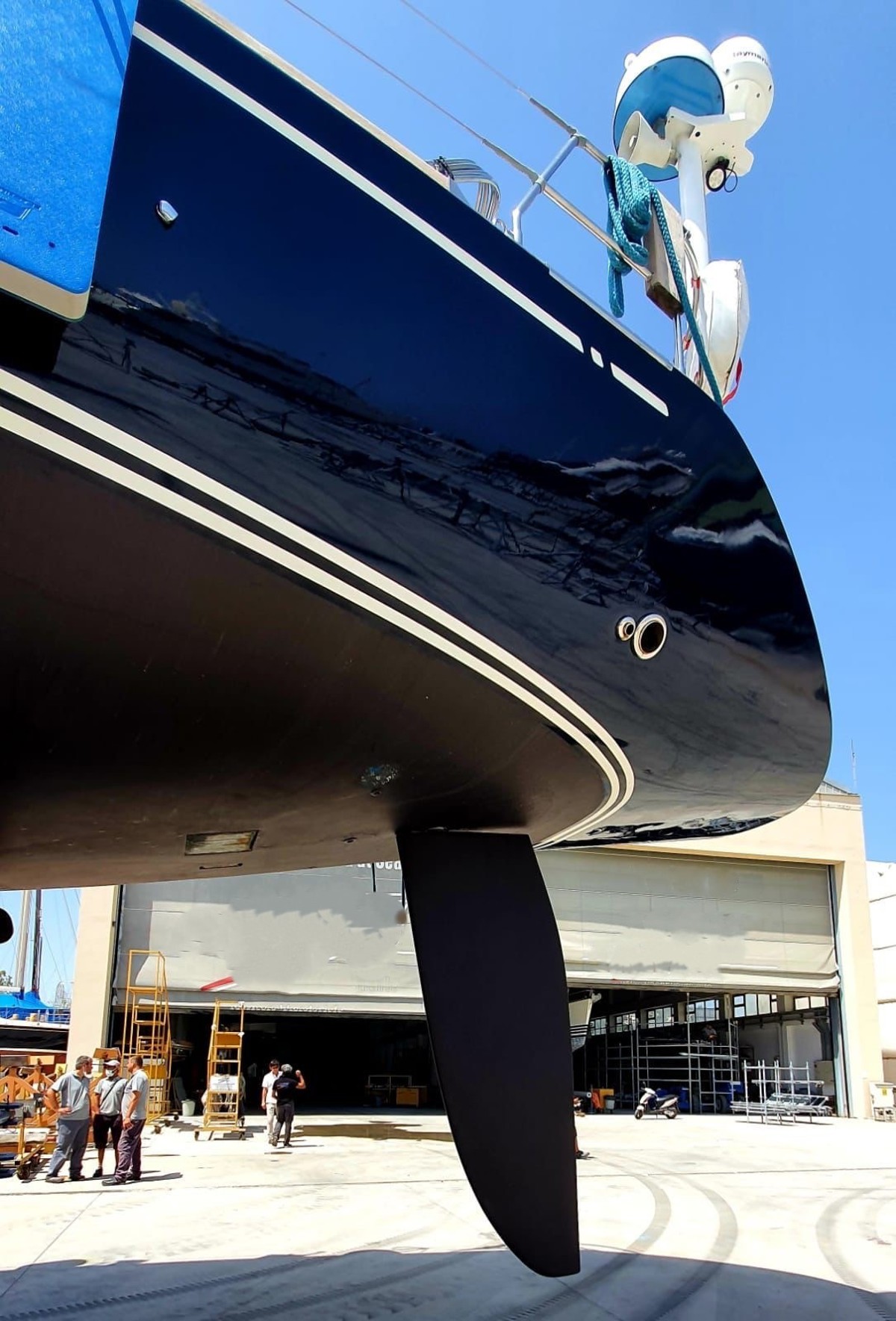

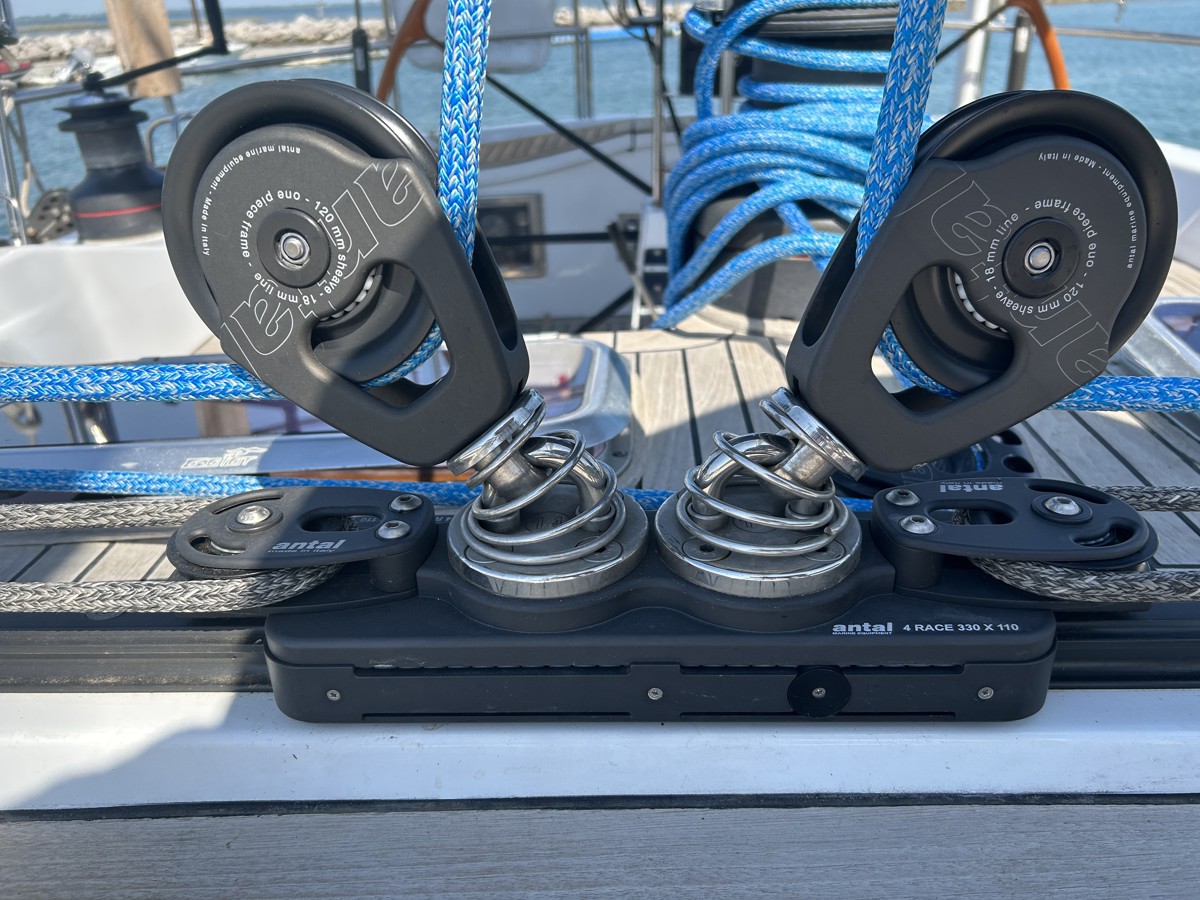

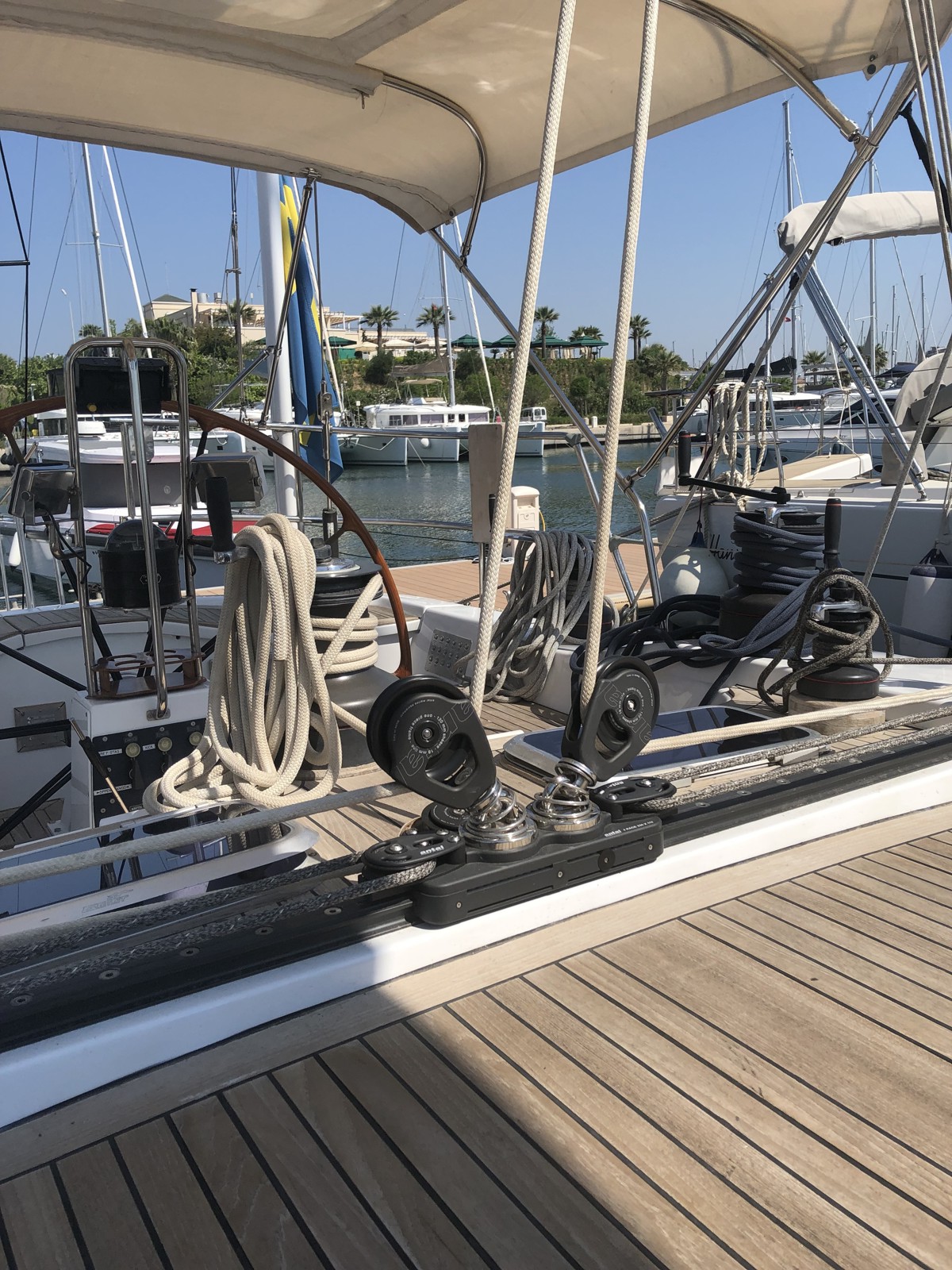

• Full refit 2021-24: deck and hull painted, interior varnished, mast painted, new standing and running rigging, all teak or renewed, new mainsheet and genua tracks, etc.

• Webasto Air-conditioning system 27,000 btu

• Idromar Watermaker 250 l/h new in 2018

• Reckmann Hydraulic genua furler

• Maxpower 250 VIP bow thruster

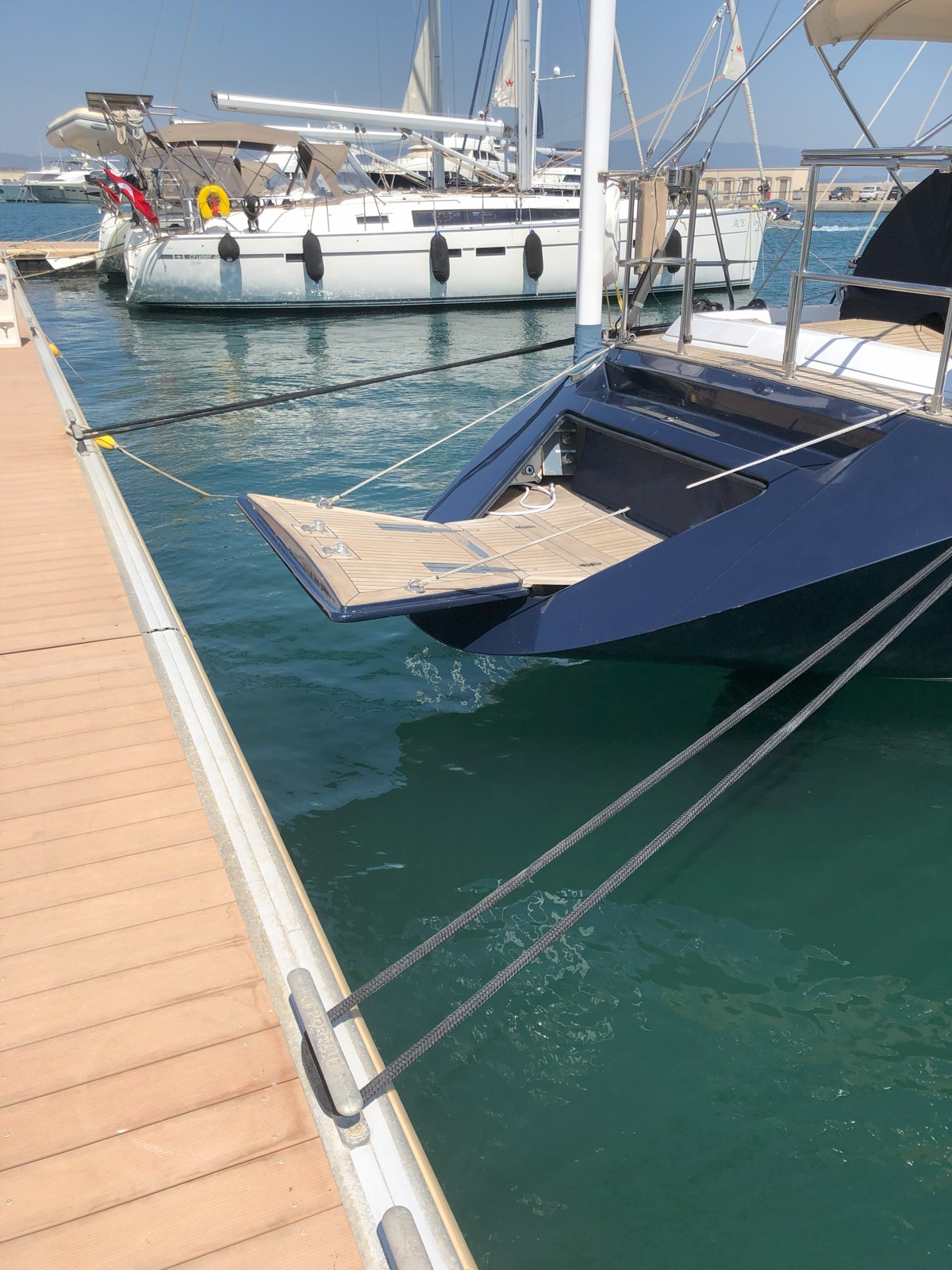

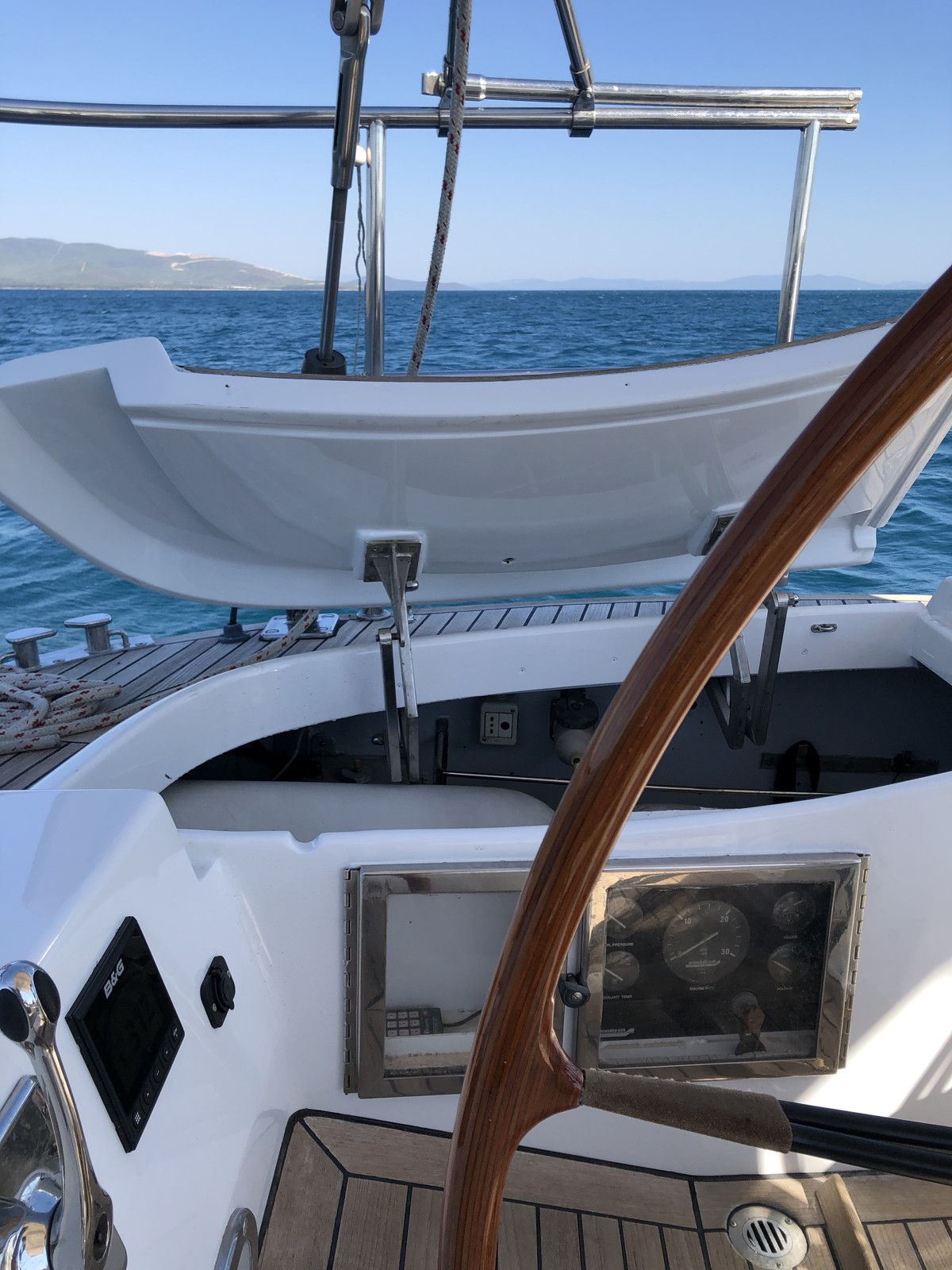

• Hydraulic powered folding swimming platform

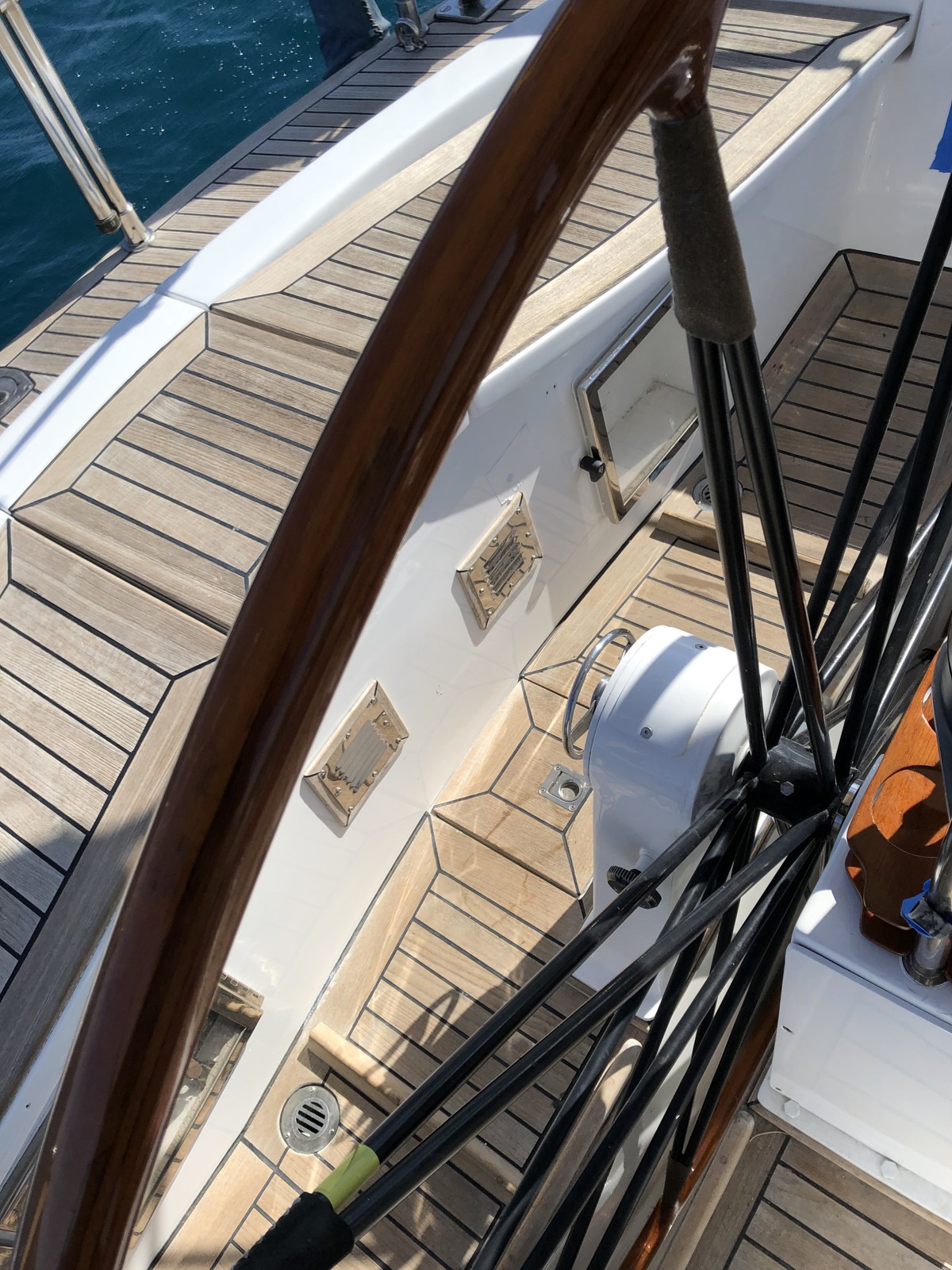

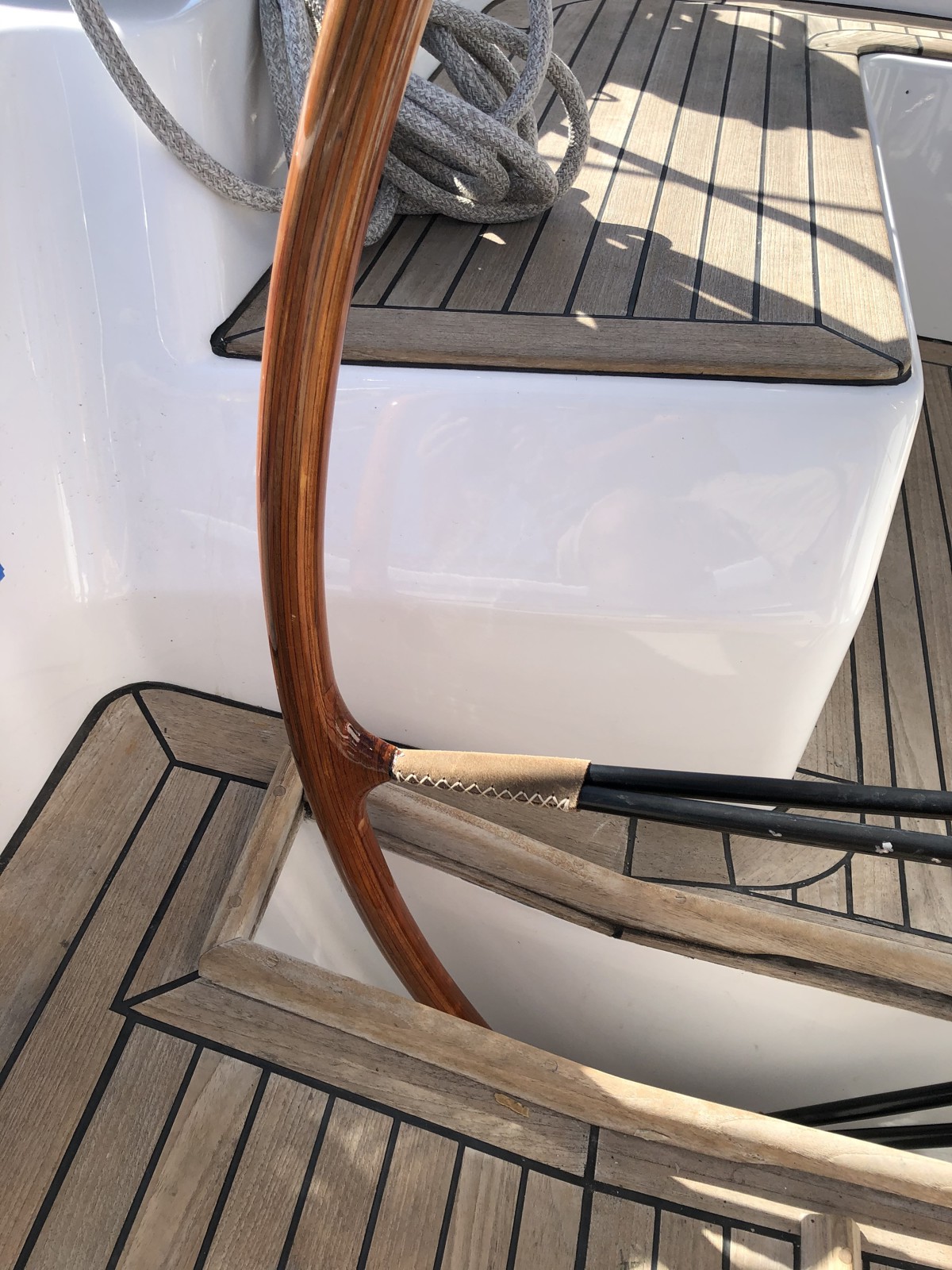

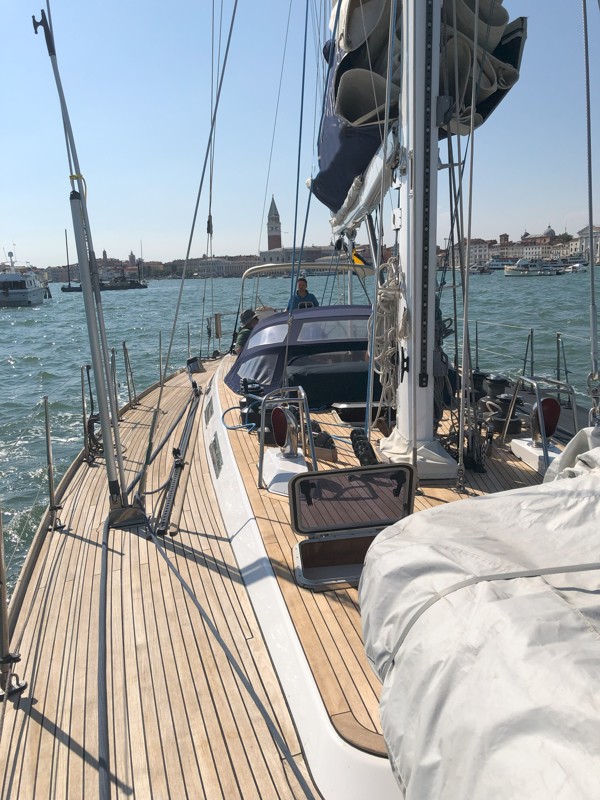

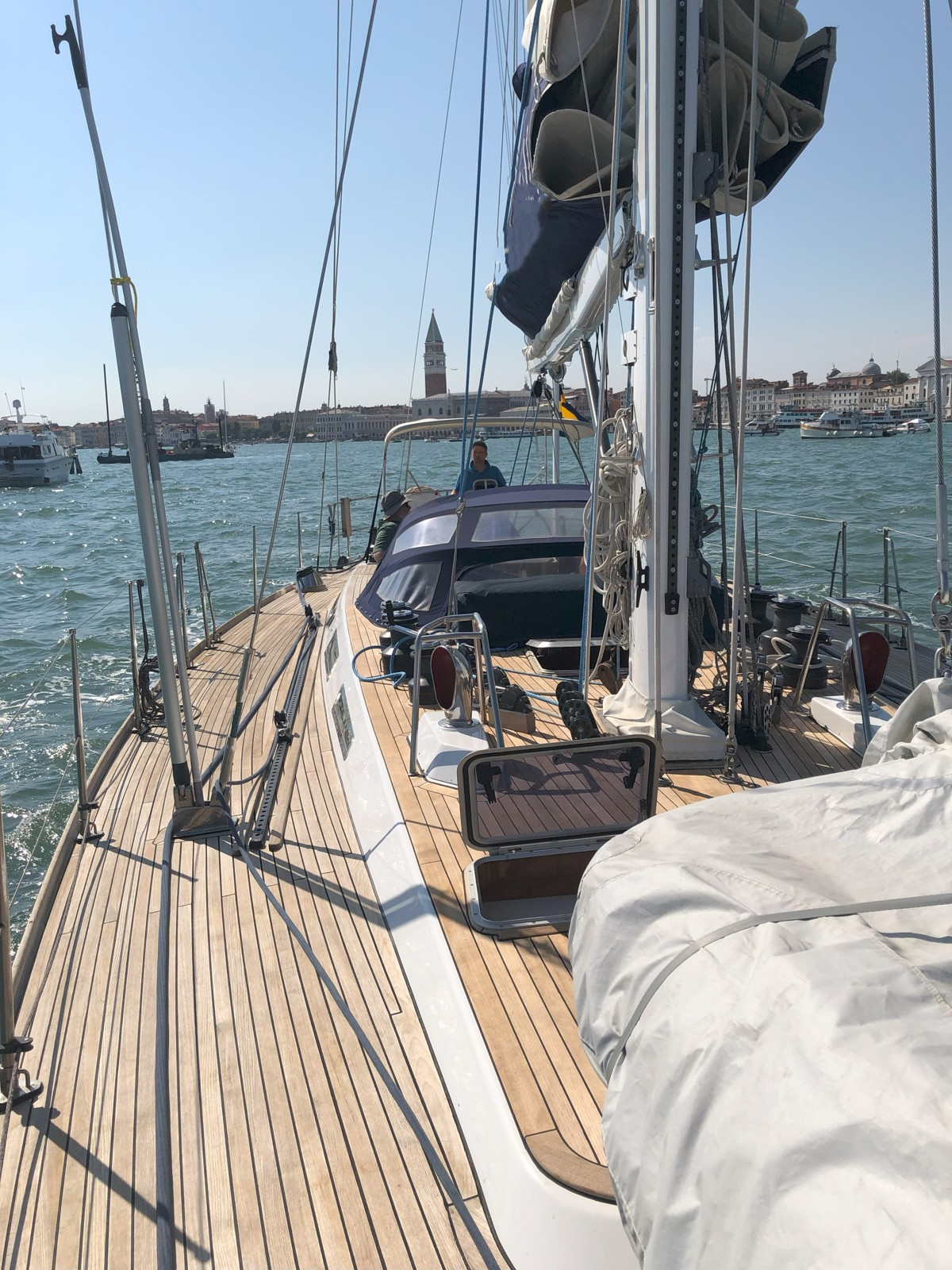

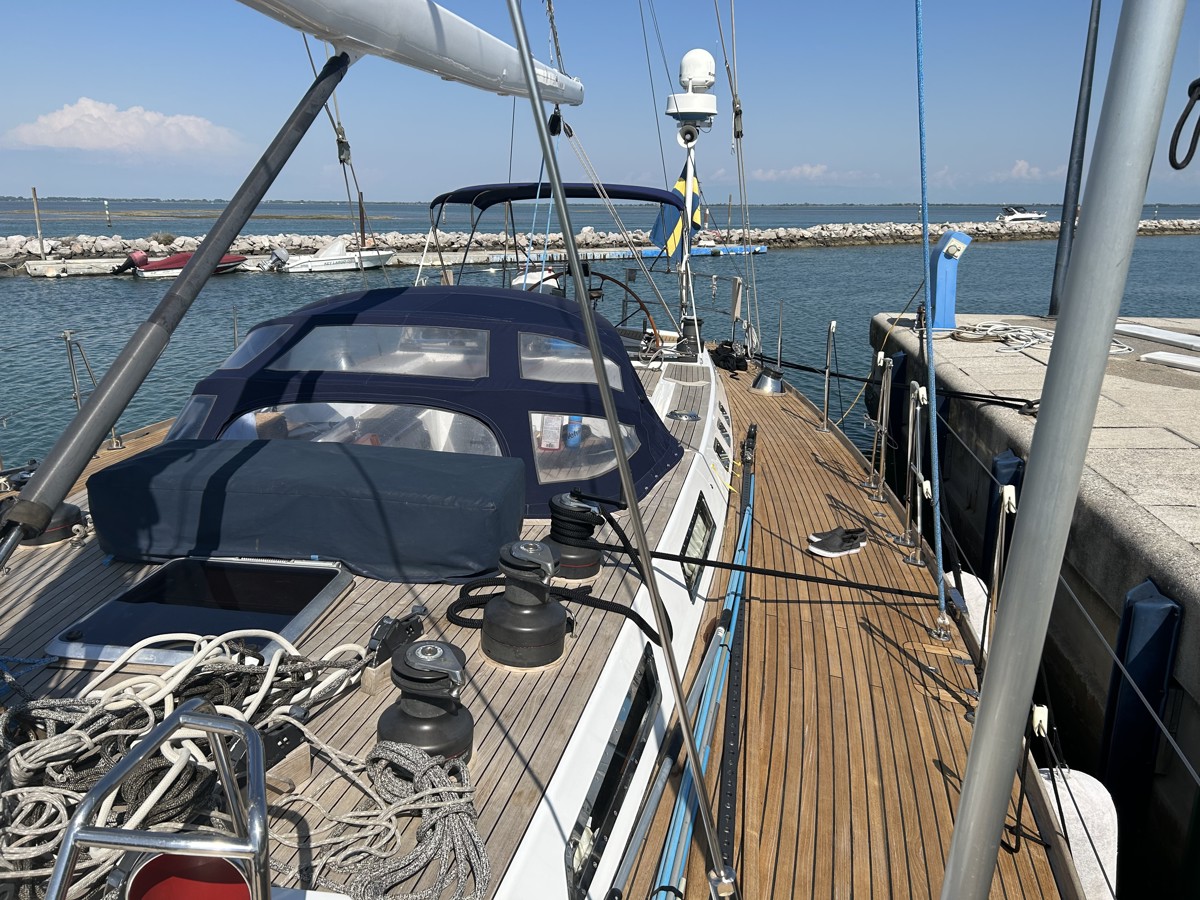

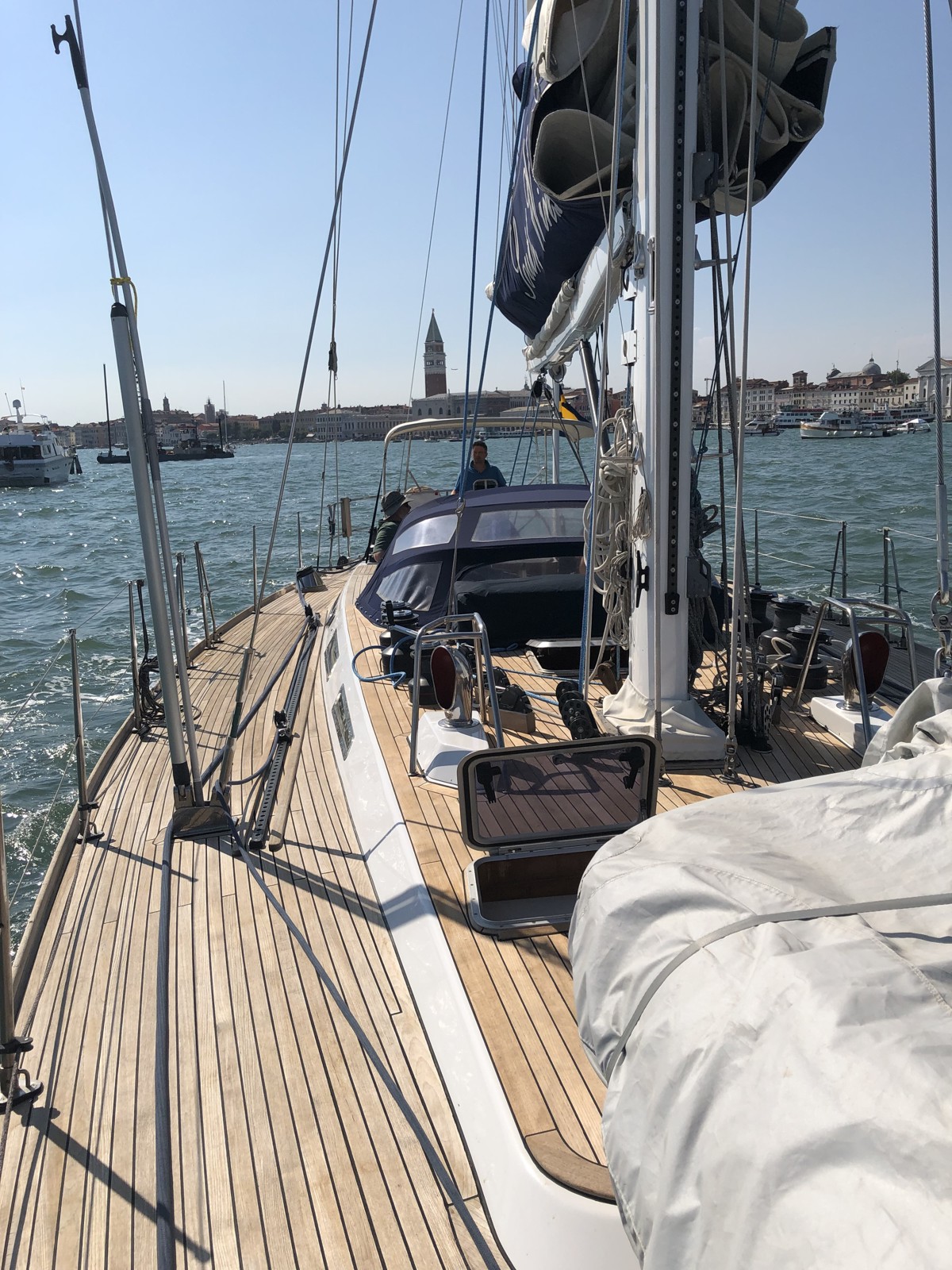

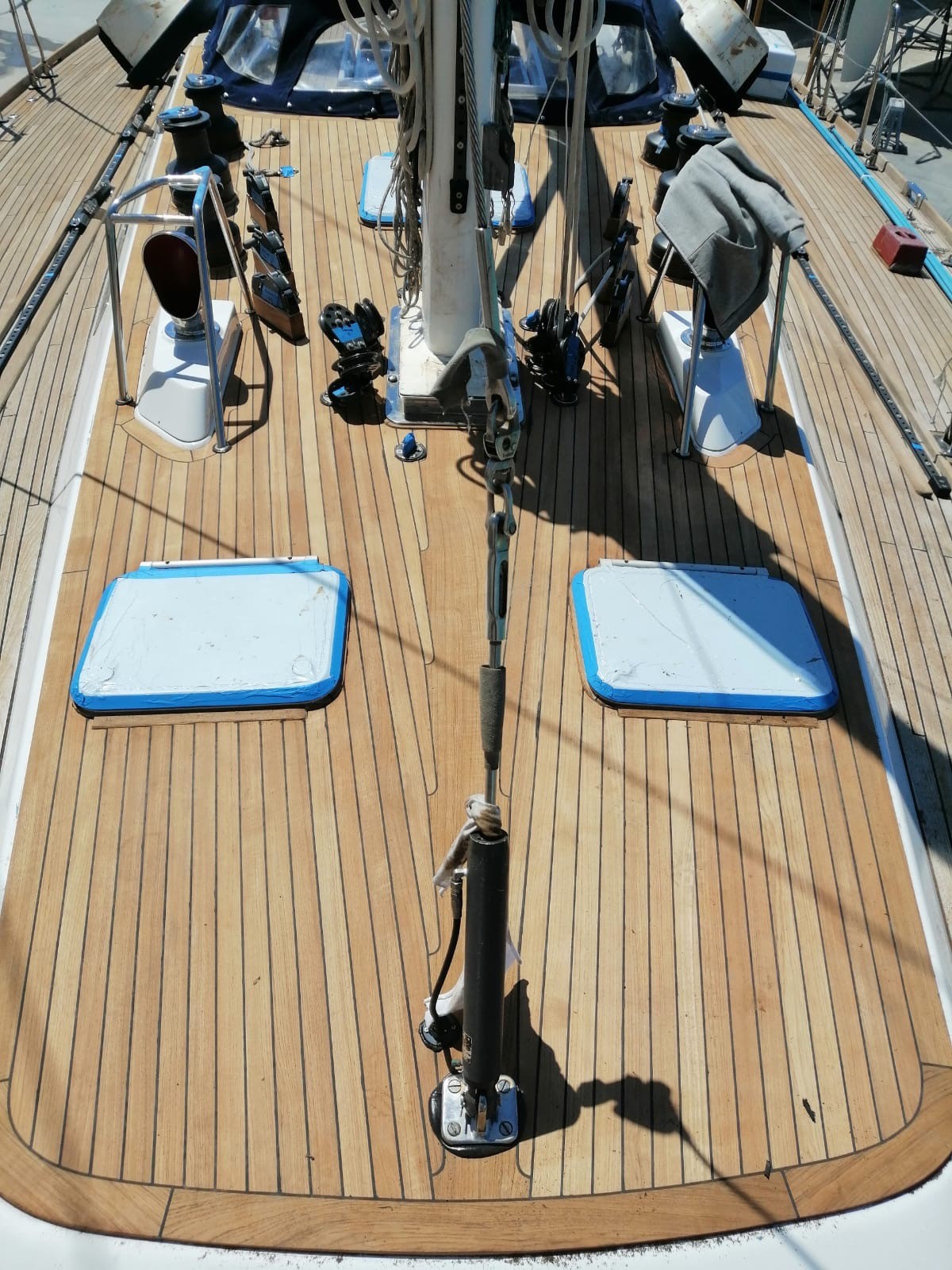

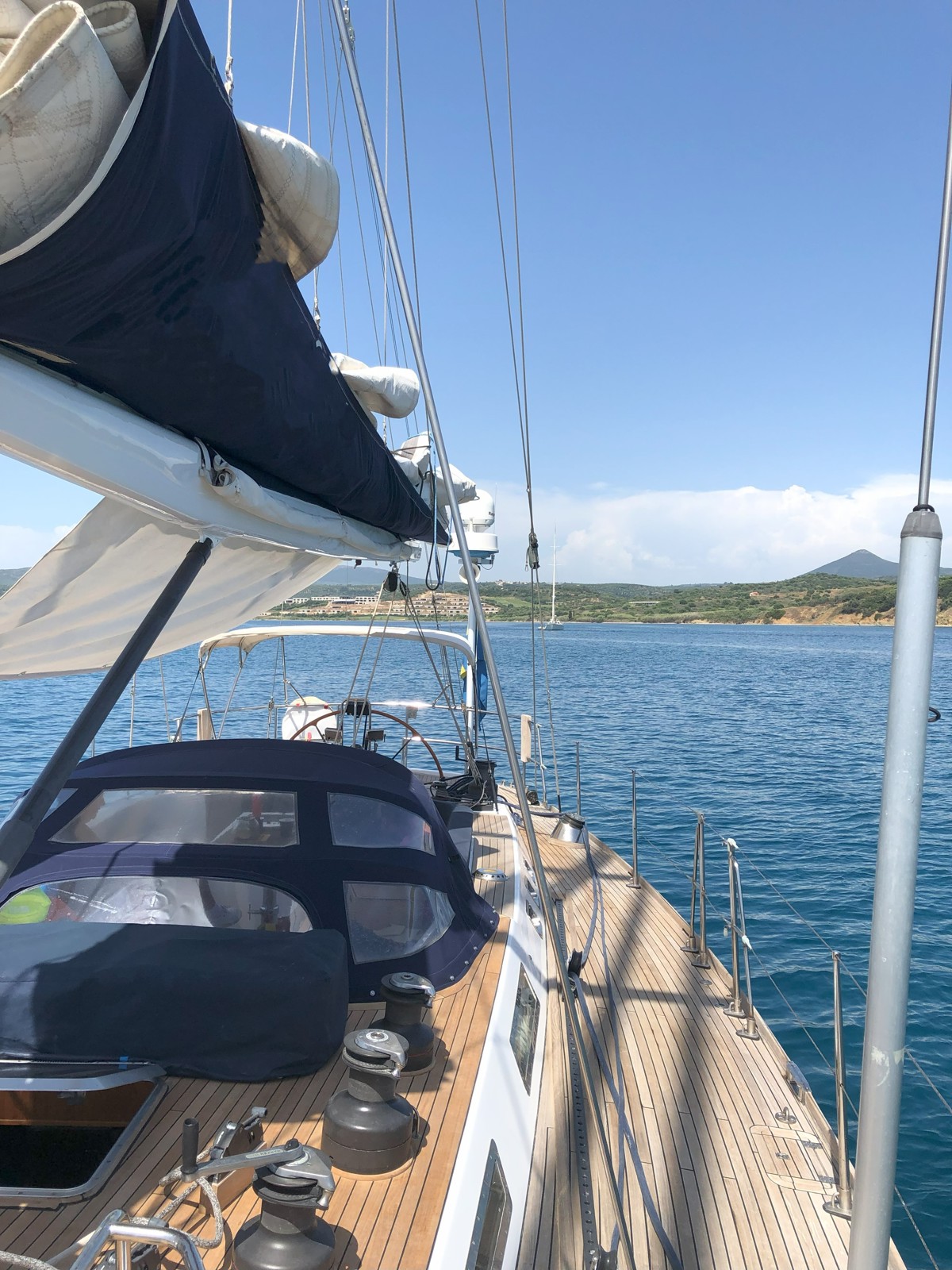

• Teak on deck, cockpit and coach roof: new 2016/17 on deck, sanded and re-caulked in 2023; teak new 2022 on superstructure.

• Harken hydraulic winch package (2x 980, 2x64) plus nine manual winches

• 2 x Fridge and 1x fridge/freezer

• 3 x Electric heads

• Holding tank

• B&G instrument package with plotters, active AIS transponder, and various instruments

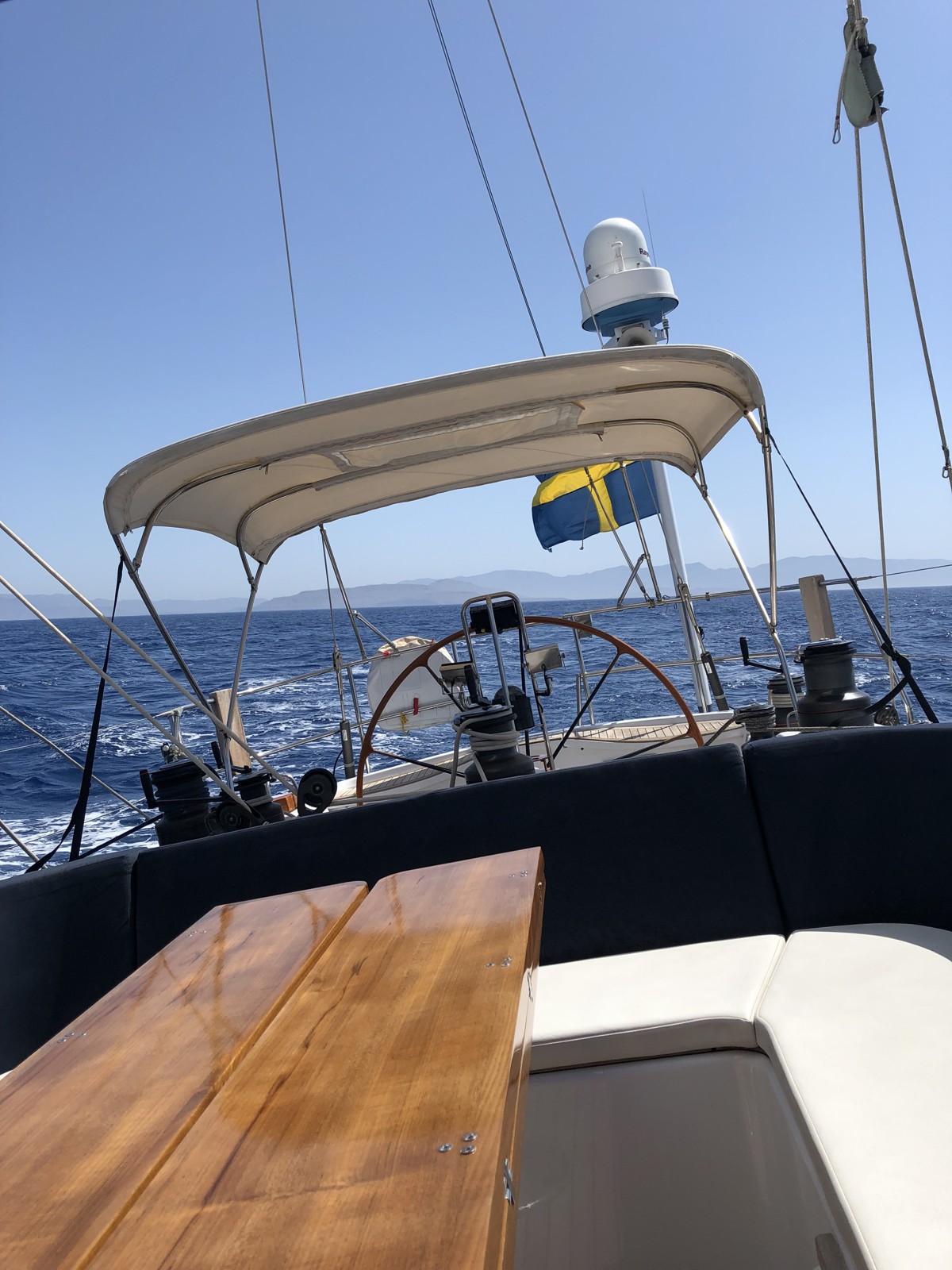

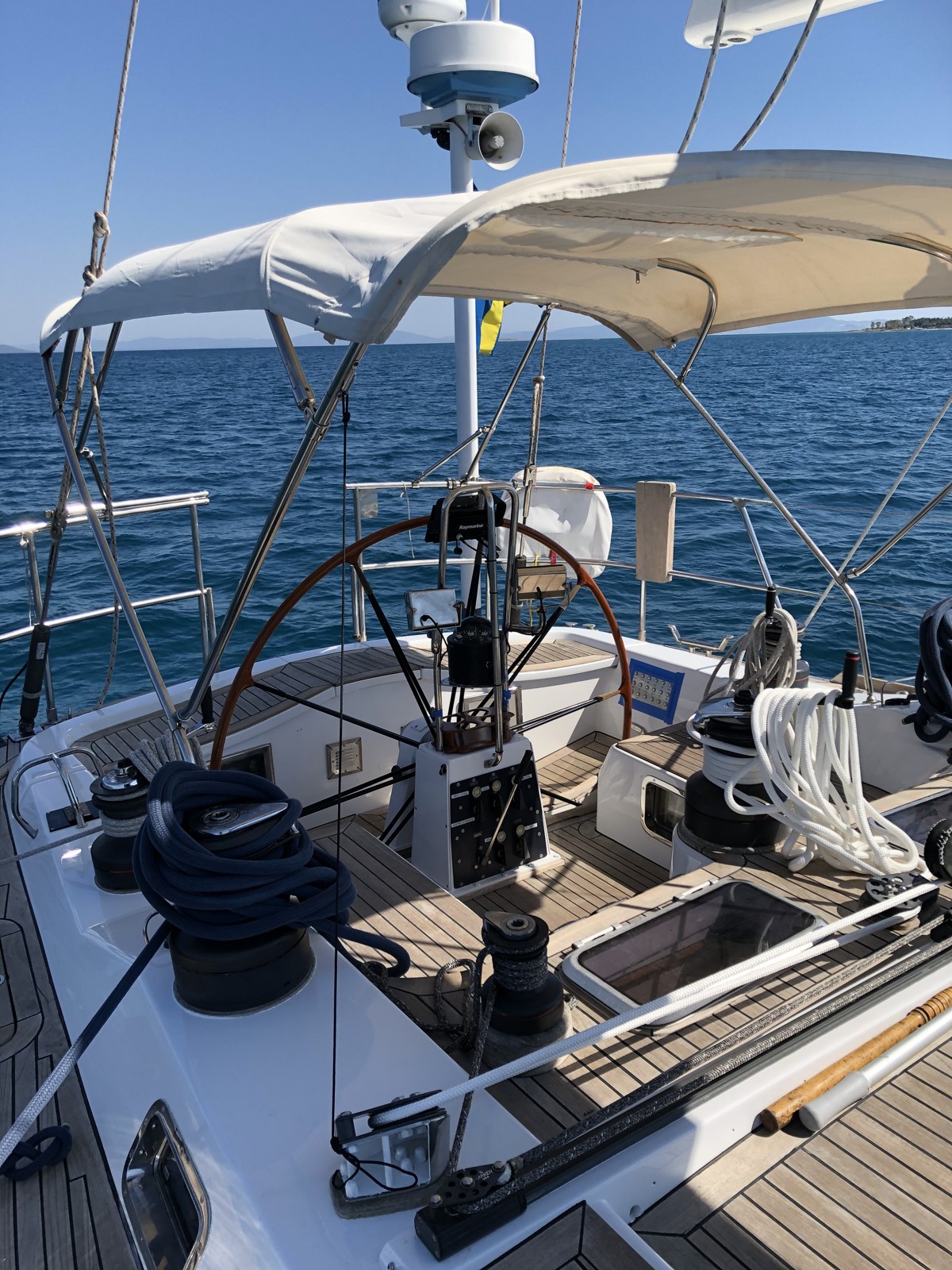

• Sprayhood and Bimini

• Fischer Panda 10kw generator from 2014

• 8kVA (6kW) generator

• Highfield classic 270 cm tender with 10 hp outboard

MACHINERY

•  MAN D0826, 6.8 liters, six cylinders 260hp. Engine rebuilt in 2016/17. Painted in 2021.

•   Engine hours – approx. 6000 as of Winter 2023/24. (Engine rebuilt at 5000 hours in 2016/17. Runs perfect, no need to replace, this is an oversized truck engine that will last as long as the boat if it is serviced properly.

•   Gearbox: ZF PRM220A

•   Fresh water engine cooling via raw water intakes and heat exchangers; rebuilt in 2017.

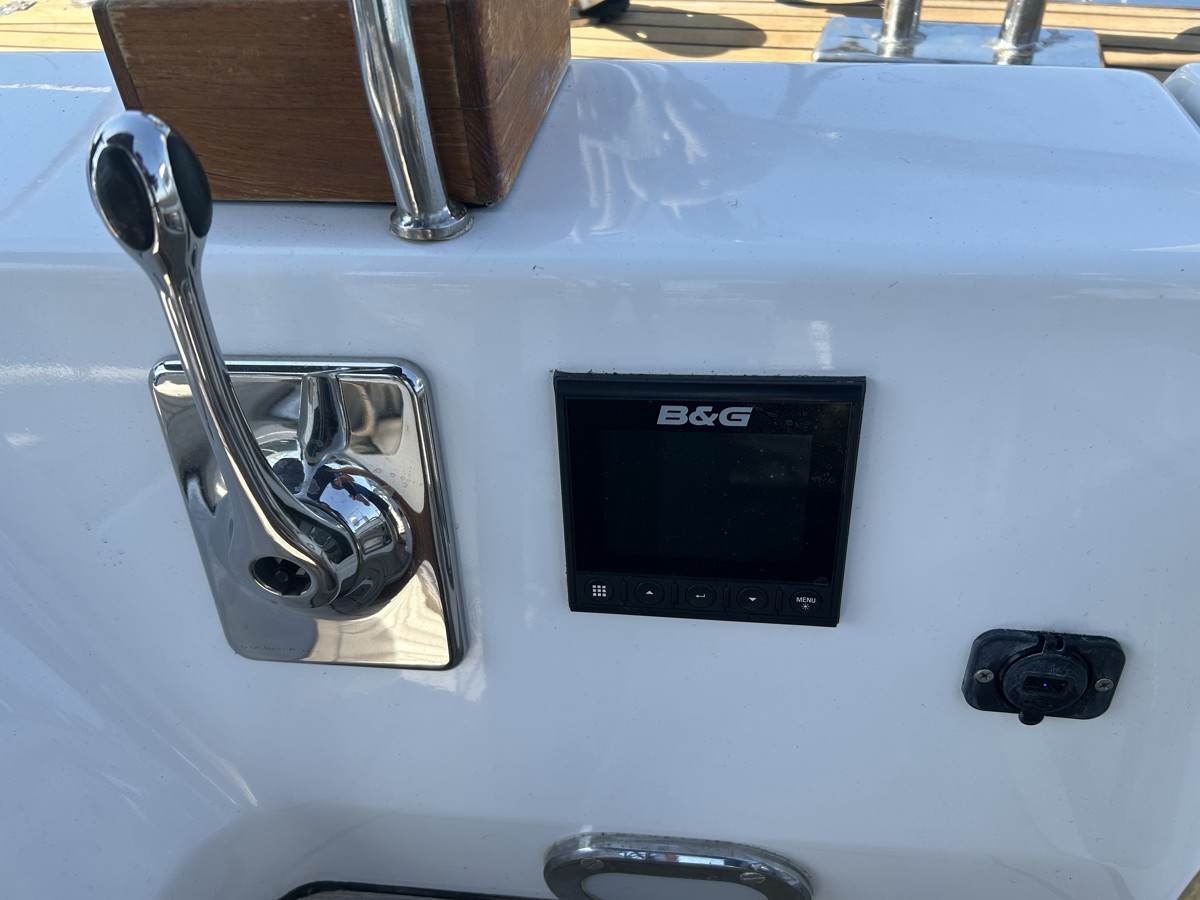

•   Single lever throttle/gear controls

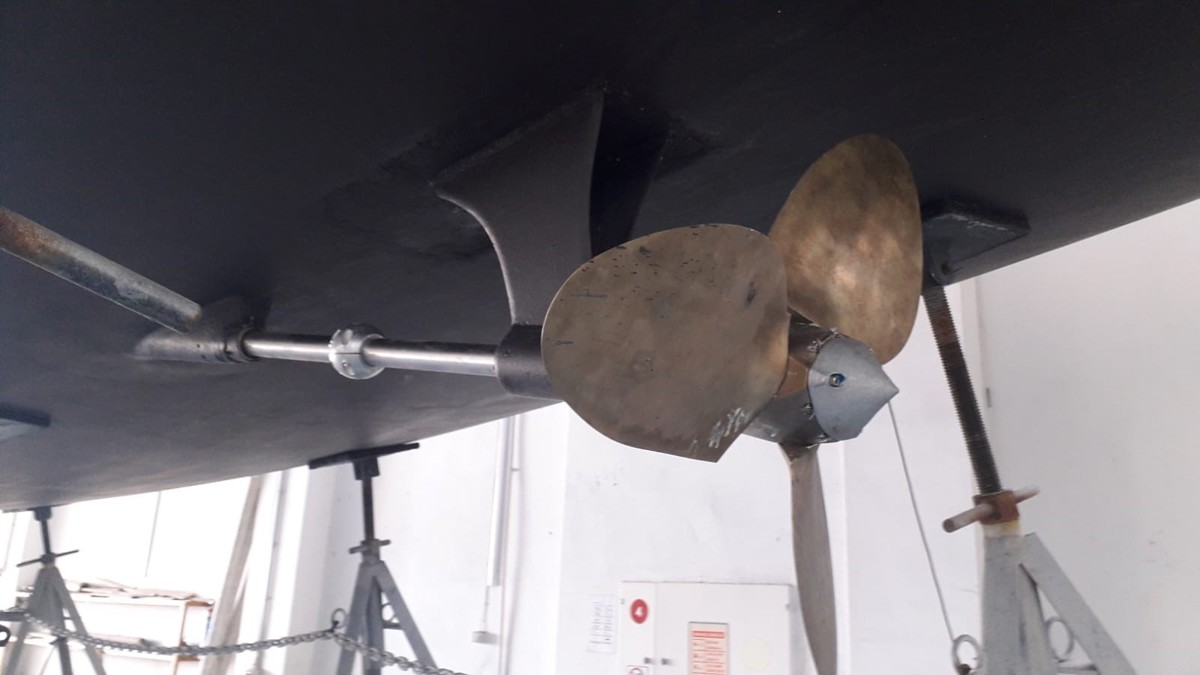

•   3-blade folding Maxprop

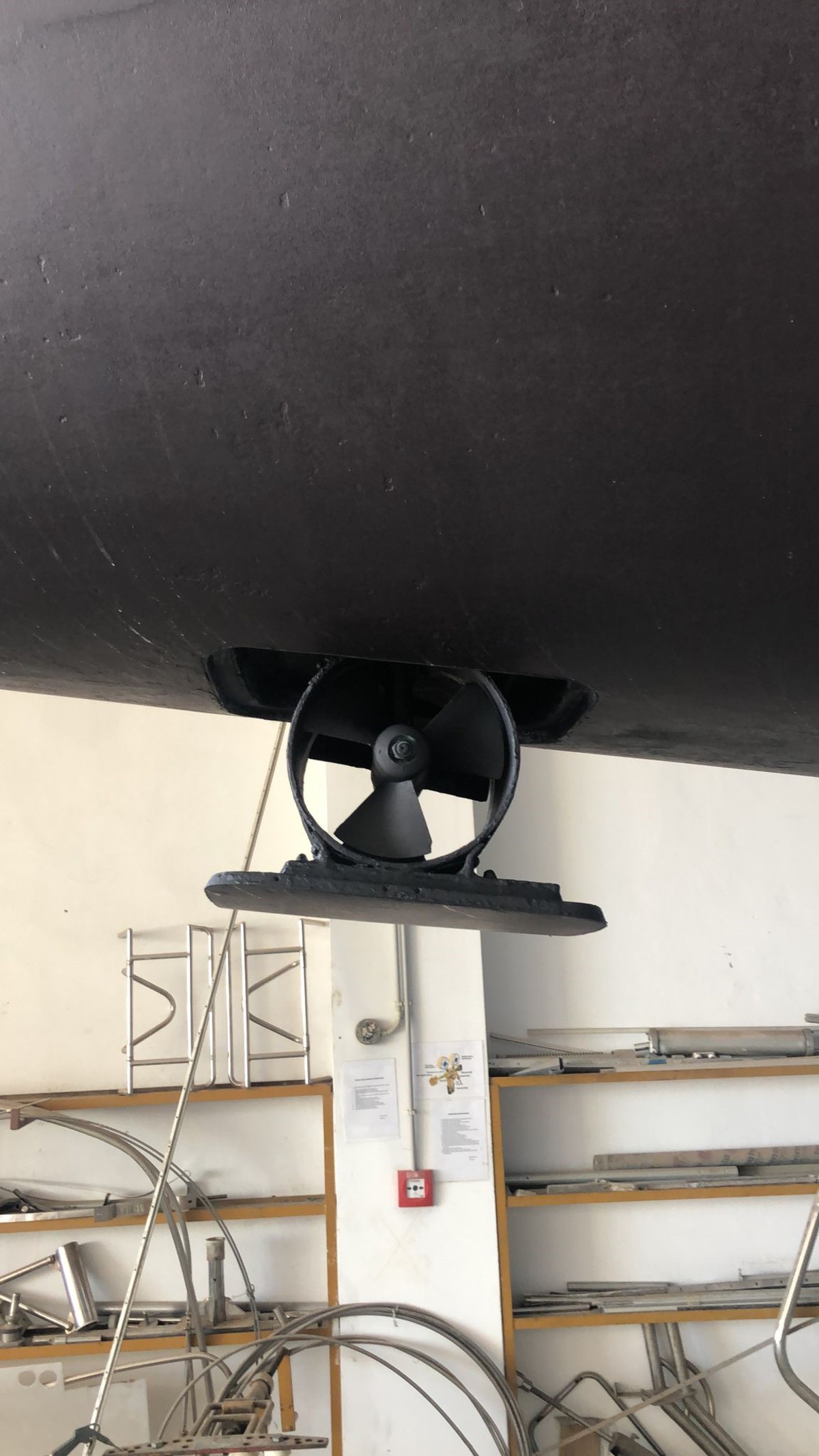

•   Maxpower 250 VIP bow thruster

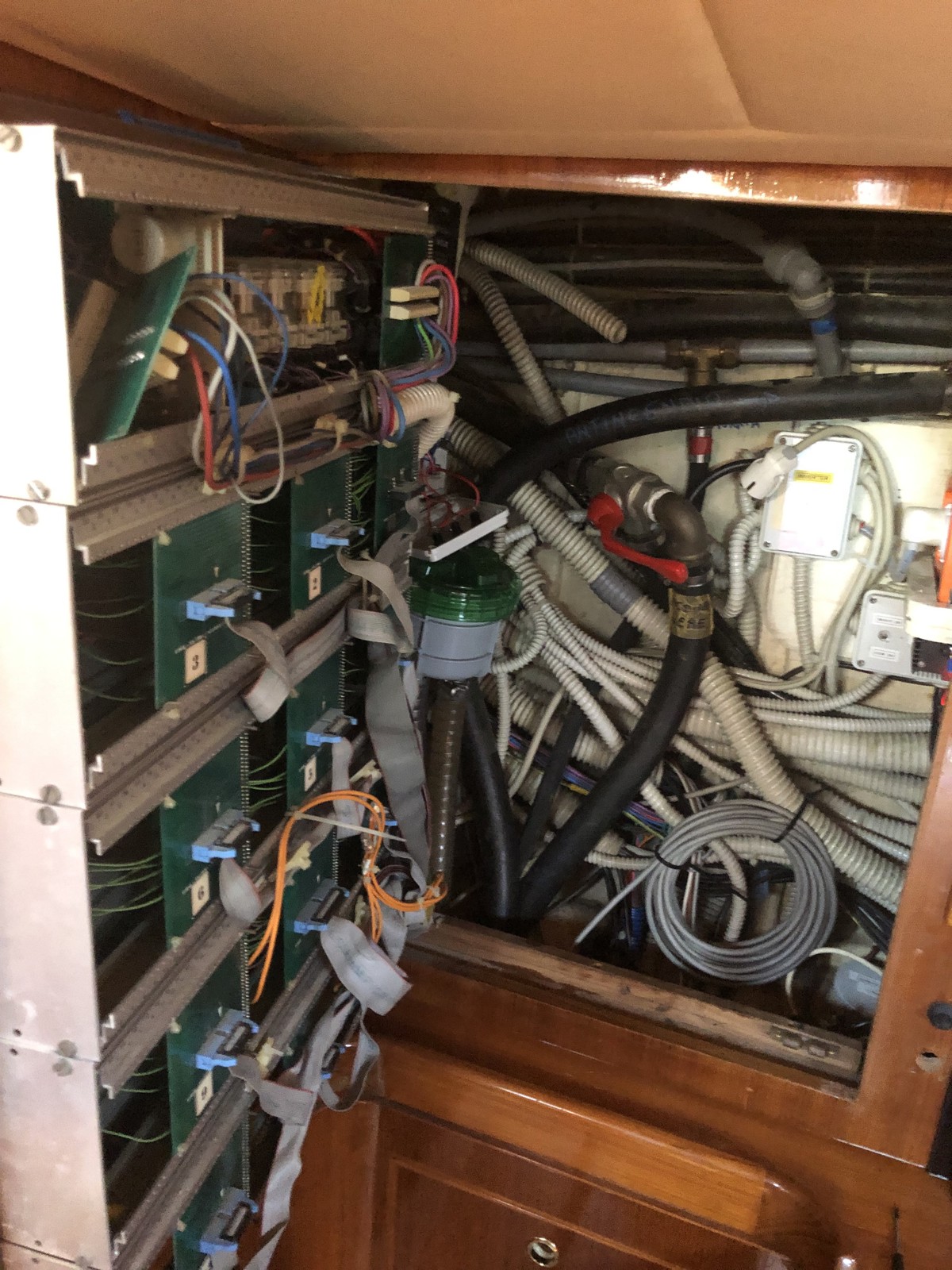

ELECTRIAL SYSTEMS

Voltage systems:
• 24vDC primary domestic system with 12vDC starting circuit and 220v AC via shorepower, inverter or generator.

Battery Banks:
• 24vDC  AGM maintenance free battery bank from 2019 (about 900 AH in two sepate banks)
• 12vDC 2x 50Amp Engine crank battery
• 12vDC 50 Amp Generator crank battery

Charging / Inverter:
• 12vDC 10amp generator battery charger

• 12vDC 30amp start battery charger

• 24vDC Mastervolt 80Amp battery charger for service batteries

Generator:
• Fischer Panda 10000i variable speed Diesel generator 230V / 50Hz, 10kW, new 2014, about 1500 hours

Alternator:
• 24vDC engine mounted 75amp alternator with three steps charge for service batteries, plus 12vDC alternator for engine batteries

PLUMBING & GAS SYSTEMS

Fresh Water:
• 24vDC pressure system. Hot water supplied via engine cooling with calorifier or via 230vAC immersion heater element from shore power in well-insulated hot water tank by Quick.
• Hot & cold pressurised water to galley, heads and shower on swimplatform.

Watermaker:
• Idromar MC3J Watermaker 180 l/h, new in 2018

Bilge Pumps:
• Several electric bilge pumps: 1x fore peak, 2x main bilge, 1x lazarette
• 1x manual bilge pump

TANKAGE
Fuel:
• Approximately 1300 liters in six tanks (all stainless steel)

Fresh Water:
• Approximately 360 liters in three tanks (stainless steel) plus water maker

Holding Tans:
• Approximately 100 liter blackwater holding tank discharging to sea or via deck outlet.

NAVIGATION & COMMUNICATION EQUIPMENT

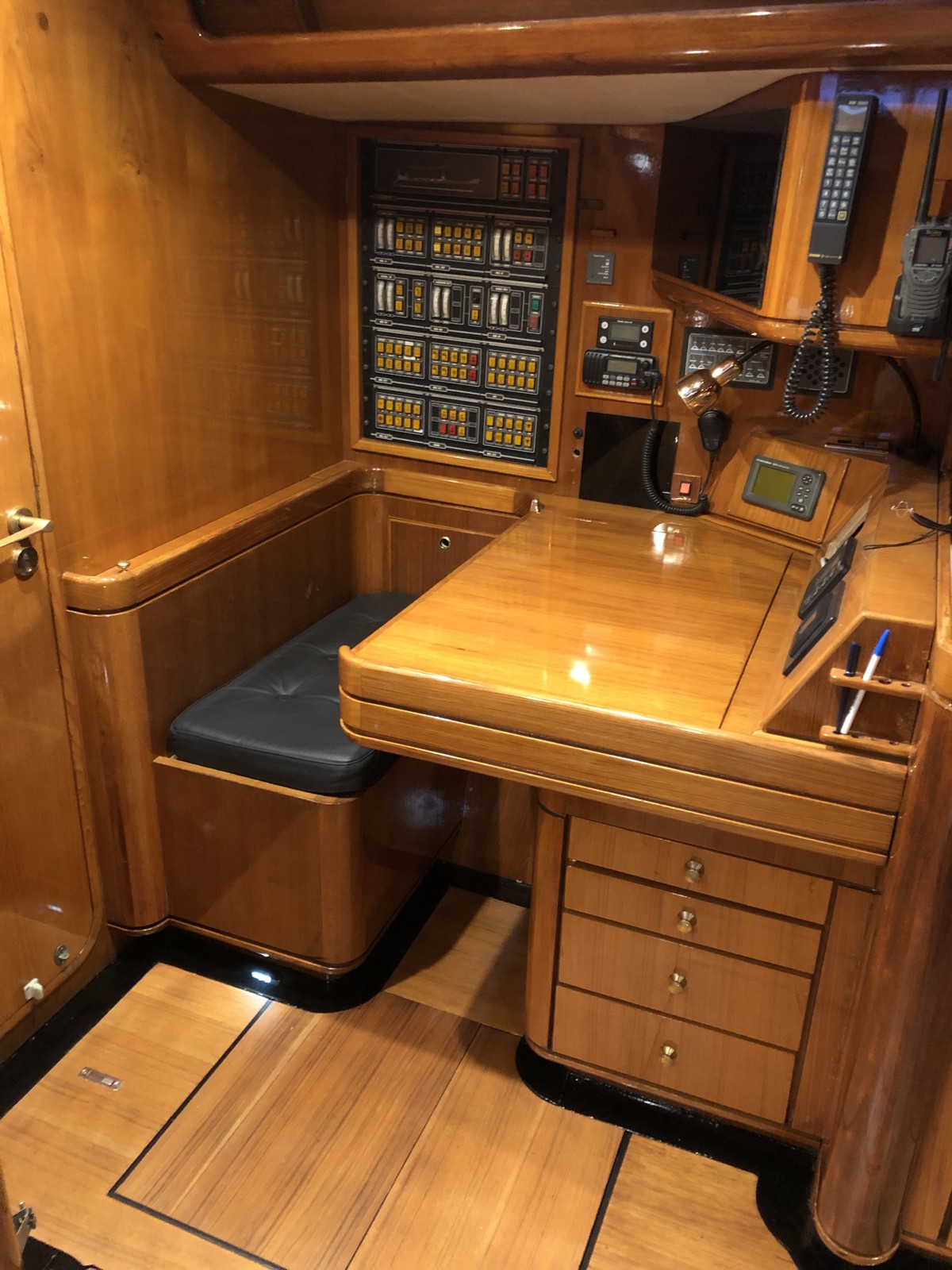

Electronic equipment:

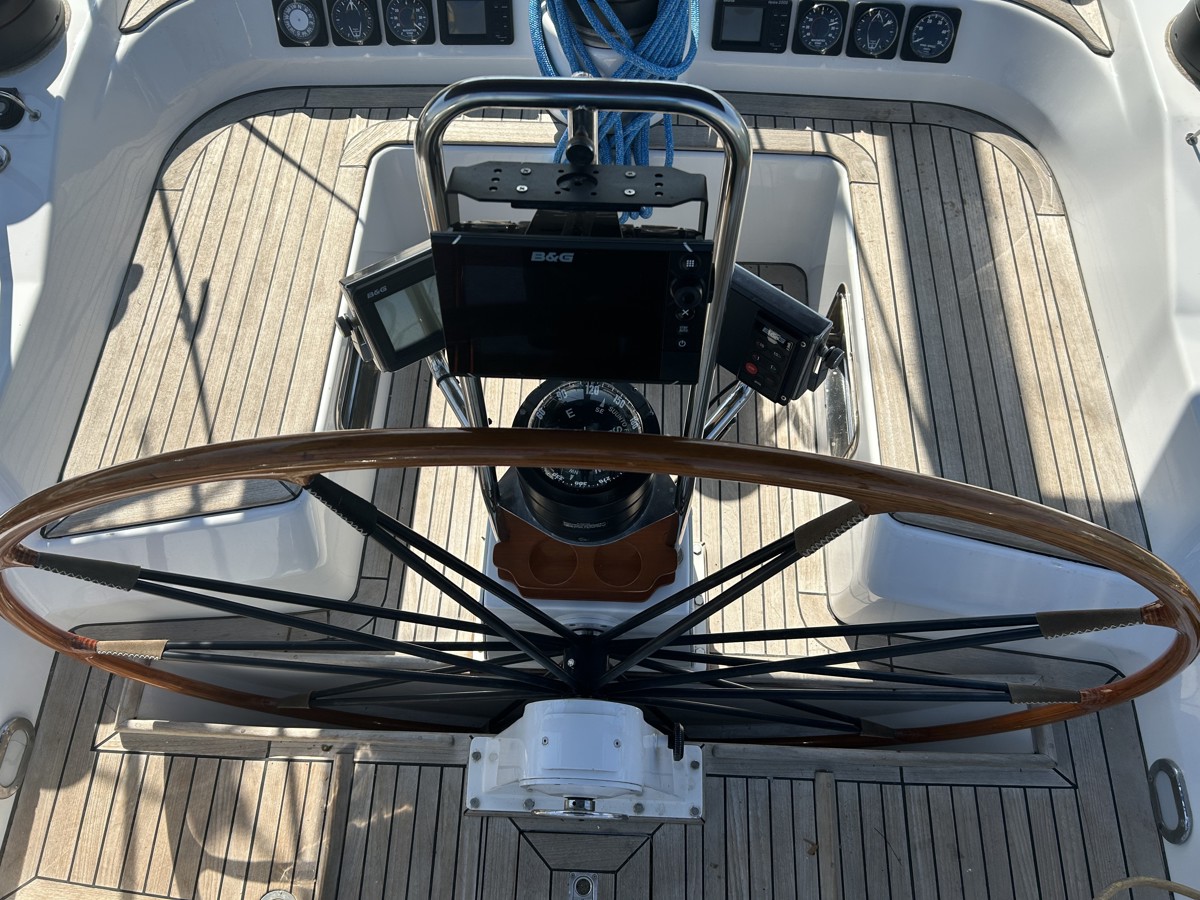

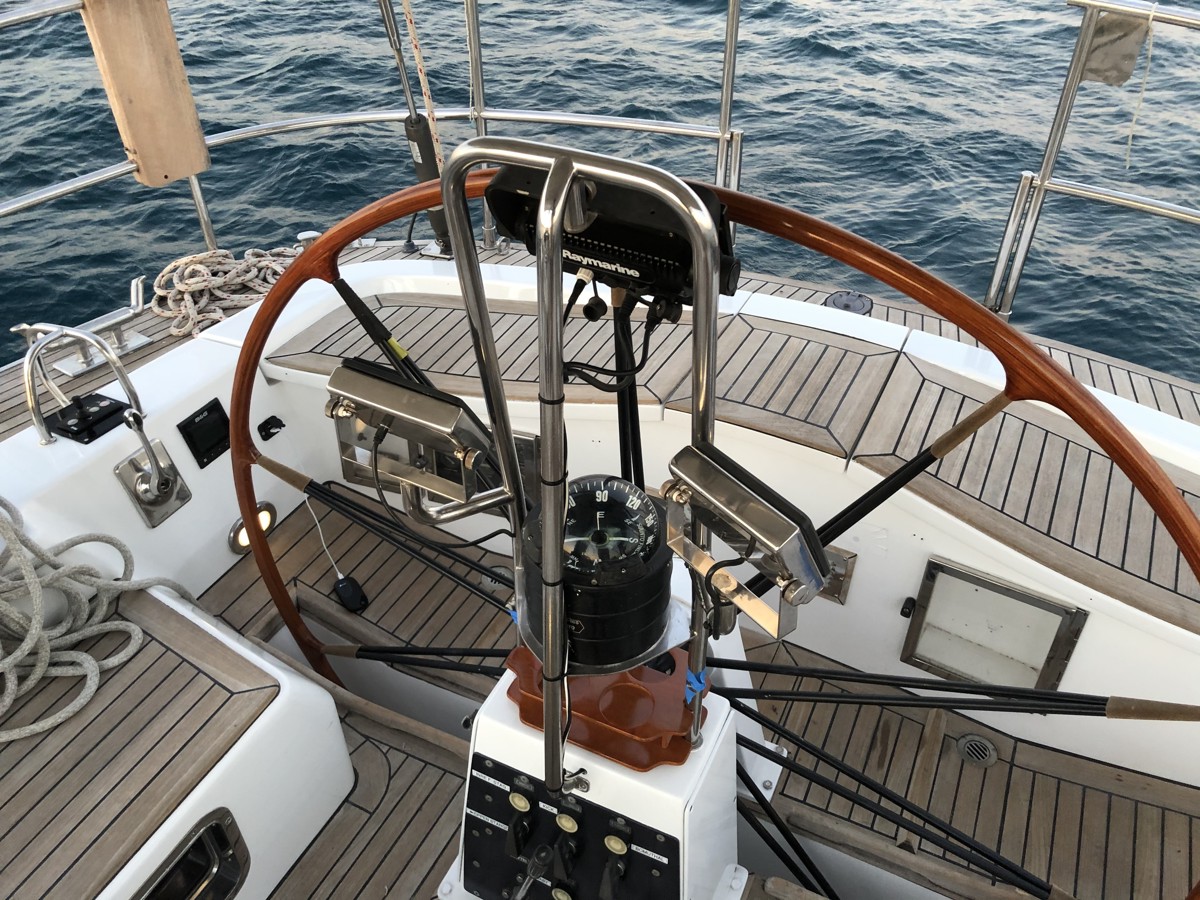

• 1x B&G Zeus2 7’’ on  steering column
• 1x B&G Triton2 digital display

•  B&G autopilot for B&G Triton system

•   B&G wind sensor, depth sensor, speed sensor, temperature sensor

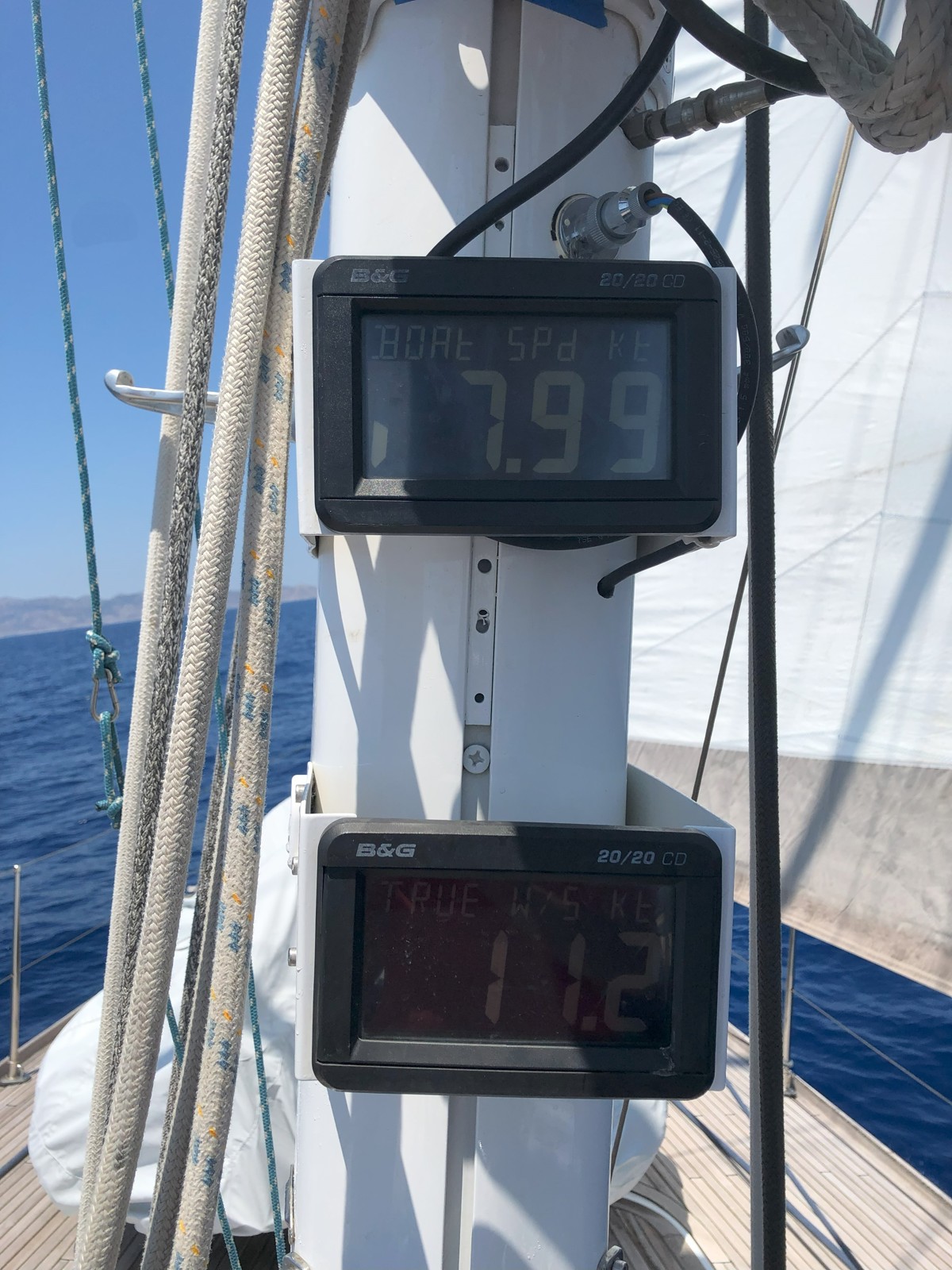

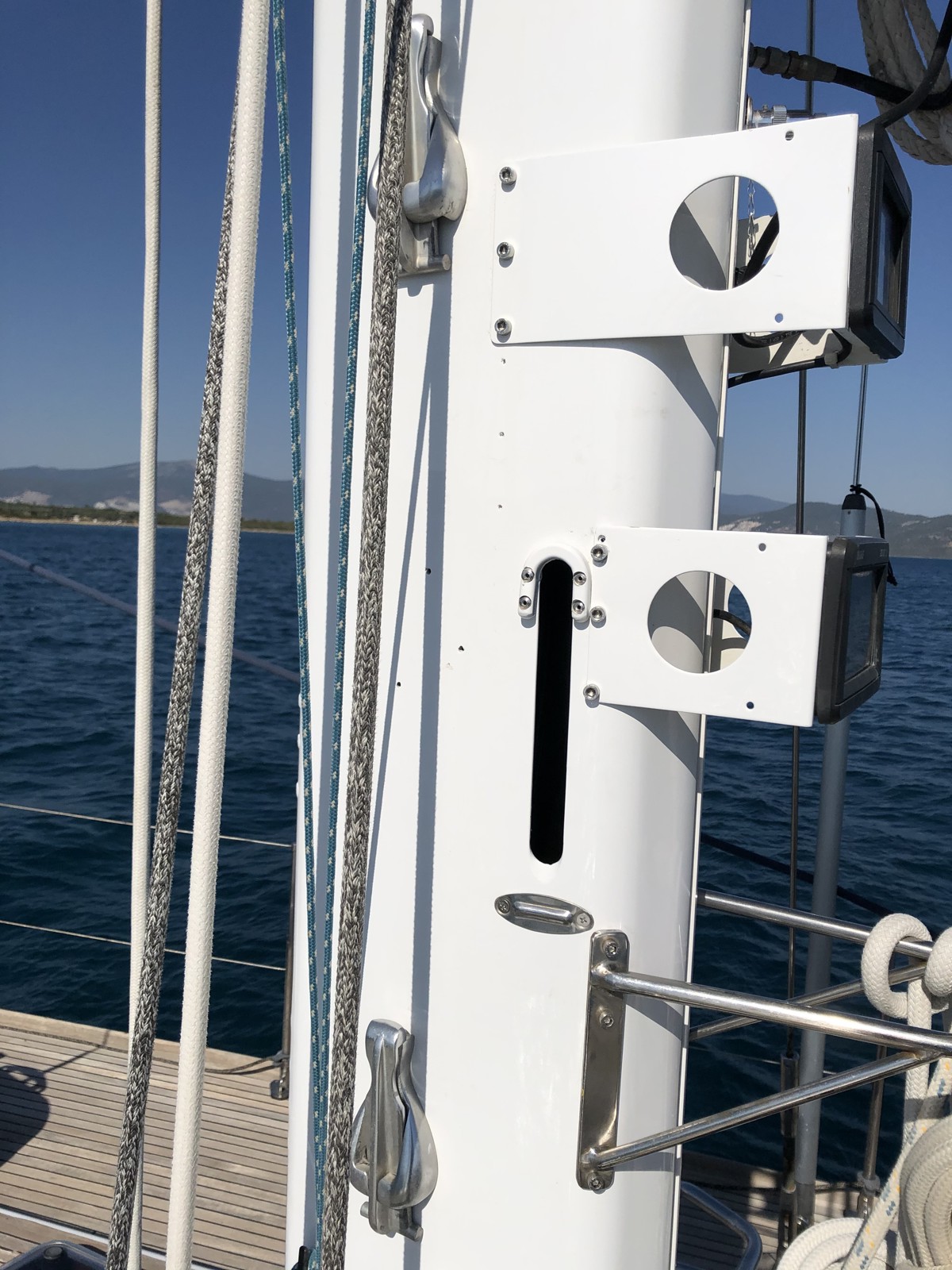

•   2x B&G 20/20 displays located on mast bracket

•  Approximately 10 B&G Hydra digital and analog displays

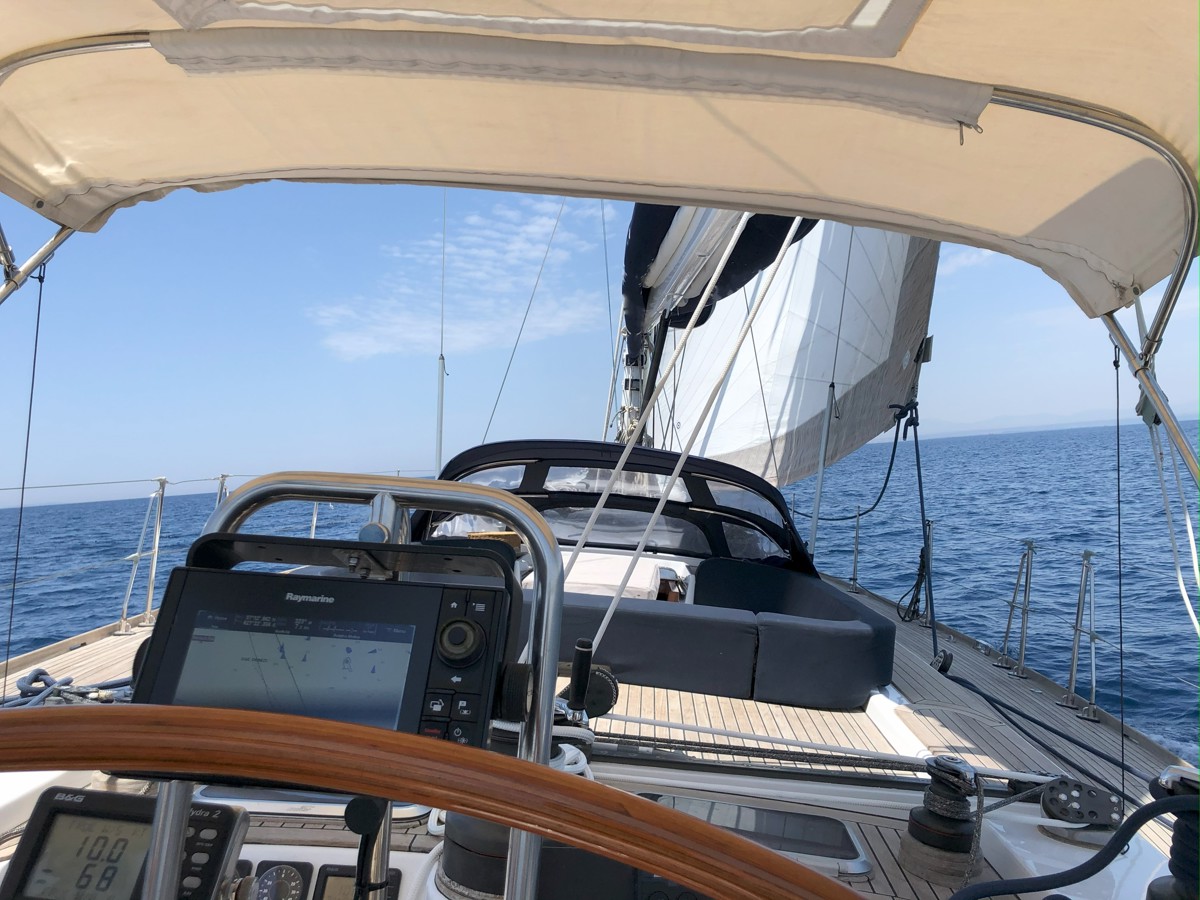

•   Raymarine Chart plotter from c. 2016 as backup at chart table

•  B&G GPS antenna

• B&G V20-S VHF radio

• Icom VHF M330 (?) as backup

• Raymarine class B transceiver

DOMESTIC EQUIPMENT

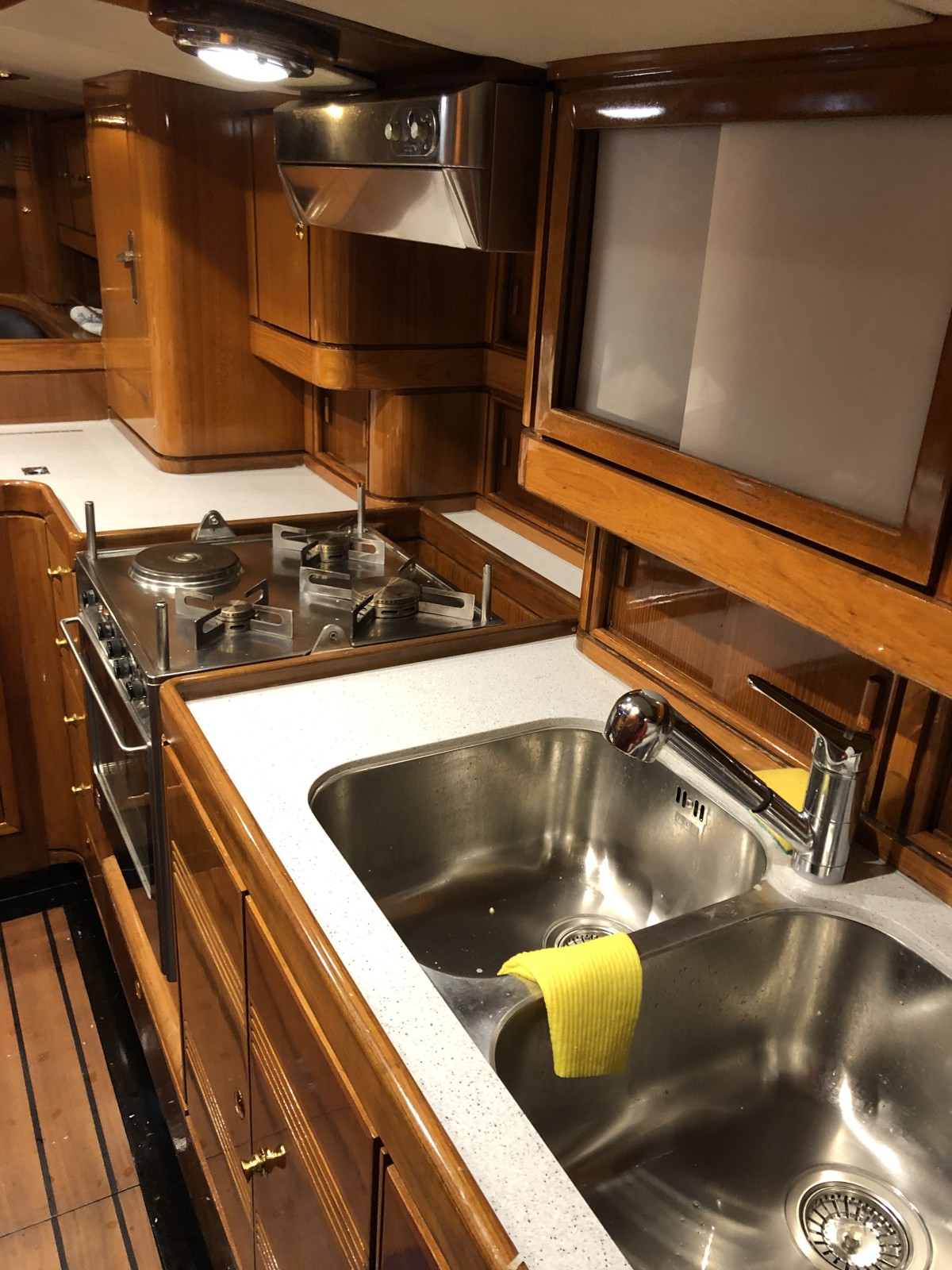

Galley:
• Gas stove by Alpes

• Corian-like counter tops (new in 2021) Stainless steel sink (new in 2021)
• 2 large fridges / 1 freezer/fridge

Heads:
• 3 Large electric heads
• Hot & cold pressurised showers in heads
• New countertops and taps in bath rooms 2023

Lighting:
• Led lighting throughout

Heating & Ventilation:
• Webasto blue cool S-Series air conditioning system with control panels in each cabin
• 27.000 BTU/h
• Seawater circuit with pump for cooling-off the units
• Air conditioning is running out of the generator when not at dock

DECK EQUIPMENT & Rigging

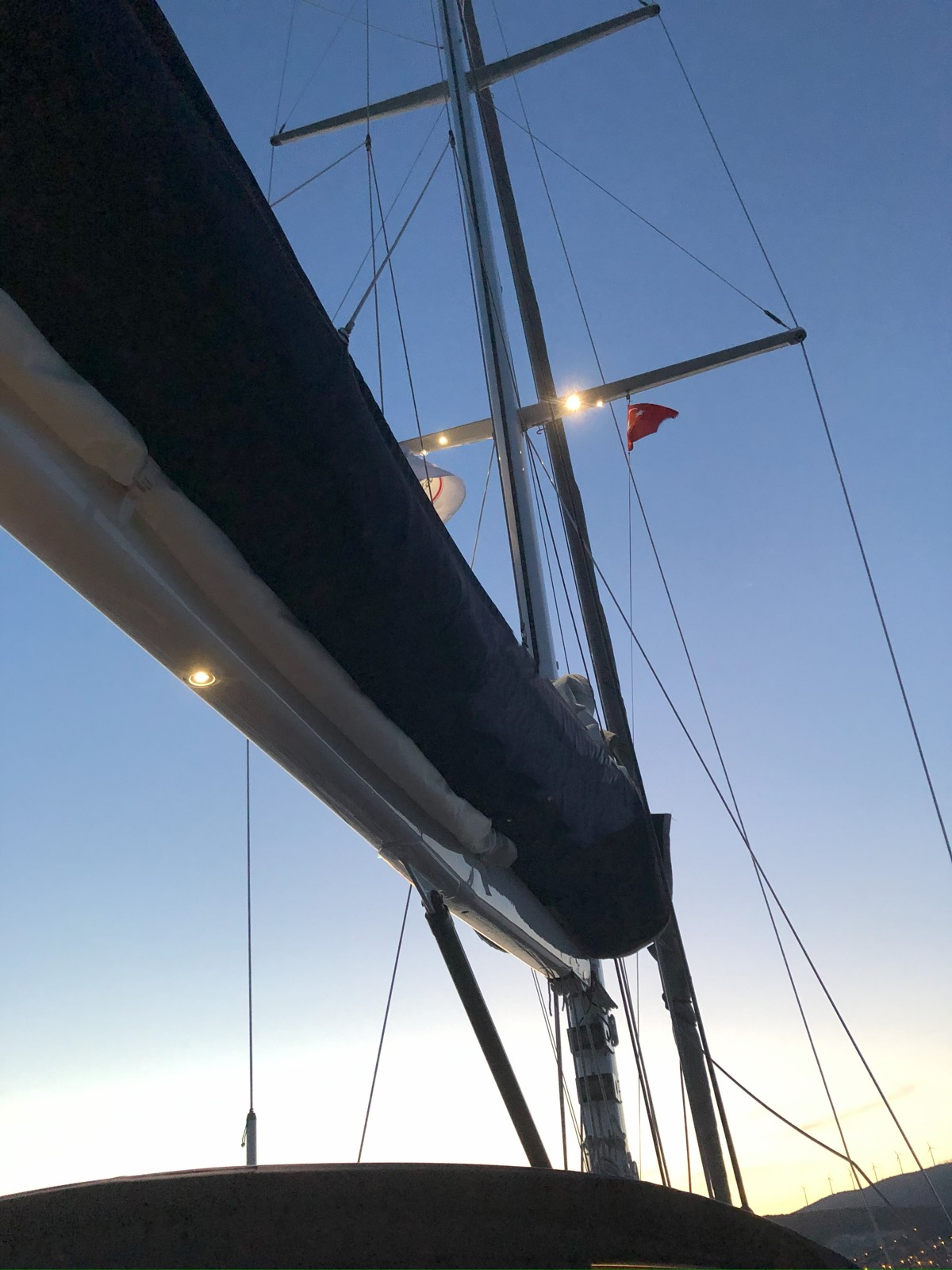

• Cariboni 4 x spreader aluminum mast (painted white 2021)
• Cariboni aluminum boom (painted white 2021)
• Navtec hydraulic system for outhaul, vang, backstay, and jib stay. Hydraulic pump in cockpit.
• Stainless steel Nitronic rod standing rigging, rods replaced in 2021 by A-Plus rigging
• Reckmann RF 90-3 hydraulic furler
• Lazy jacks

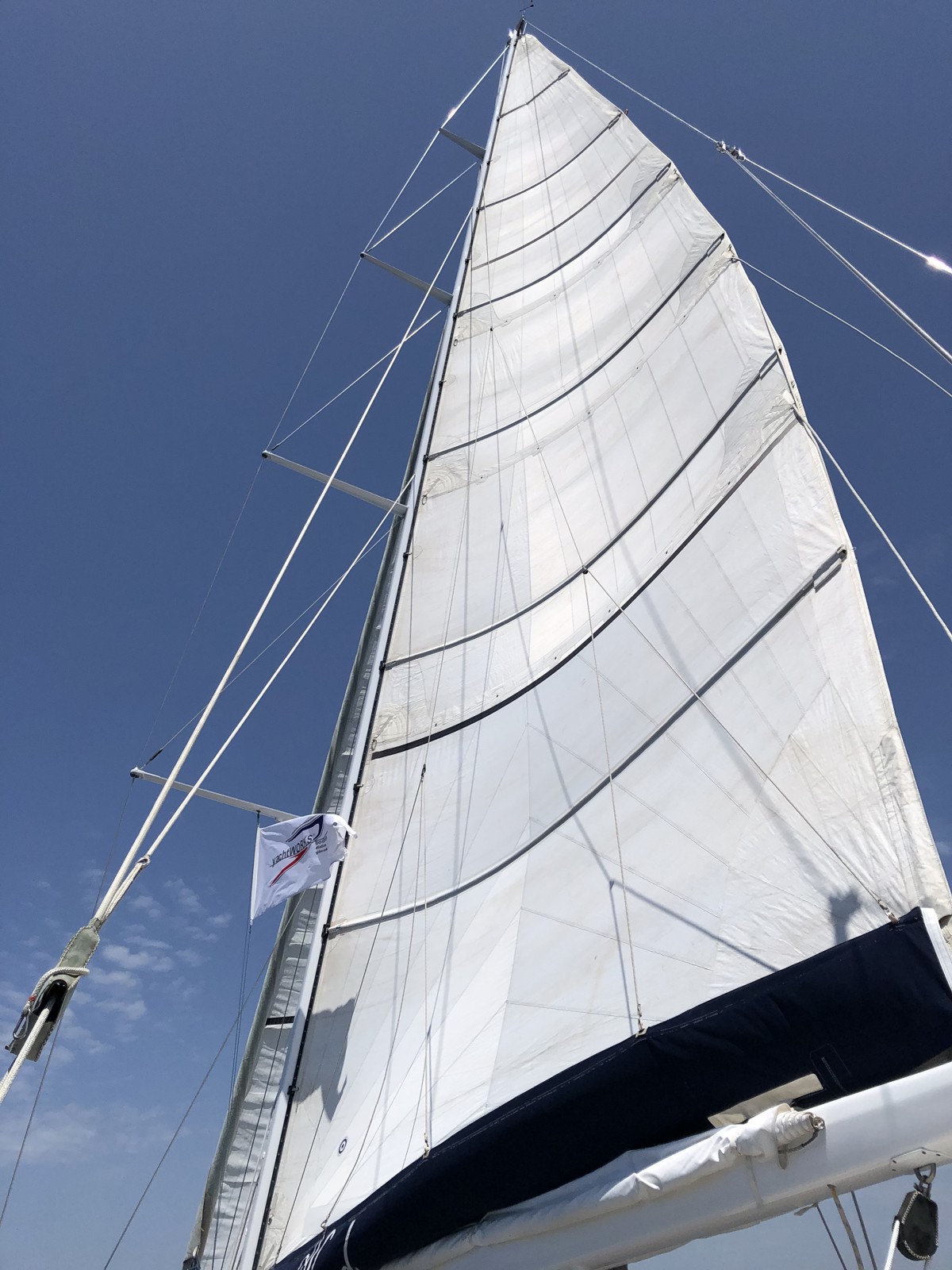

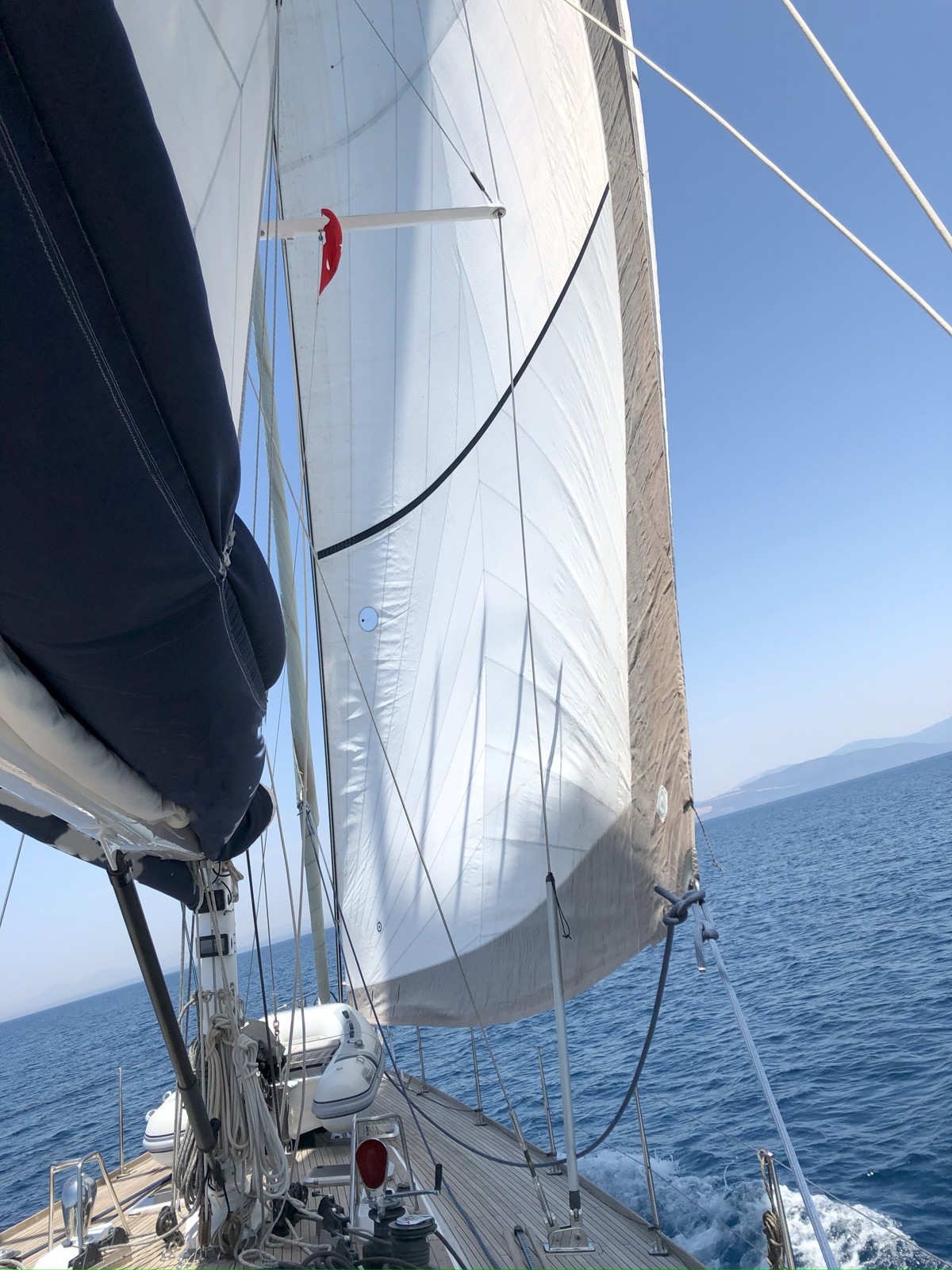

• Fully battened mainsail by Neil Pryde / 2016
• Genos by Neil Pryde / 2016
• Jib by North sails on manual furler

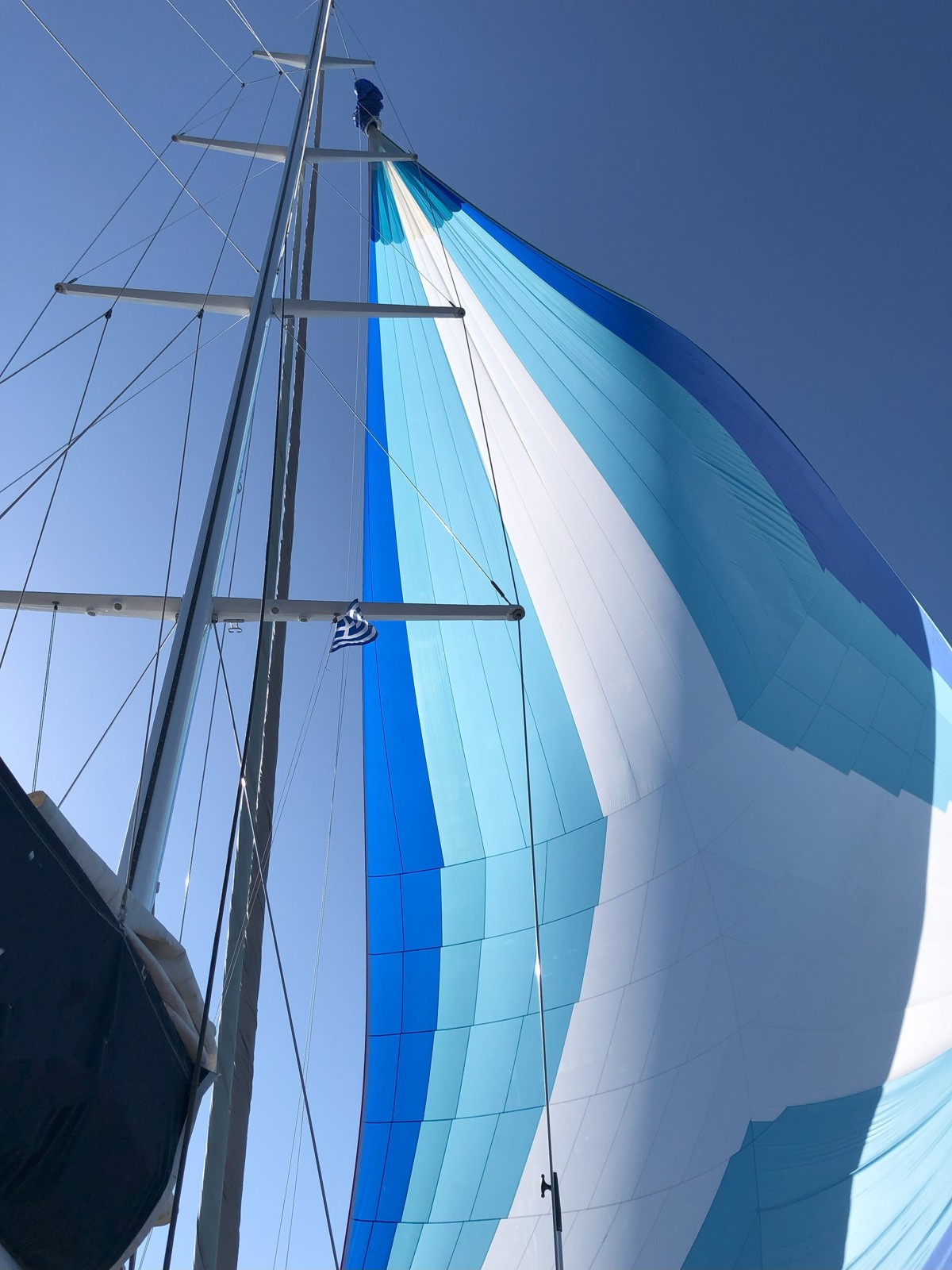

• Gernnaker on stainless steel bow spirit.

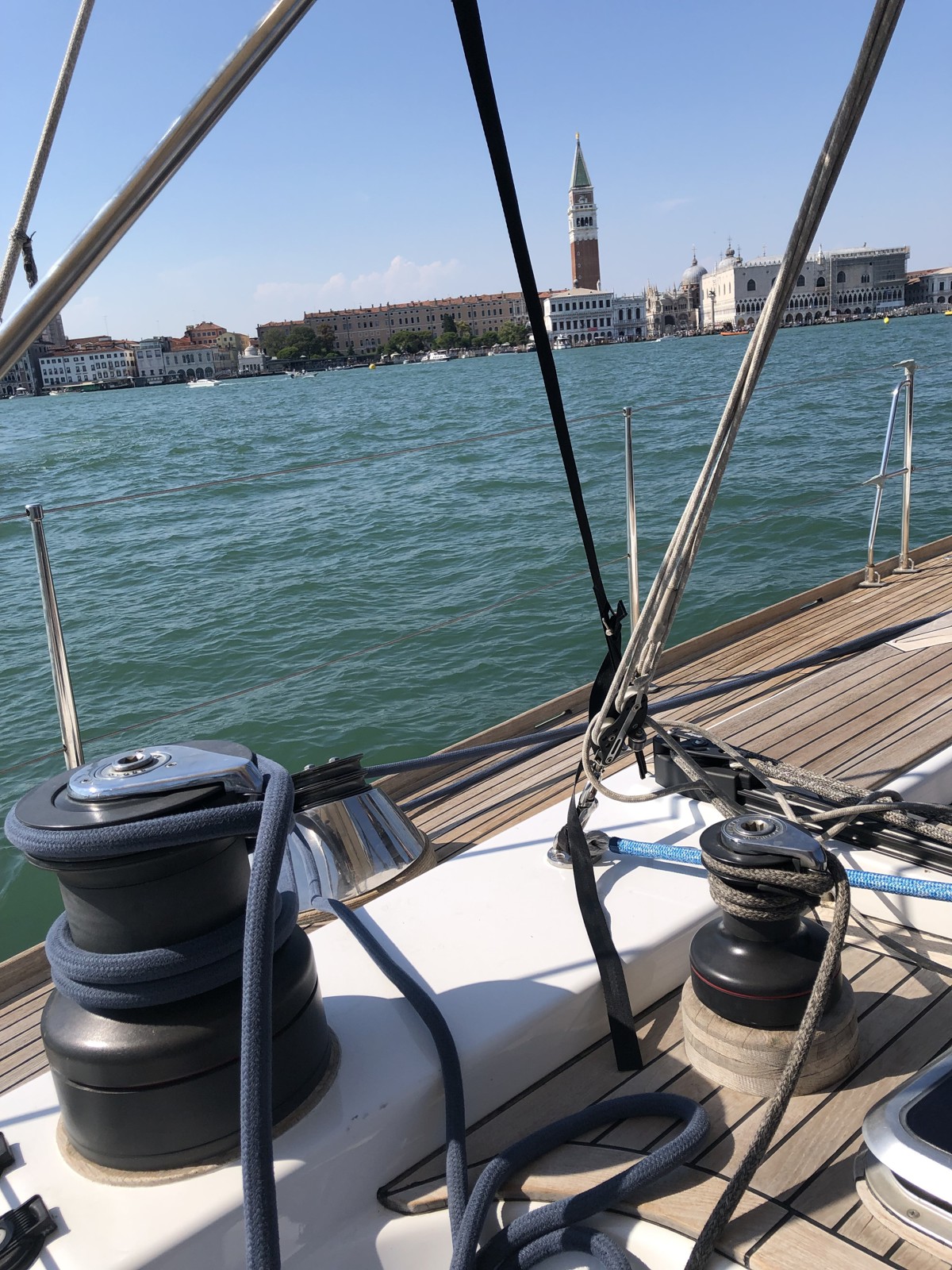

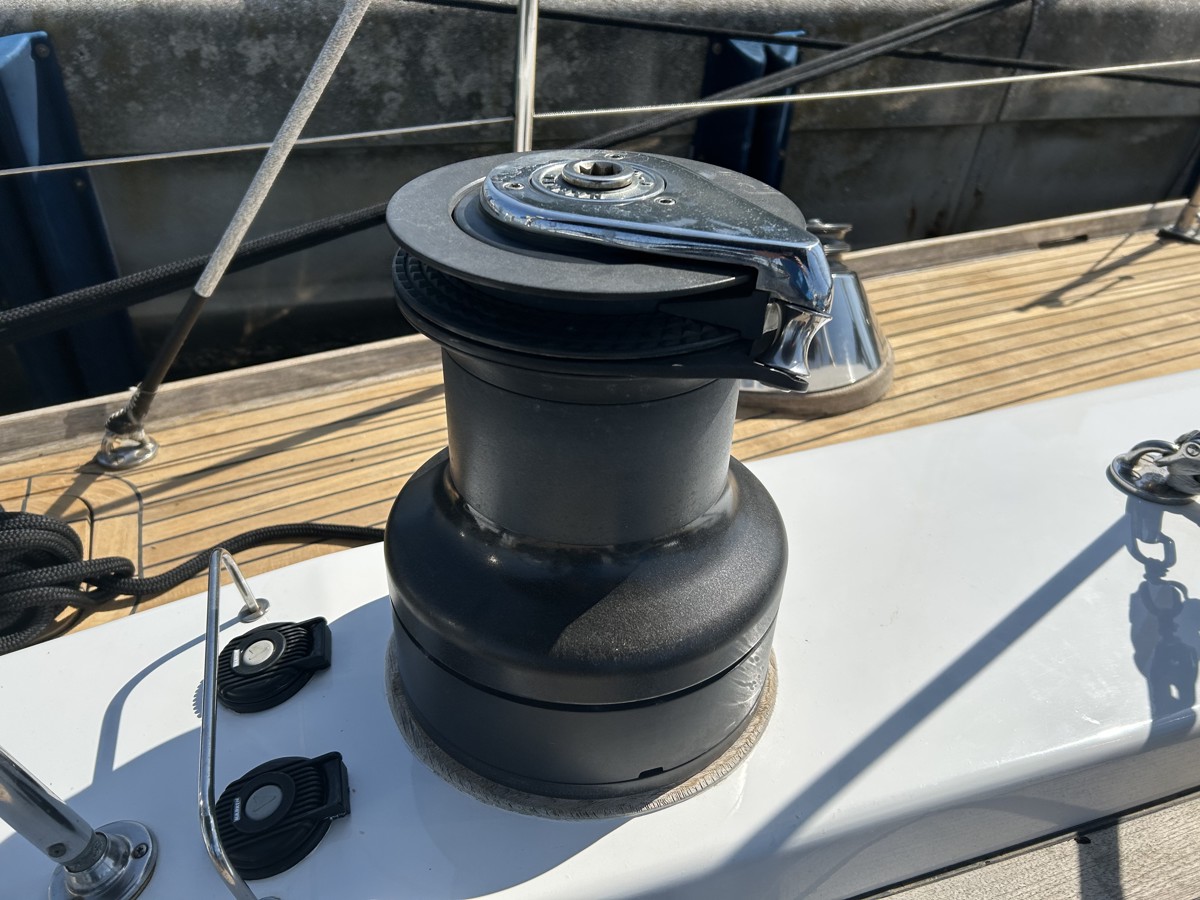

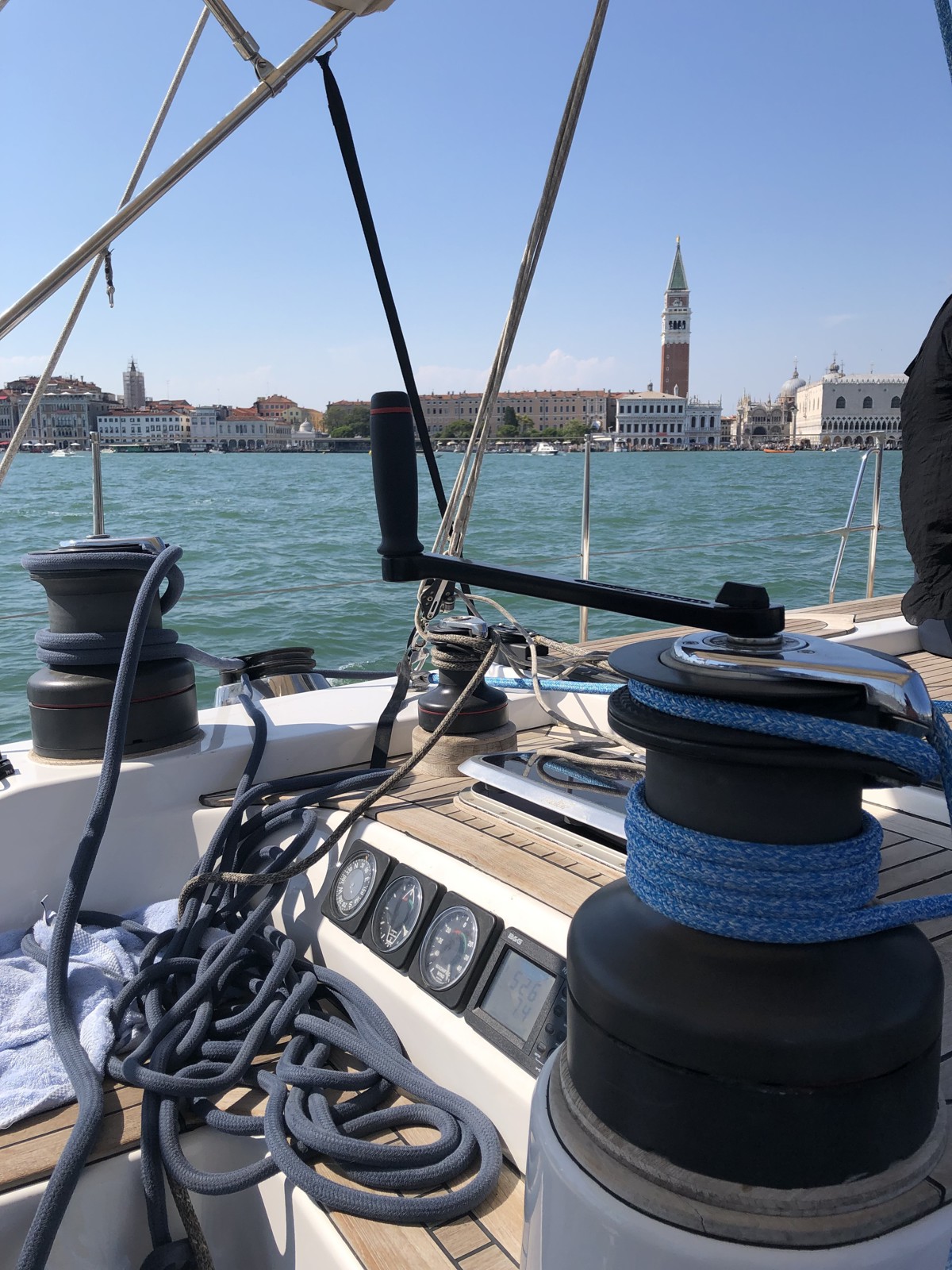

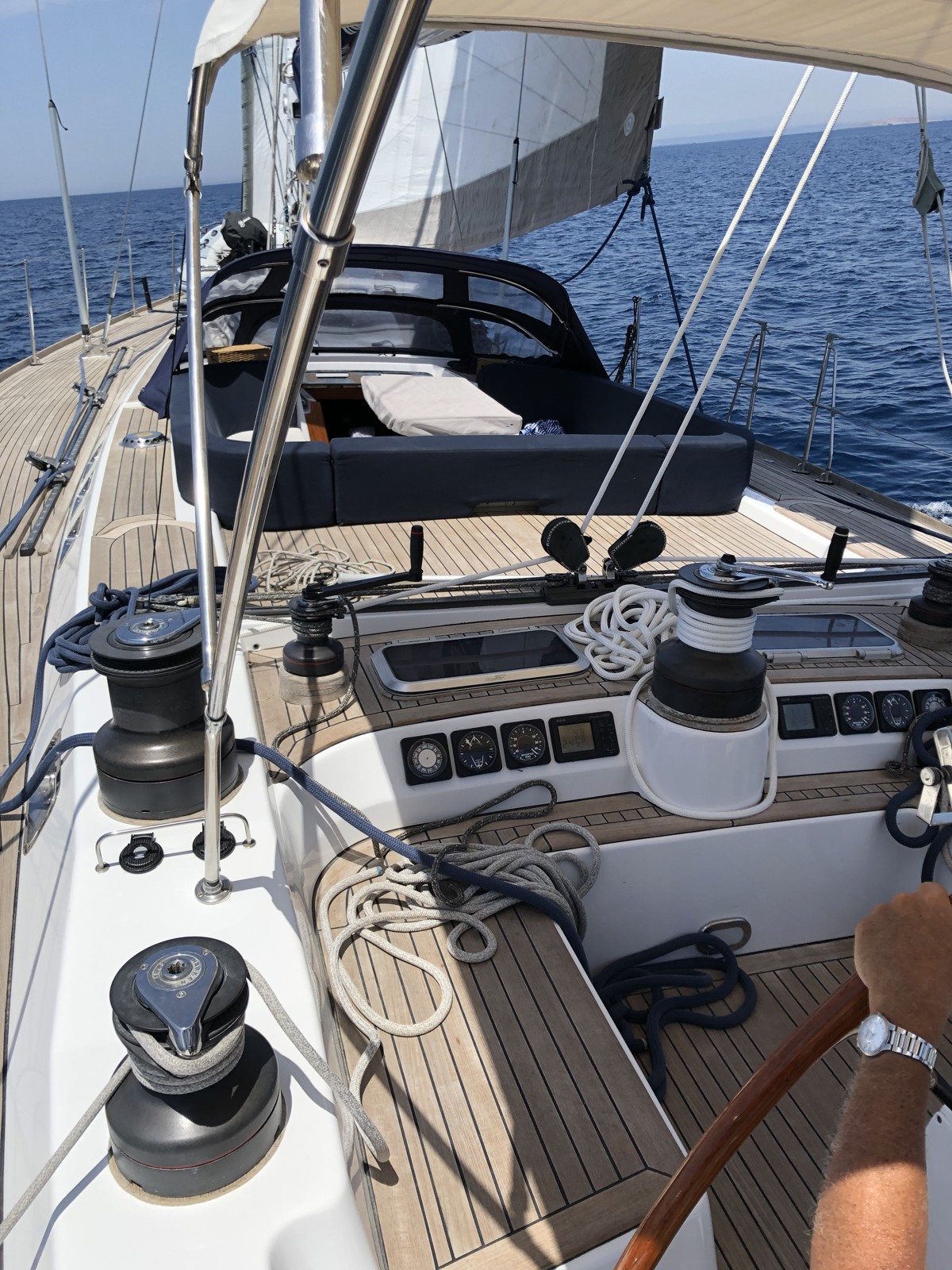

Winches:

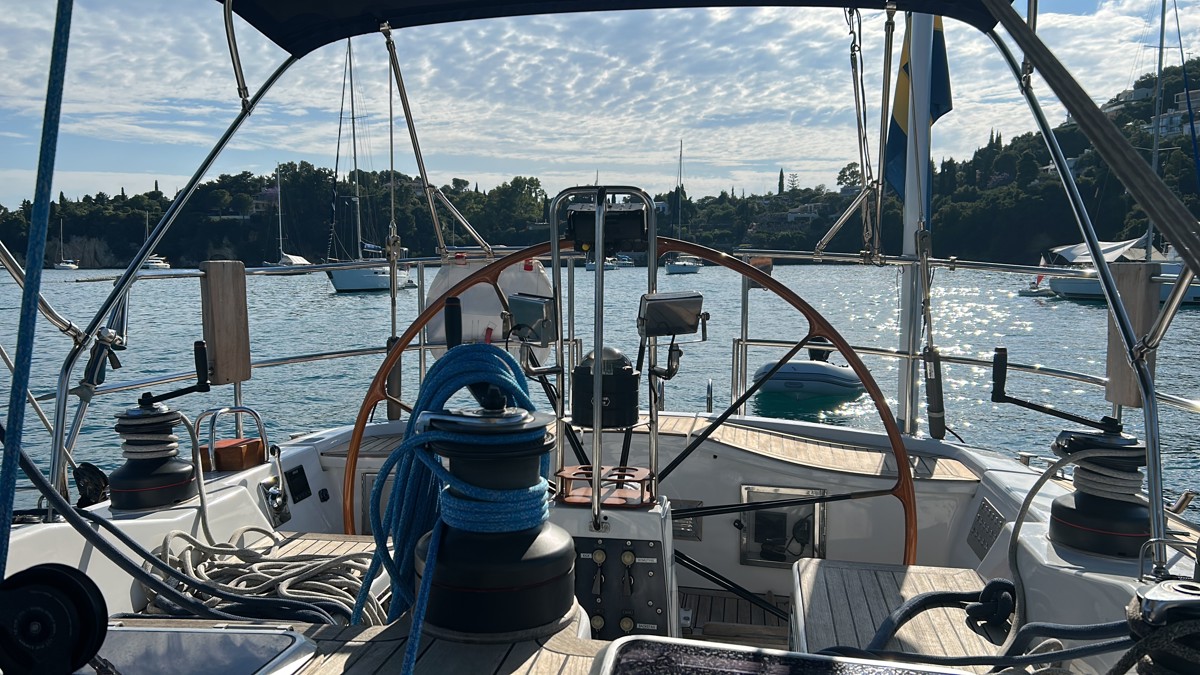

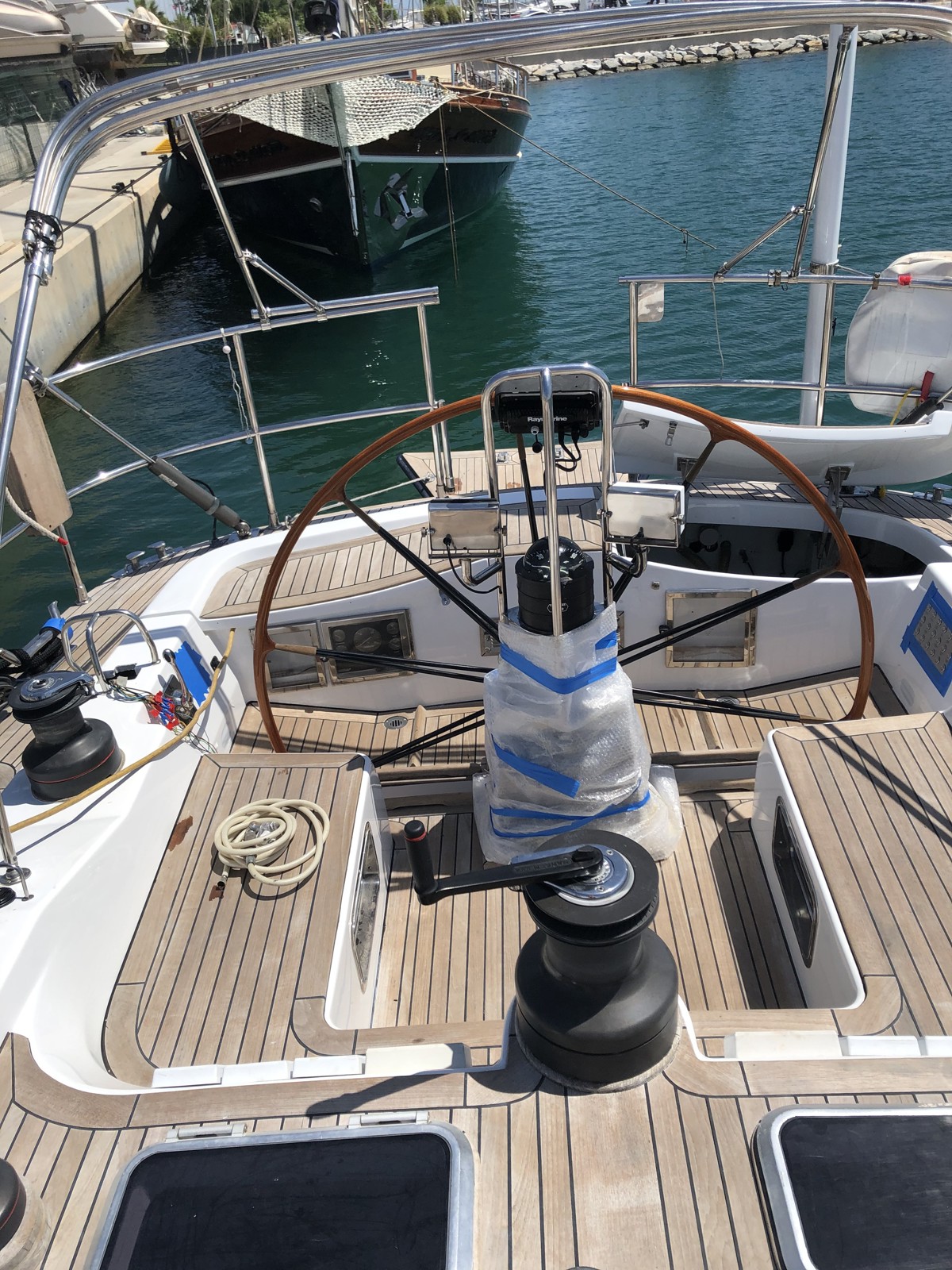

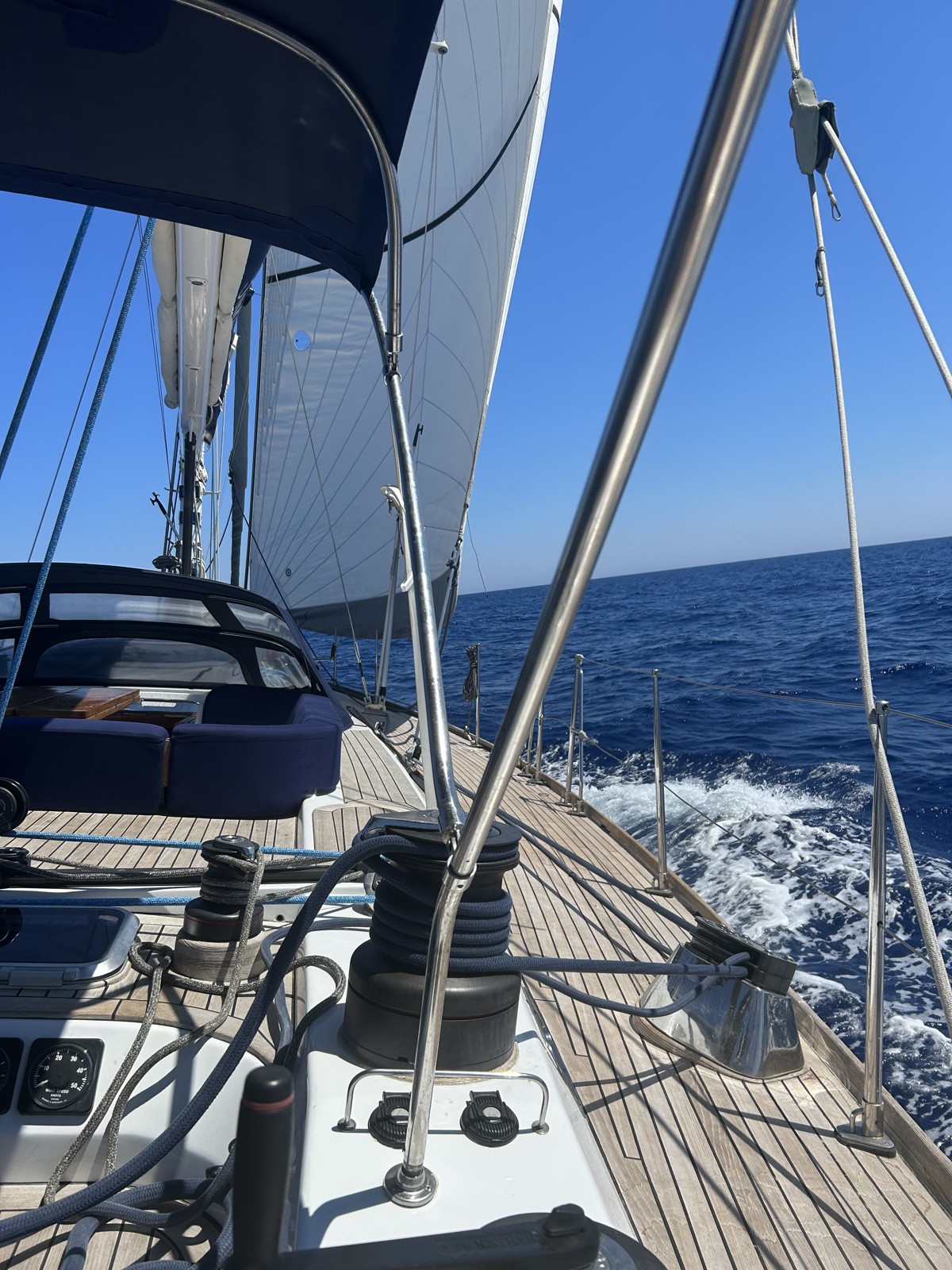

• 13 winches by Harken, 4 are hydraulic (two primaries in cockpit, two halyard winches at mast). Sizes: 980, 66, 64, 56, 44

General:
• Stainless steel pushpit, pulpit and guardrail
• Tender stivage on foredeck with straps
• Hot and cold transom shower

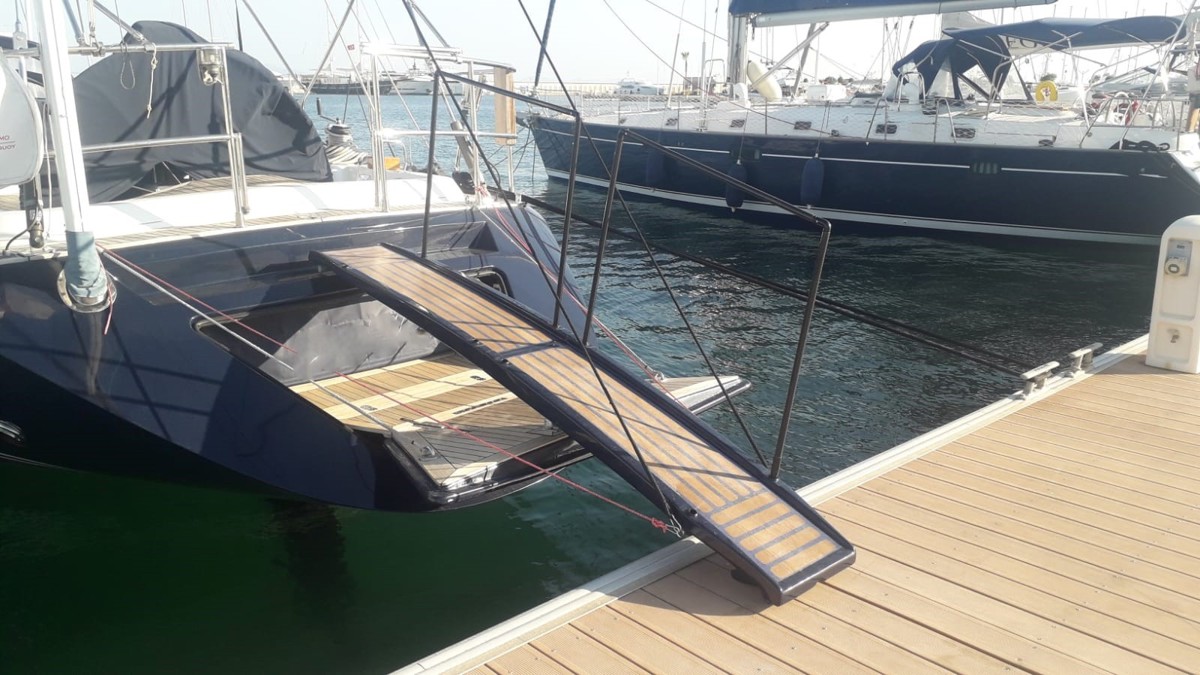

• Carbon fibre passarelle
• Boom LED lights

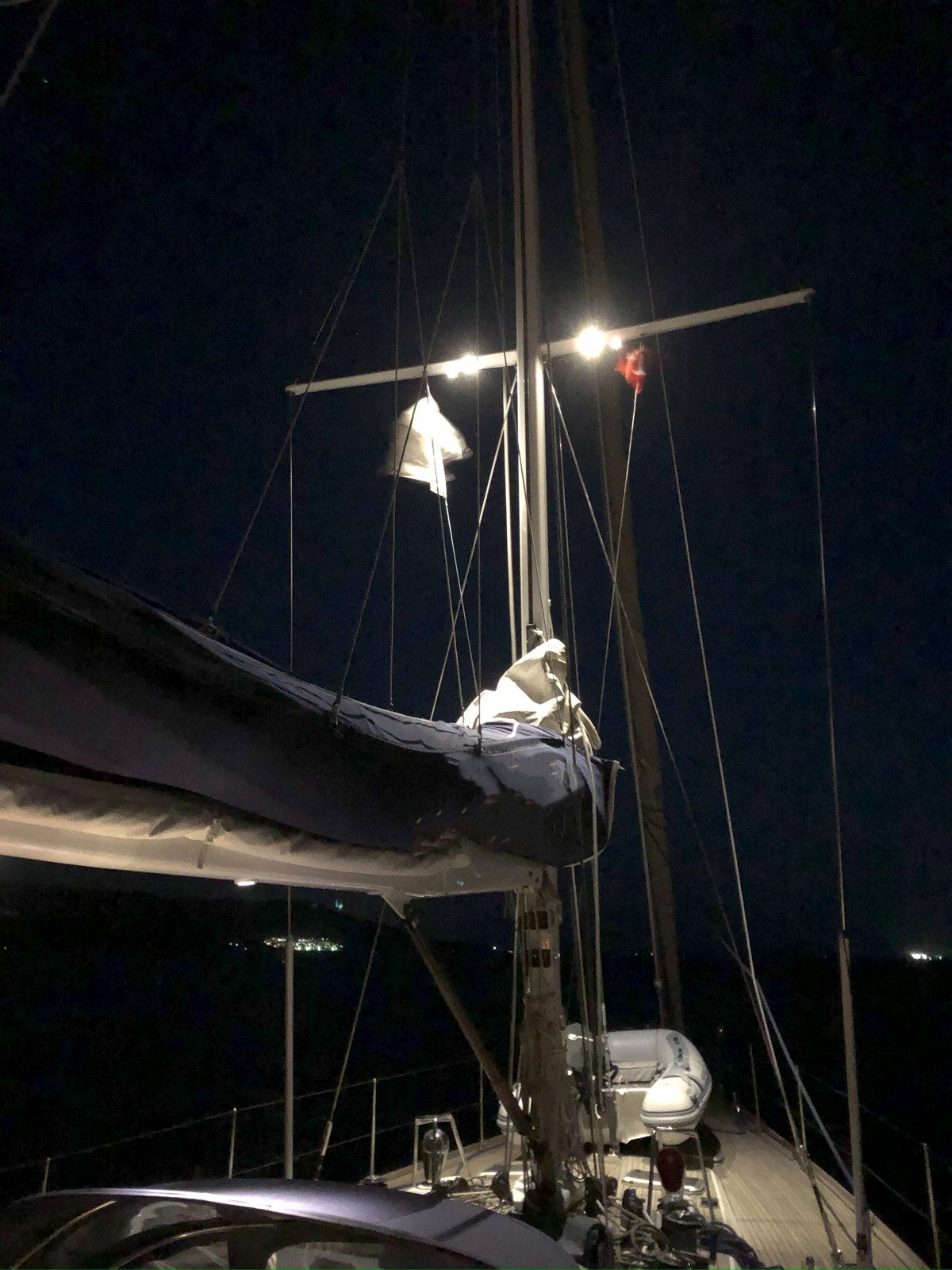

• Spreader deck LED lights

Anchoring & Mooring:
• Quick 1800w 24vDC windlass
• 40kgs Lewmar delta galvanized steel anchor
• 90m steel chain (galvanized in 2021).

Covers, Cushions & Canvas:

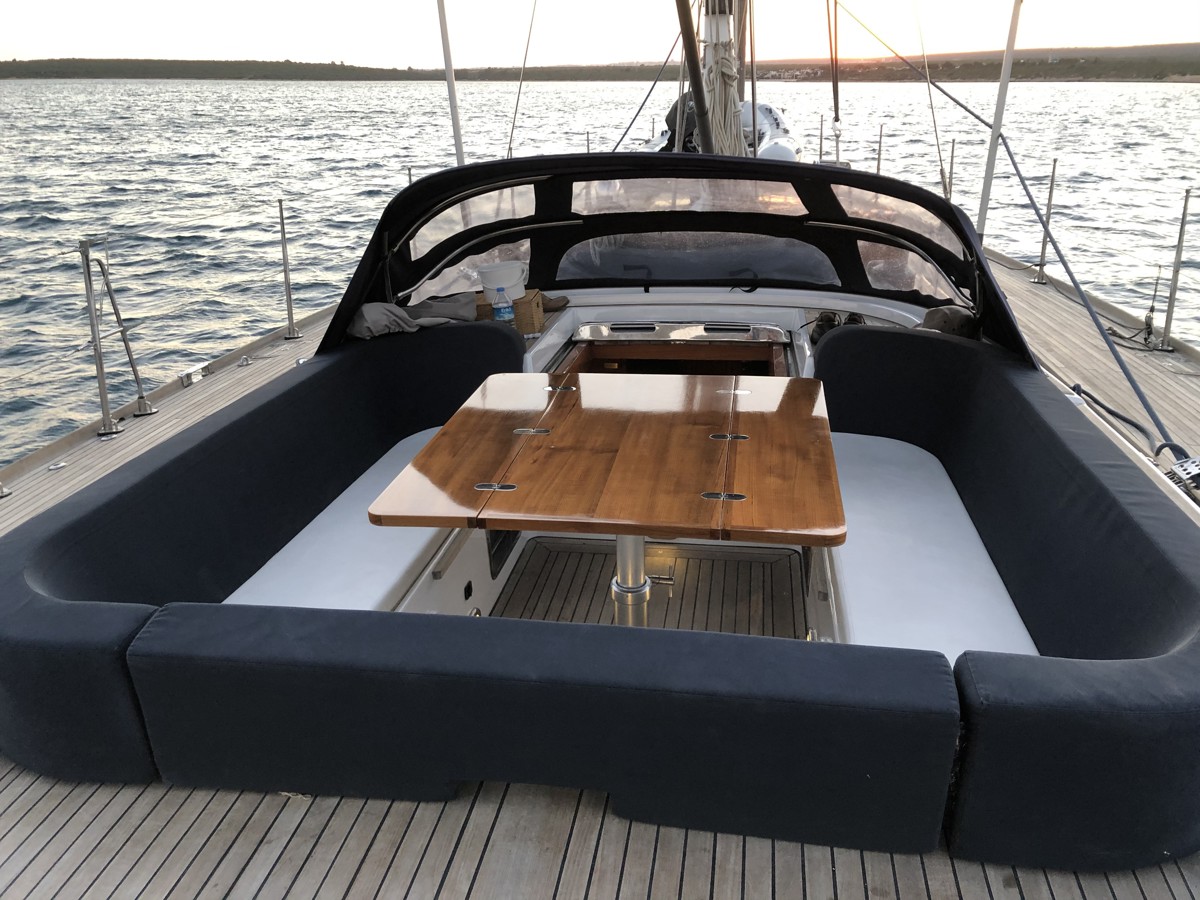

• Cockpit cushions with backrests, Sunbrella material, new in 2023
• Canvas for cockpit table and steering wheel

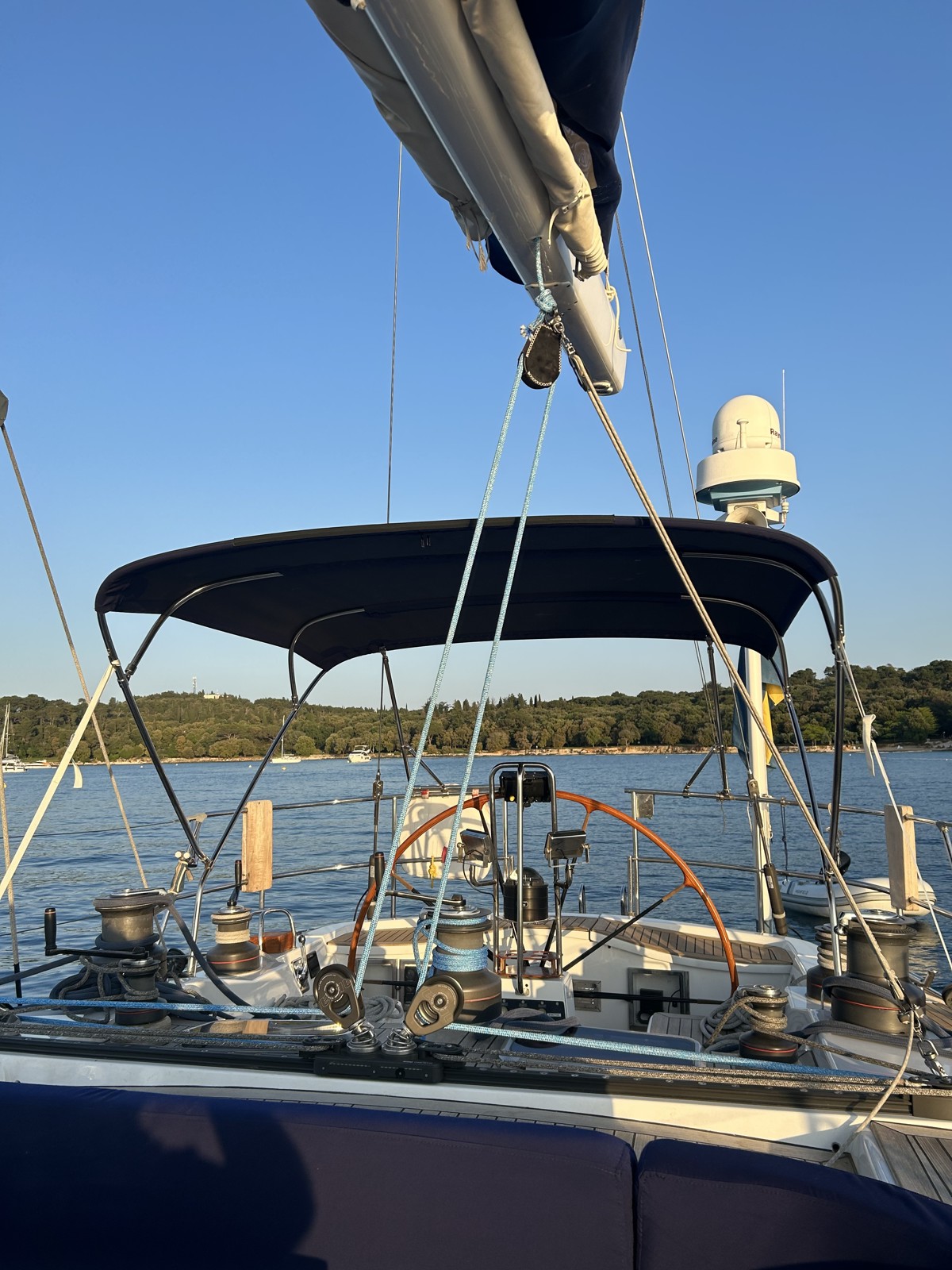

• Bimini over forward end of cockpit, Sunbrella material, new in 2023
• Foldable sprayhood, new in 2020.

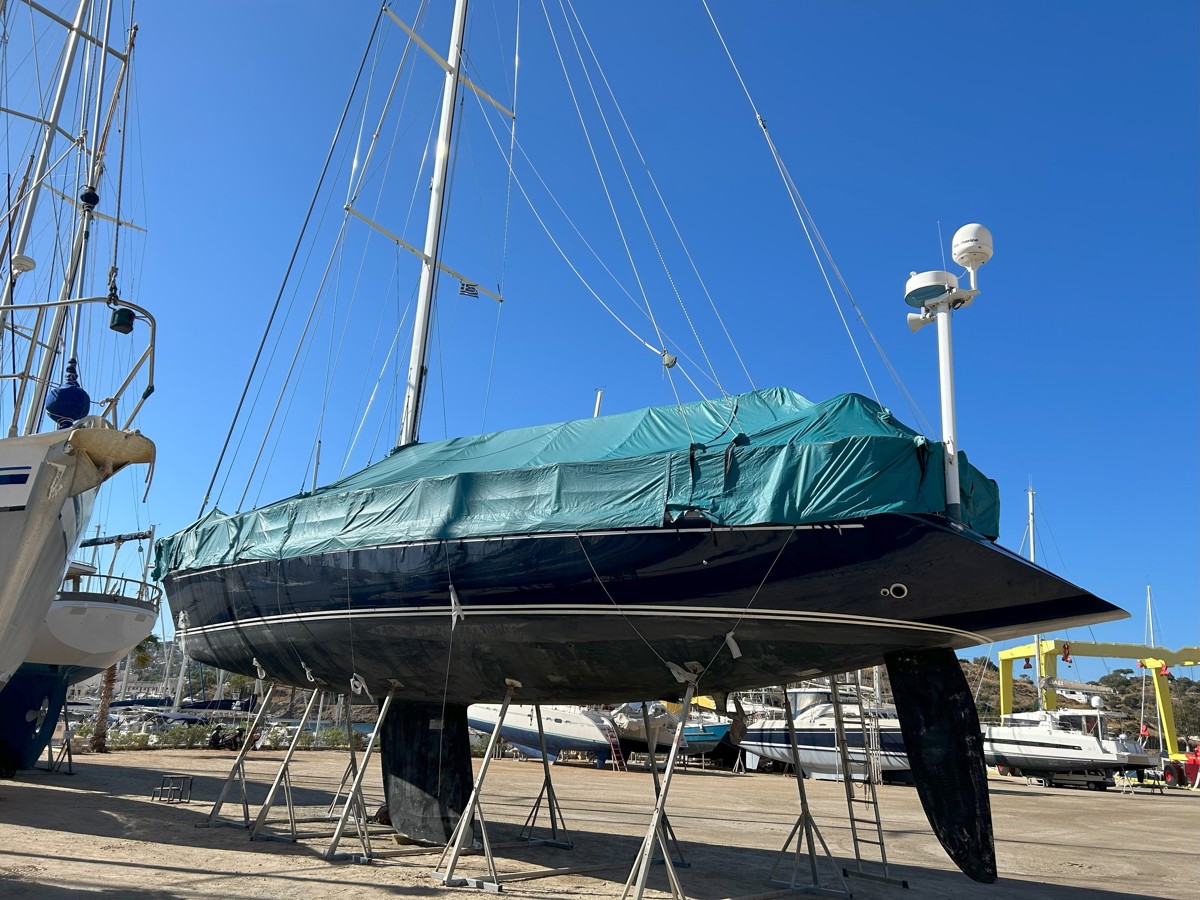

• Winter cover, new in 2021.

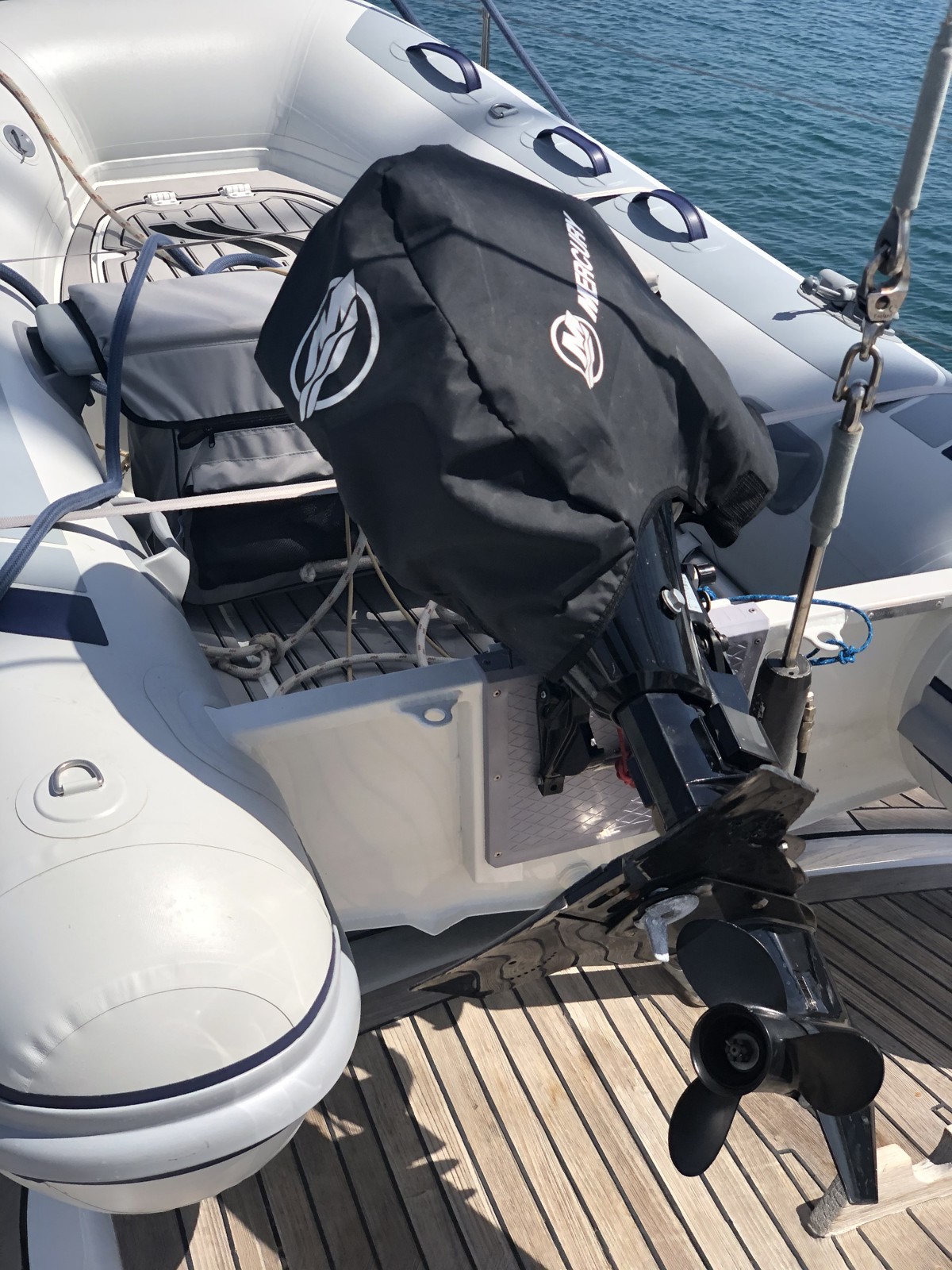

Tender & Outboard:
• Highfield 270cm Classic aluminum tender
• Mercury 9.9 hp outboard engine, c. 2018

SAFETY EQUIPMENT:

• Epirb

• 2x 6 pers liferafts

• Multiple fire extinguishers
•  Fire blanket in the galley
